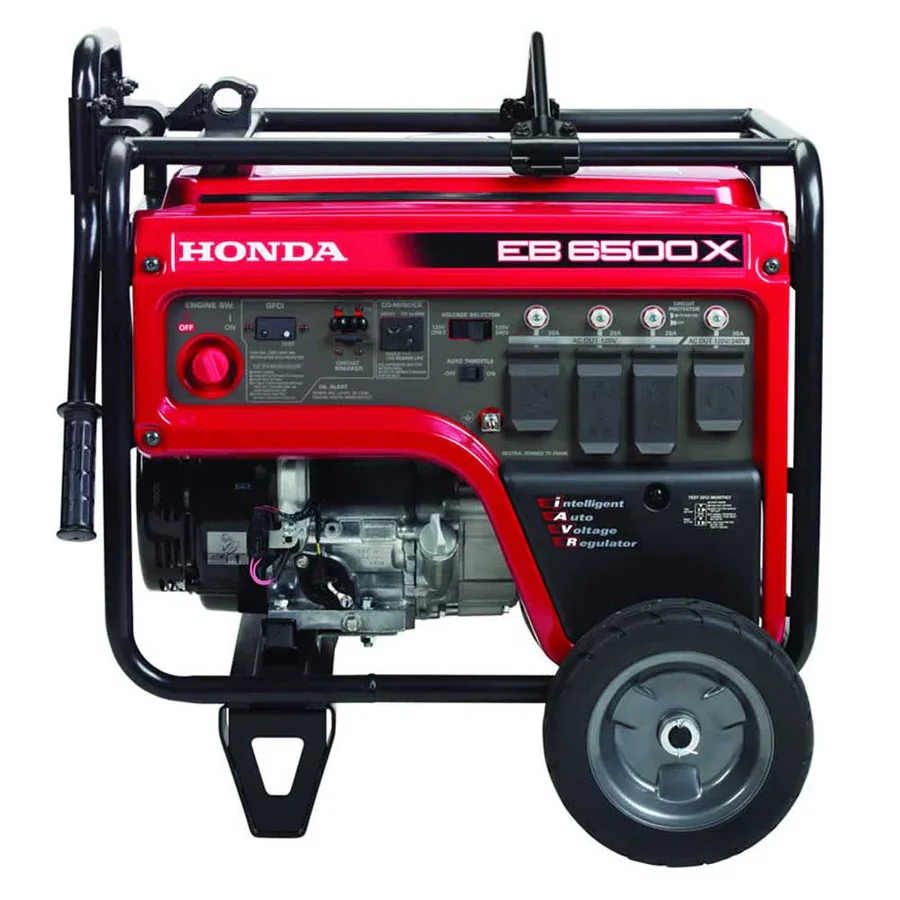

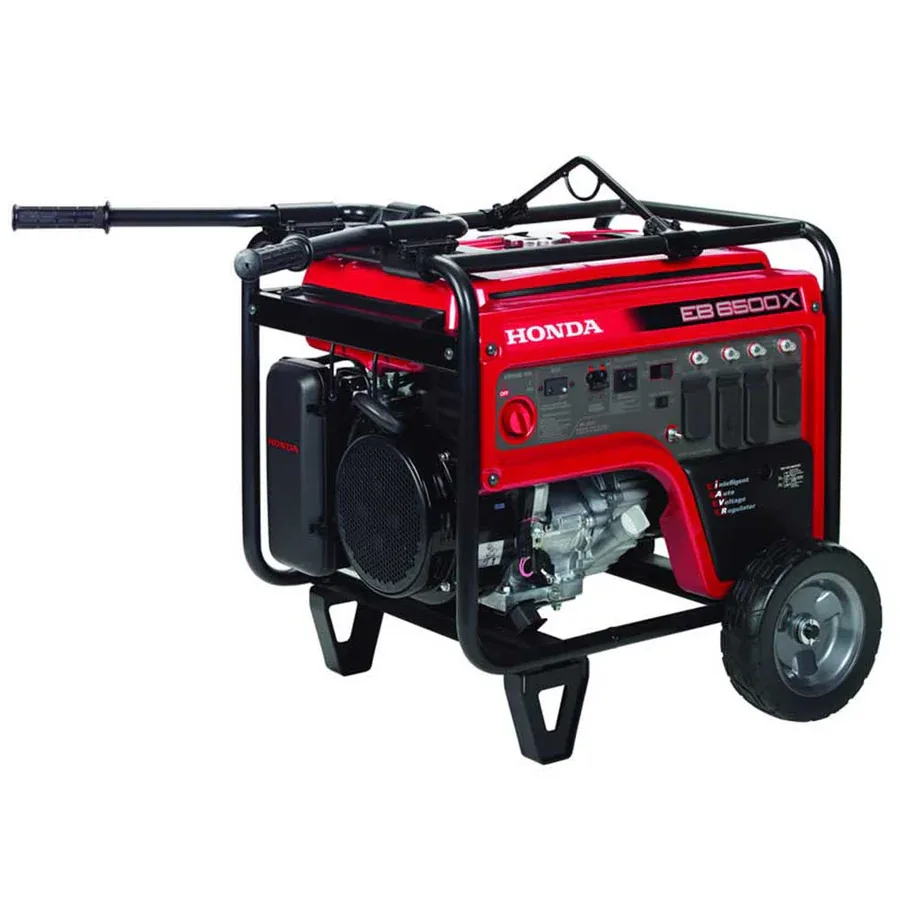

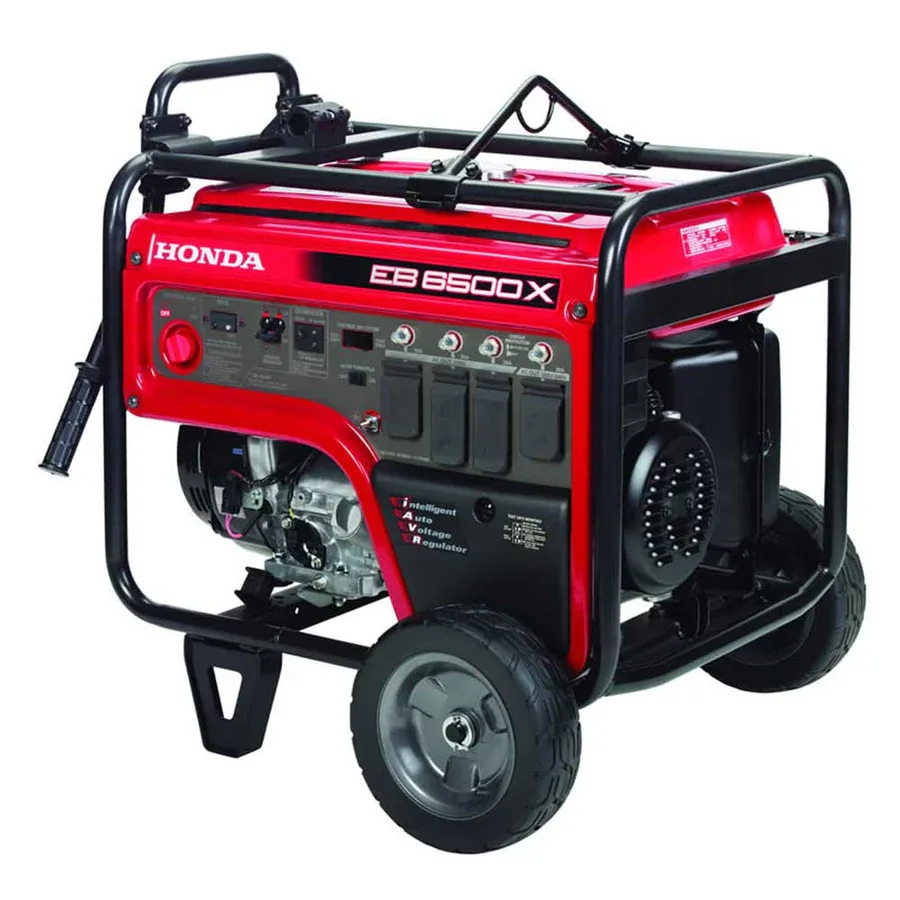

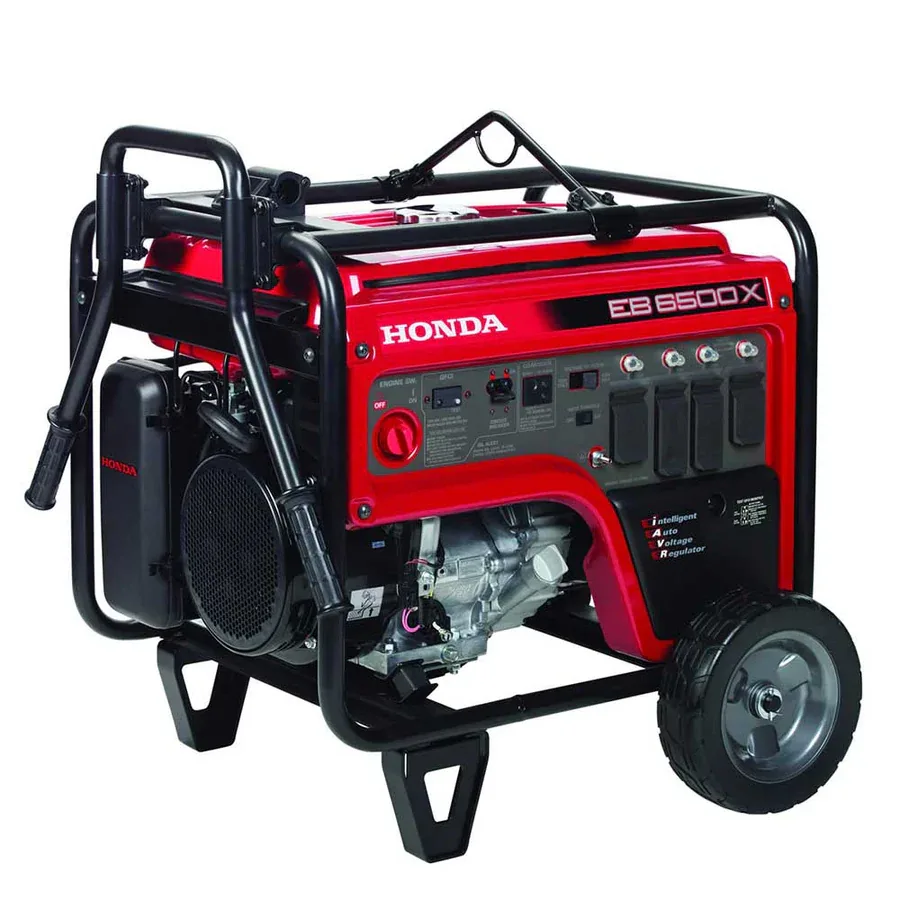

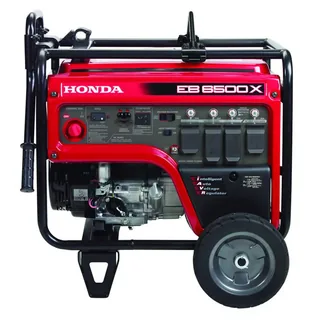

Honda EB6500X 6500W Peak Portable Generator

Seeking OSHA-compliant jobsite electrical distribution? The Honda EB6500X Industrial Portable Generator delivers rugged power with intelligent automatic voltage regulation for commercial food trucks and construction crews. Delivering 7000 surge watts for ten seconds and 5500 running watts on gasoline, this 120V and 240V generator energizes heavy food warming cabinets, meat slicers, and exhaust fans during grid collapses.

A heavy-gauge 1.25-inch tubular steel cradle houses the commercial-grade 389cc Honda GX390 OHV engine, engineered with a cast-iron cylinder sleeve for exceptional durability. All-copper alternator windings maximize thermal resilience under full continuous electrical loads. Equipped with a 6.2-gallon steel fuel tank, the 219-lb dry weight generator features exterior dimensions measuring 41.4 inches long by 27.8 inches wide by 28.3 inches high.

Key Features of Honda EB6500X

Contractors who buy Honda EB6500X industrial portable generator units obtain heavy-duty commercial power equipment designed for rugged jobsite environments. Honda iAVR technology supplies up to 7000 watts for ten seconds to start high-torque refrigeration compressors without voltage sags.

- 7000 peak surge watts for ten seconds handle severe motor inrush currents from large commercial coolers.
- 5500 continuous running watts sustain multiple food preparation tables, warmers, and register networks.
- iAVR intelligent automatic voltage regulation maintains steady line voltage under extreme inductive surges.
- Full GFCI protection across all 120V outlets meets strict OSHA jobsite safety regulations in wet work areas.
- EB6500X commercial GX390 engine incorporates a cast-iron cylinder liner for thousands of operating hours.
- 30A NEMA L14-30R locking outlet delivers 120V and 240V power to food trailer transfer switch boxes.
- Two-wheel transport kit with folding handles allows easy transit across broken jobsite pavement.
- Low-oil Oil Alert system cuts ignition circuits before internal engine bearings suffer oil starvation.

Voltage Sag Control Acoustic Metrics

Emitting 73 dB(A) at 23 feet, this industrial open-frame generator uses an oversized muffler to reduce exhaust bark near commercial food stands. The iAVR system clamps output voltage variance within 1 percent of 120V and 240V standards at 60 Hz. Consuming 0.63 GPH at half load, it yields 9.8 continuous runtime hours per fuel tank.

Building Setback Neutral Bond Details

Position the machine outdoors on flat pavement at least 5 feet from commercial doors, windows, and ventilation louvers. The generator comes factory-wired with a bonded neutral to frame configuration that satisfies OSHA jobsite rules, requiring neutral bond disconnection when integrating with switched-neutral transfer panels.

Jobsite Maneuvering Routine Service Protocol

Rolling the 219-lb generator over gravel lots requires 28 lbs of tractive force using the balanced wheel kit and folding handles. This open-frame generator is not engineered for unventilated indoor spaces, direct rain exposure without canopy shelters, or powering sensitive digital audio mixing boards.

- Inspect engine oil levels and check fuel lines before each shift.
- Clean the dual-element foam air cleaner element every 50 runtime hours.
- Drain engine oil and install fresh 10W-30 motor oil every 100 runtime hours.

Factory Warranty Shipping Crate Items

Honda protects your investment with a 3-Year commercial warranty covering the GX390 engine, iAVR alternator, and frame assembly. The crate includes the Honda EB6500X generator core, two-wheel transport kit, folding handles, engine oil, oil funnel, and complete instruction manual.
