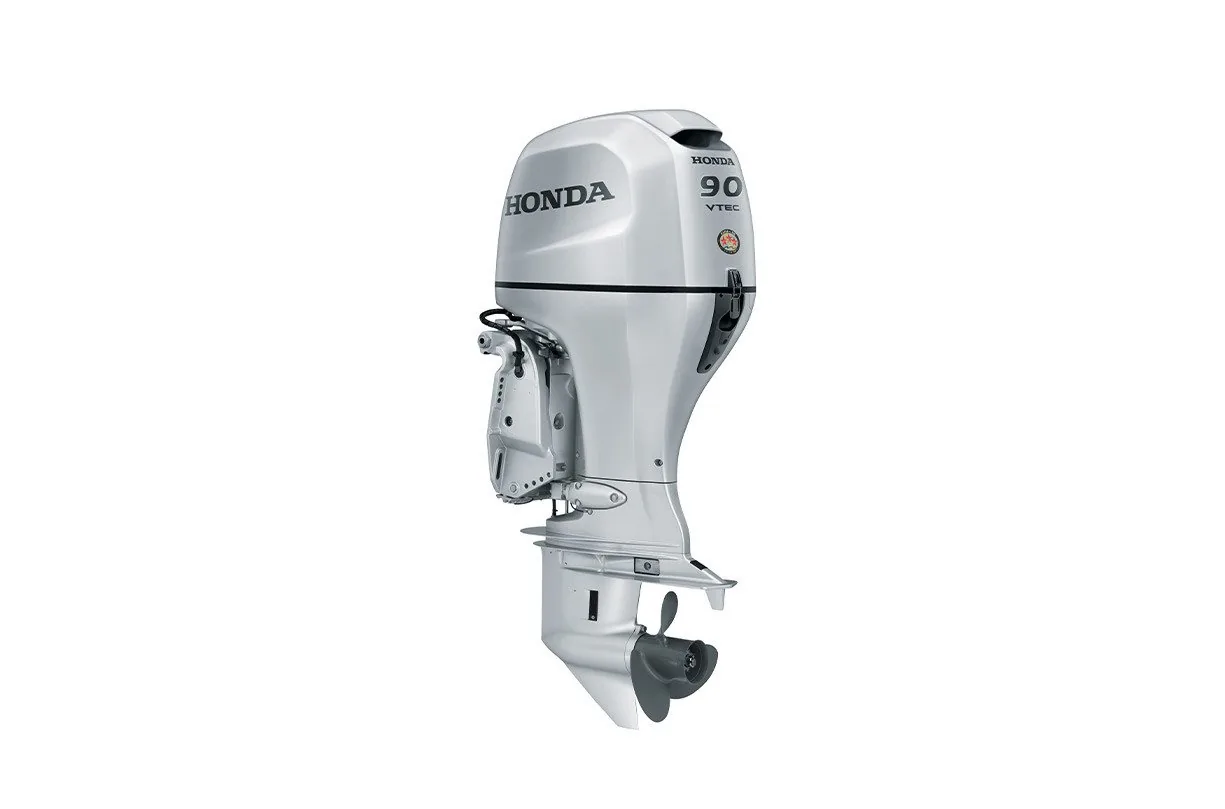

Place Honda BF90D5XRTA on a deep-V aluminum boat or coastal center console when 90 HP and a 25-inch X-long shaft are required. Its 1,496 cc inline four-cylinder SOHC 4-stroke engine uses 16 valves and VTEC technology, producing 90 HP at 5,800 RPM. Honda BF90D5XRTA is a Signature Silver outboard with Programmed Fuel Injection, electric starting, remote mechanical control, Power Trim & Tilt, and a 25-inch shaft. The X-long configuration suits compatible taller transoms.

The 366-lb dry weight should be included in transom, trailer, repower, and boat-balance calculations. Its 5,300–6,300 RPM full-throttle range provides a reference for propeller selection, while the 2.33:1 gear ratio supports forward, neutral, and reverse operation. A 44-amp alternator supplies 35 charging amps for supported navigation equipment, pumps, lighting, and accessories. The listed 4.4 L oil capacity should be serviced according to the applicable Honda owner’s manual.

Key Features of Honda BF90D5XRTA

- Fit the 25-inch X-long shaft to compatible deep-V boats and coastal center consoles.
- VTEC Powerhead — combines 1,496 cc displacement with a 16-valve inline four-cylinder layout.
- 90 HP at 5,800 RPM provides a defined output for properly rated hulls.
- 366 lbs dry weight requires careful transom capacity and repower balance planning.
- Programmed Fuel Injection manages fuel delivery within the supplied 4-stroke engine system.
- Remote Mechanical Control keeps throttle and shifting connected to the helm.
- Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
- 44 amps total with 35 charging amps support compatible onboard electrical equipment.

Why Choose the Honda BF90D5XRTA

The 25-inch shaft makes this model relevant to boats with taller transoms, while the 90 HP rating provides a defined power level for approved coastal and aluminum hulls. Remote mechanical controls keep the operating arrangement familiar, and the charging output supports standard marine electronics.

- 25-inch shaft suits compatible X-long transoms
- 90 HP supports approved coastal boats
- Remote controls fit conventional helm layouts

Applications & Use Cases

Honda BF90D5XRTA is intended for deep-V aluminum boats, coastal center consoles, and recreational fishing hulls using a compatible 25-inch transom. It can support fishing, family boating, coastal travel, and harbor cruising when the vessel accepts the engine’s weight, horsepower, shaft length, and rigging.

- Deep-V aluminum fishing boats
- Coastal center consoles with tall transoms
- Recreational boats requiring 90 HP

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 4.4 L oil capacity, gearcase lubricant, filters, spark plugs, cooling-system inspection, remote controls, and Power Trim & Tilt. Confirm shaft fitment, service intervals, warranty registration, and dealer support before purchase.
