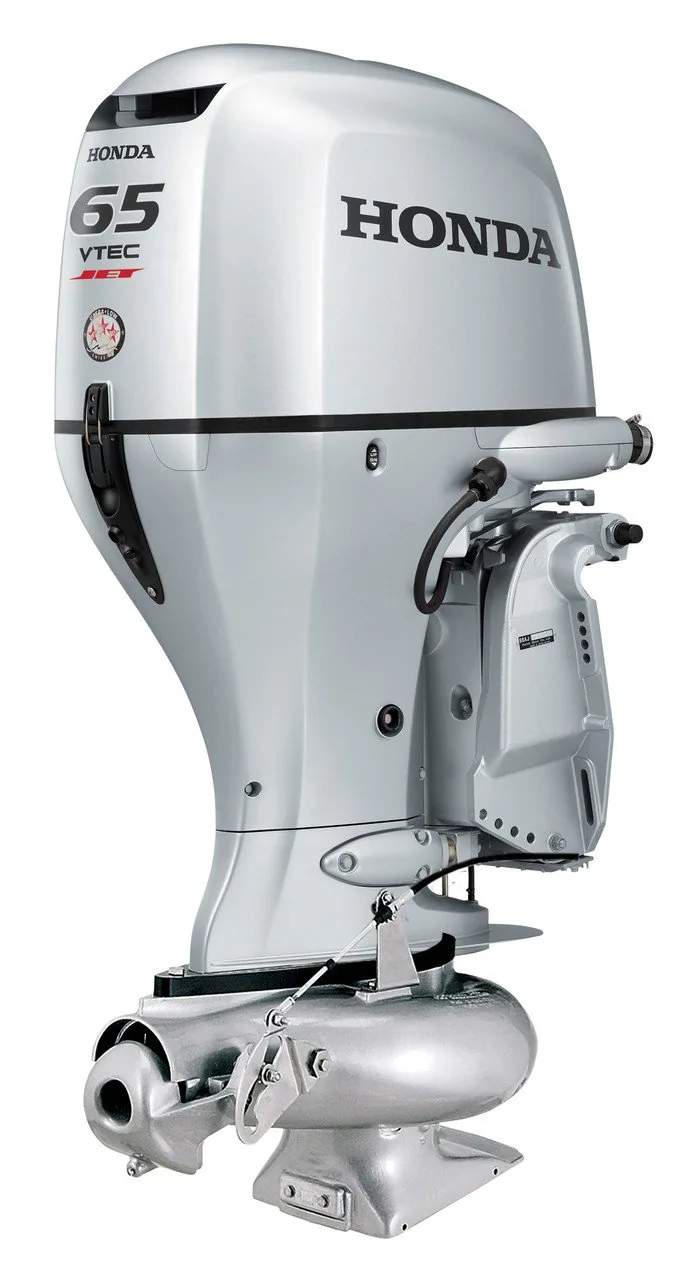

Pair Honda BF90D5JRTA with a shallow-water boat when jet propulsion is needed instead of a conventional propeller. Its 1,496 cc inline four-cylinder SOHC 4-stroke engine produces 65 HP at the pump and 90 HP at the powerhead. Honda BF90D5JRTA is a VTEC Jet outboard with Programmed Fuel Injection, electric starting, remote mechanical controls, Power Trim & Tilt, and direct-drive jet propulsion. The listed shaft is 20 inches and is designed for a 25-inch jet transom.

At 363 lbs dry, the engine should be included in transom, trailer, and boat-balance calculations. The 5,300–6,300 RPM full-throttle range provides a reference for jet-drive setup, while the 1.00:1 direct-drive arrangement differs from a conventional gearcase ratio. The 44-amp alternator supplies 35 charging amps for supported equipment. The listed oil capacity is 4.4 L, with flushing, jet-unit inspection, and service procedures following the applicable Honda manual.

Key Features of Honda BF90D5JRTA

- Use the jet drive in shallow rivers, technical flats, and propeller-sensitive waterways.
- Jet Powerhead — provides 90 HP at the engine and 65 HP at the pump.
- 1,496 cc inline four-cylinder SOHC engine uses 16 valves and VTEC.
- 363 lbs dry weight requires suitable transom capacity and careful boat-balance planning.
- Direct Drive — transfers engine power through the water-jet system without a conventional propeller.
- Programmed Fuel Injection manages fuel delivery within the supplied VTEC engine package.
- Remote Mechanical Control keeps throttle and steering functions available at the helm.
- Power Trim & Tilt adjusts the jet unit during operation, docking, and storage.

Why Choose the Honda BF90D5JRTA

The jet-drive layout addresses boating areas where propeller clearance is a concern. The 65 HP pump rating gives buyers a clearer reference for actual jet propulsion, while remote controls and Power Trim & Tilt support helm-based operation.

- Jet drive reduces conventional propeller exposure
- 65 HP at pump suits listed applications
- 25-inch jet transom supports proper fitment

Applications & Use Cases

Honda BF90D5JRTA is intended for shallow-water river running, technical flats, and compatible jet-drive boats using a 25-inch jet transom. It can support shallow-water fishing, river travel, and utility operation when the hull, jet mounting, controls, and operating environment match the required specifications.

- Shallow-water river running
- Technical flats with underwater obstacles
- Jet-drive utility and fishing boats

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 4.4 L oil capacity, jet-drive inspection, filters, spark plugs, cooling-system checks, flushing procedures, remote controls, and Power Trim & Tilt. Confirm the exact shaft and jet-transom fitment before purchase.
