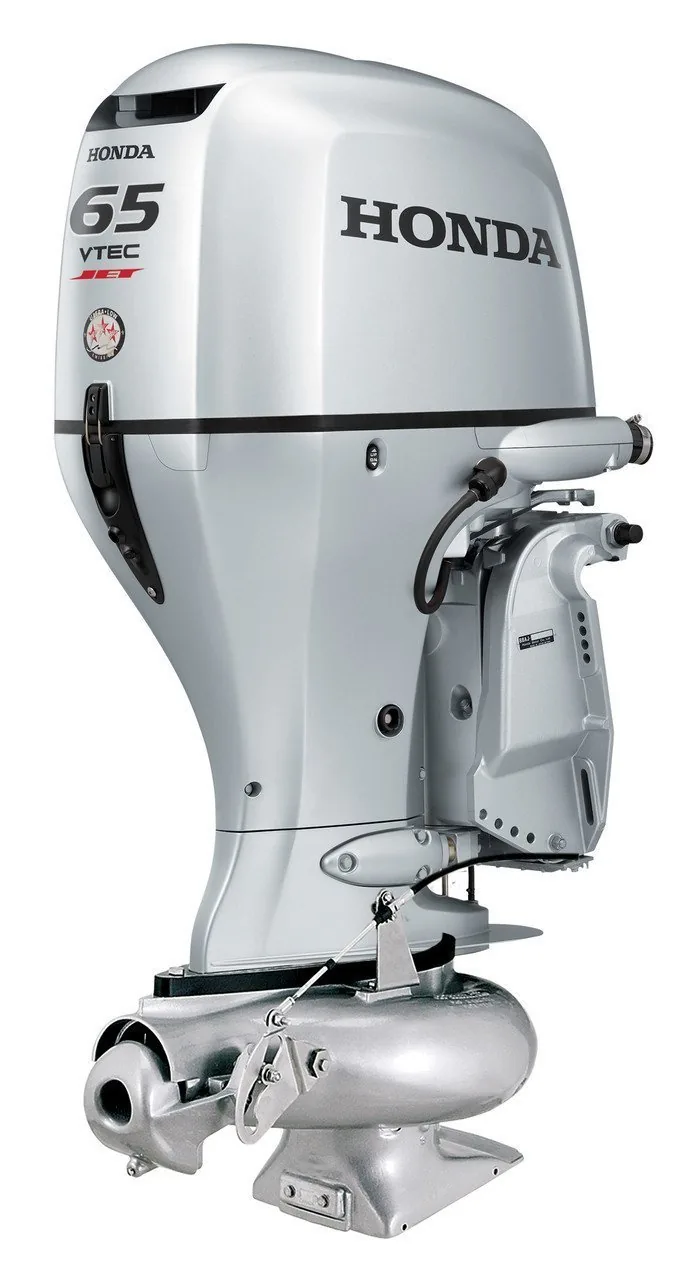

Honda BF90D5JRTA 65HP – Jet 20″ Shaft Remote Mechanical

Honda BF90D5JRTA 65HP Jet Drive

The Honda BF90D5JRTA is a specialized 65HP Jet Drive outboard engineered for offshore shallow-water performance in the United States maritime market. Built upon a 1.5L 16-valve SOHC VTEC architecture and weighing 355 lbs, this engine utilizes a 90HP powerhead to deliver a relentless torque curve for rigorous river applications. This 20-inch transom height configuration is specifically designed to eliminate lower unit snagging on rocky riverbeds. Our dependable outboard propulsion systems is designed to support the mechanical reliability necessary for professional inland maritime operations.

Operational peak performance for the Honda 65HP Jet is achieved seamlessly within the 5300 to 6300 RPM full throttle range. The 1.00:1 direct jet drive ratio provides an immense mechanical advantage, translating the VTEC-enhanced torque into rapid hole-shot acceleration without a traditional propeller. Built with legendary Japanese engineering, this corrosion-resistant marine engine incorporates advanced vibration dampening to helps support a smooth ride across turbulent American whitewater rapids.

Technical Specifications of Honda BF90D5JRTA

- The 1.5L inline four-cylinder SOHC architecture delivers displacement for heavy payload hauling capability.
- Direct jet pump propulsion eliminates the traditional lower unit gearcase for offshore shallow water navigation.
- VTEC technology optimizes intake valve timing at high RPMs to maximize thrust and thermal efficiency.
- Programmed Fuel Injection accurately manages the air mixture for fuel induction efficiency.
- An integrated 44 Amp alternator delivers 35 Amps of charging power to helps support marine electronics remain fully operational.
- NMEA 2000 certification allows engine data integration with modern digital helm displays.

1.5L VTEC Jet Propulsion

The 1.5L VTEC engine design maximizes combustion efficiency while delivering the strong low-end torque needed to drive the high-volume jet pump. This translates into reliable thrust that river guides and shallow-water anglers depend on when navigating fast-moving currents and unpredictable rapids.

Direct Jet Pump Architecture

The direct jet drive propulsion system utilizes a 1.00:1 ratio to forcefully expel water for thrust. This innovative design allows the vessel to glide over shallow shoals, sandbars, and submerged obstacles without risking catastrophic damage to a conventional propeller system or gearcase.

PGM-FI Induction System

Honda’s Programmed Fuel Injection continuously monitors atmospheric variables to deliver the appropriate fuel ratio. This is designed to support instant throttle response and prevents engine bogging during rapid acceleration scenarios while navigating tricky channels in the American freshwater environment.

High-Output 44A Alternator

Unlike standard mid-range outboards, this jet model features a robust 44 Amp alternator that produces 35 Amps of net charging power. This helps support high-draw fishfinders, livewell pumps, and navigation lights never drain the starting battery during long days on the river.

Honda Factory Warranty

Every Honda 65HP Jet unit is backed by a comprehensive five-year limited warranty for American owners. This factory-level protection helps support long-term peace of mind and grants access to genuine parts through a vast nationwide marine dealer network.

Shallow Water River Match

This remote mechanical jet outboard is a practical power solution for mid-sized aluminum jet boats and river skiffs. It provides the sustained high-end thrust needed for navigating difficult coastal tidal flats while remaining fuel efficient during long shallow water transits.

Maintenance & Longevity

Regular inspection of the wet sump lubrication system is critical for maintaining internal engine tolerances. Always flush the cooling system and jet pump impeller with fresh water after every excursion.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
