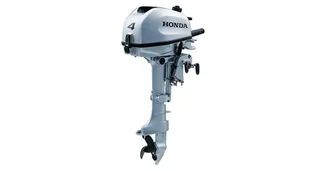

Honda BF4AHLHNC 4HP Outboard – 20in Shaft, Tiller

Support Honda BF4AHLHNC when a sailboat kicker, small dinghy, or high-transom canoe needs a compact 4 HP outboard with a 20-inch shaft. Its 127 cc single-cylinder OHV 4-stroke engine uses carbureted fuel delivery and produces 4 HP. Honda BF4AHLHNC is a portable outboard with manual recoil starting, a tiller handle, 180-degree pivot steering, four-position manual tilt, and an internal 1.5 L fuel tank. The carrying handle assists movement between storage and the boat.

At 62 lbs dry, this motor remains a manageable option for small auxiliary and tender applications. Its 4,500–5,500 RPM full-throttle range provides a reference for checking the propeller and operating setup, while the 2.08:1 gear ratio supports the supplied drive configuration. The alternator output is listed as optional or model dependent, so electrical capability should be confirmed before connecting equipment. The low-oil alert and fuel-tank arrangement support routine ownership checks.

Key Features of Honda BF4AHLHNC

- Fit the 20-inch long shaft to compatible sailboat auxiliaries, dinghies, and high-transom canoes.
- 127 cc Engine — uses a single-cylinder OHV 4-stroke configuration.
- 4 HP at the listed operating range suits properly rated compact boats.
- 62 lbs dry weight supports easier carrying, storage, and auxiliary mounting.
- Manual Recoil Start keeps the motor independent of a starting battery.
- 180-Degree Pivot Tiller provides direct steering control for small-boat maneuvering.
- Four-position manual tilt adjusts lower-unit position during selected shallow-water and storage situations.
- Internal 1.5 L Fuel Tank simplifies fuel storage on compact boats.

Why Choose the Honda BF4AHLHNC

The 20-inch shaft makes this version suitable for higher small-boat transoms, while the 62-lb weight keeps handling manageable. Manual starting, an internal fuel tank, and direct tiller steering create a compact auxiliary package for boaters who value simple setup.

- 20-inch shaft suits high transoms
- 62-lb weight supports portable handling
- Internal tank reduces external fuel equipment

Applications & Use Cases

Honda BF4AHLHNC is intended for sailboat kicker installations, small dinghies, high-transom canoes, and compact utility boats using a compatible 20-inch transom. It can support harbor movement, tender transfers, shoreline access, and auxiliary propulsion when the boat is rated for 4 HP.

- Sailboat auxiliary applications
- Small dinghies with long transoms
- High-transom canoes and tenders

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for carburetor service, engine oil, spark plug inspection, low-oil alert checks, fuel-tank care, tilt mechanism lubrication, and storage preparation. Confirm alternator availability, service intervals, and dealer support for the exact model before purchase.
