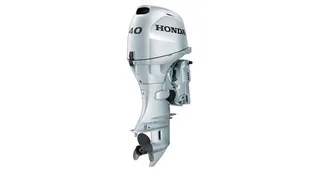

Honda BF40DK4LRTC 40HP Outboard – 20in Shaft, Remote, Power Tilt

Place Honda BF40DK4LRTC on a compatible aluminum fishing boat, small pontoon, or fiberglass runabout when remote steering and 40 HP are required with a 20-inch shaft. Its 808 cc inline three-cylinder SOHC 4-stroke engine uses 12 valves and Programmed Fuel Injection. Honda BF40DK4LRTC is an electric-start outboard with remote steering, Power Trim and Tilt, BLAST, Lean Burn Control, and NMEA 2000 compatibility. The long shaft is intended for standard compatible transoms.

The listed 220-lb dry weight should be considered during transom, battery, trailer, and repower planning. The 5,000–6,000 RPM full-throttle range helps guide propeller selection, while the 2.08:1 gear ratio supports standard forward, neutral, and reverse operation. Its 22-amp alternator provides 17 net charging amps for supported onboard equipment. Confirm the boat’s horsepower rating, transom height, steering hardware, battery capacity, and rigging compatibility before installation.

Key Features of Honda BF40DK4LRTC

- Mount the 20-inch long shaft on compatible fishing boats, pontoons, and fiberglass runabouts.
- Remote Steering — keeps throttle and directional control at the boat’s helm.
- 808 cc three-cylinder SOHC engine produces 40 HP within the supplied configuration.
- 220 lbs dry weight affects transom loading, repower balance, and trailer capacity.
- Power Trim and Tilt adjusts engine angle during acceleration, cruising, docking, and trailering.
- Programmed Fuel Injection manages fuel delivery throughout the listed 4-stroke engine.
- BLAST and Lean Burn Control provide specified acceleration and cruising functions.
- NMEA 2000 compatibility supports connection with compatible marine displays.

Why Choose the Honda BF40DK4LRTC

This configuration brings remote helm control and Power Trim and Tilt to the 40 HP platform. It suits owners who want a more equipped installation for a console boat, while the 20-inch shaft addresses standard long-transom fitment.

- Remote controls suit console boats
- Power trim supports helm-based adjustment
- 40 HP fits approved recreational hulls

Applications & Use Cases

Honda BF40DK4LRTC is suited to aluminum fishing boats, small pontoons, fiberglass runabouts, and other recreational hulls using a compatible 20-inch transom. It can support fishing, family boating, harbor travel, and short cruising trips when the boat accepts the engine’s weight and horsepower.

- Aluminum fishing boats with long transoms
- Small pontoons using remote steering
- Fiberglass runabouts with Power Trim

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the Honda owner’s manual for engine oil, gearcase lubricant, filters, spark plugs, cooling-system checks, remote controls, Power Trim and Tilt, and NMEA 2000 equipment. Confirm exact fluid quantities, service intervals, warranty registration, and dealer support before purchase.
