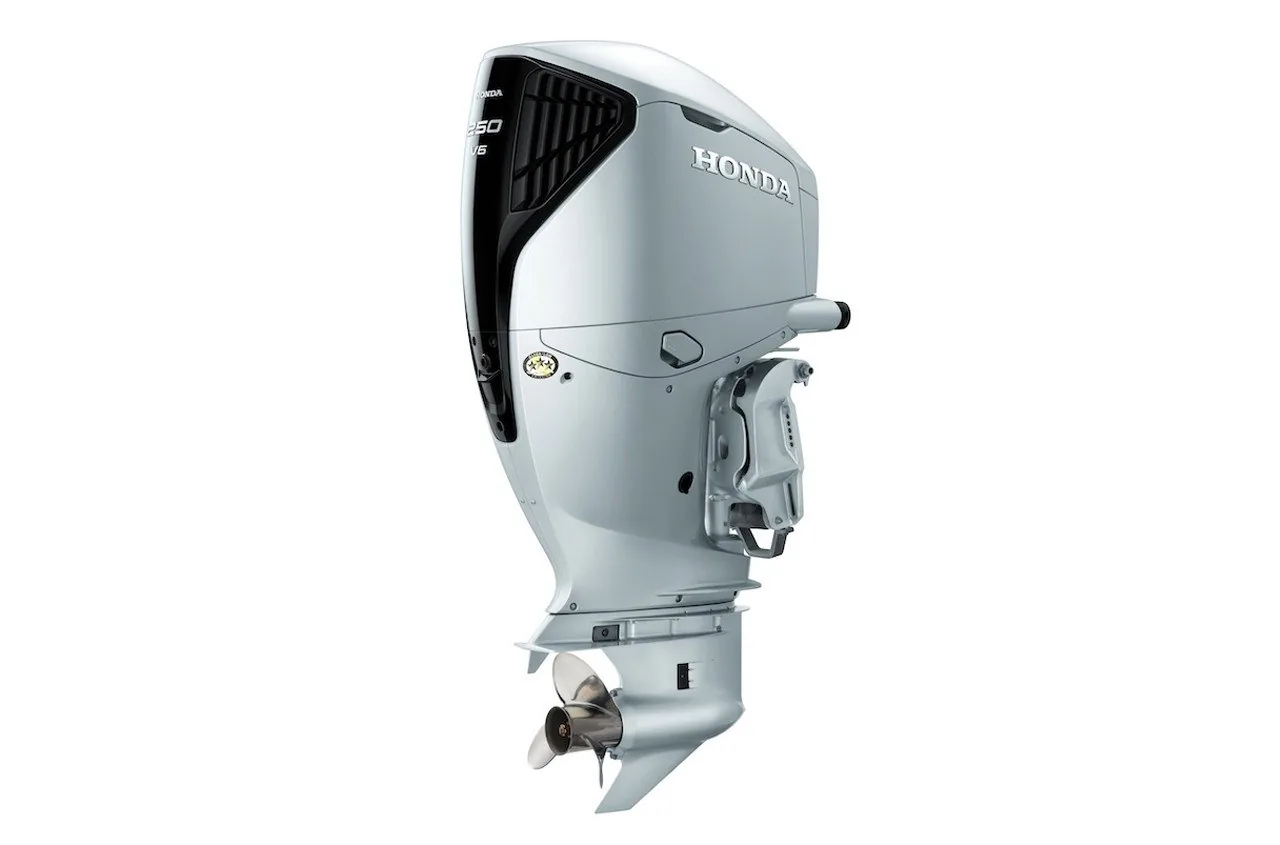

Position Honda BF250DK1XCDA on the port side of a twin-engine offshore boat when counter-rotation, iST digital control, and a 25-inch shaft are required. Its 3.6-liter V6 engine uses a 60-degree layout, 24 valves, and SOHC operation, producing 250 HP at 5,800 RPM. Honda BF250DK1XCDA is a VTEC 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The listed configuration is intended for compatible twin digital systems.

The 613-lb dry weight should be included in combined engine, battery, fuel, rigging, passenger, and transom calculations. Its 25-inch X-long shaft suits compatible tall transoms, while the 5,300–6,300 RPM full-throttle range helps guide propeller selection. A 90-amp alternator provides 60 charging amps for supported offshore electronics and accessories. The listed oil capacity is 7.8 L with filter, while gearcase and iST maintenance should follow the correct Honda manual.

Key Features of Honda BF250DK1XCDA

- Use the 25-inch X-long shaft on boats designed for compatible tall transoms.
- Counter-Rotation iST — provides the listed port-side configuration for compatible twin digital installations.
- 250 HP at 5,800 RPM comes from a 3.6-liter V6 SOHC engine.
- 613 lbs dry weight affects combined transom capacity, balance, and total twin-engine loading.
- Intelligent Shift and Throttle provides drive-by-wire control for supported digital helm systems.
- Programmed Fuel Injection manages fuel delivery within the specified 24-valve 4-stroke engine.
- Power Trim & Tilt adjusts individual engine position during acceleration, cruising, maneuvering, and trailering.
- 90 amps total with 60 charging amps support compatible navigation and communication equipment.

Why Choose the Honda BF250DK1XCDA

This model addresses a specific twin-engine requirement because the port-side position, counter-rotation, shaft length, and iST controls must all match the boat. When confirmed, the 250 HP V6 provides a clear propulsion option for the approved digital offshore rig.

- Counter-rotation suits listed port-side twin use
- iST controls support digital helm systems
- 25-inch shaft fits compatible tall transoms

Applications & Use Cases

Honda BF250DK1XCDA is intended for port-side twin configurations on offshore center consoles and other boats using 25-inch transoms. It can support offshore fishing, coastal cruising, and recreational travel when the vessel accepts the combined engine weight, digital controls, counter-rotation arrangement, and total horsepower.

- Port-side twin offshore installations
- Digital center consoles with tall transoms
- Recreational boats using iST controls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, iST controls, and counter-rotation components. Confirm twin-engine compatibility, service intervals, registration, and dealer support before purchase.
