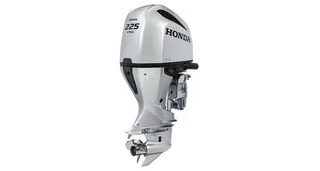

Supply Honda BF225DXRC to a compatible offshore center console or large cruiser when iST control, a 25-inch shaft, and 225 HP are needed together. Its 3,583 cc, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DXRC is a VTEC 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim and Tilt. The model is listed for premium offshore center consoles and large cruisers.

At 287 kg dry, or approximately 633 lbs, the motor should be included in transom, repower, trailer, and total loading calculations. Its 25-inch X-long shaft suits compatible tall transoms, while the 5,000–6,000 RPM full-throttle range gives a reference for propeller and hull setup. The 90-amp alternator supplies 60 net charging amps for supported navigation equipment and accessories. Confirm exact shaft, weight, control, and service details against the engine serial number before purchase.

Key Features of Honda BF225DXRC

- Use the 25-inch X-long shaft on boats designed for compatible tall transoms.
- V6 Engine — combines 3,583 cc displacement with 24 valves and SOHC operation.
- 225 HP at 5,500 RPM provides a defined output for approved offshore hulls.
- Approximately 633 lbs dry weight requires careful transom and repower planning.
- Intelligent Shift and Throttle provides drive-by-wire operation for supported digital helm systems.
- Programmed Fuel Injection manages fuel delivery within the supplied V6 4-stroke package.
- Power Trim and Tilt changes engine position during acceleration, cruising, docking, and trailering.
- 90 amps total with 60 net charging amps support compatible marine electronics.

Why Choose the Honda BF225DXRC

This model is aimed at owners who want iST digital control with the reach of a 25-inch shaft. The 225 HP V6 provides a defined power option for approved offshore boats, while the charging system supports a substantial electrical load.

- iST control suits digital-ready offshore boats
- 225 HP supports approved large hulls
- 25-inch shaft fits compatible transoms

Applications & Use Cases

Honda BF225DXRC is suited to premium offshore center consoles, large cruisers, and other recreational boats using a 25-inch transom and compatible iST rigging. It can support offshore fishing, coastal cruising, family boating, and harbor travel when the vessel accepts the engine’s weight and output.

- Premium offshore center consoles
- Large cruisers with tall transoms
- Digital iST recreational boating

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for engine oil, gearcase lubricant, filters, spark plugs, cooling-system checks, iST controls, and Power Trim and Tilt. Confirm the 7.8 L oil capacity with filter, service intervals, warranty registration, and dealer support before installation.
