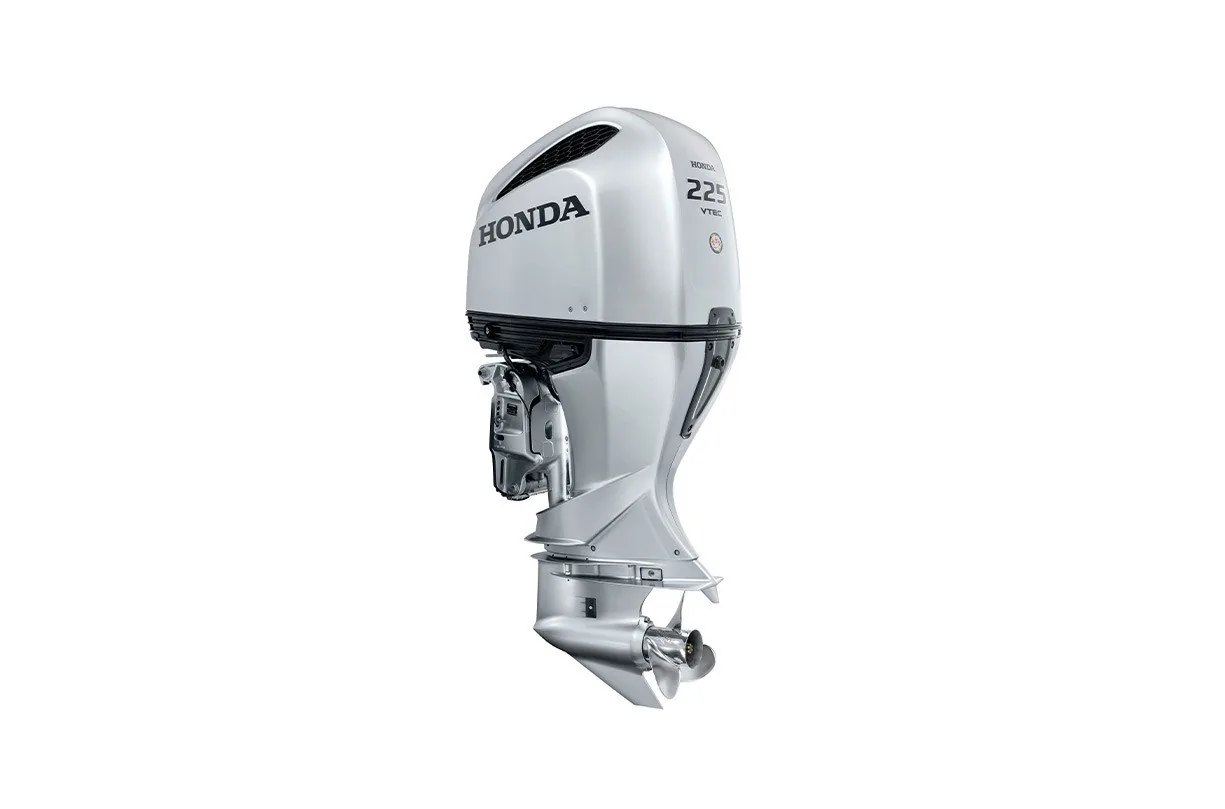

Give Honda BF225DXDA a role on a standard-rotation digital boat when a 25-inch shaft and iST drive-by-wire controls are part of the required setup. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DXDA is a VTEC 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The standard-rotation layout is intended for compatible digital helm systems.

The 613-lb dry weight should be included in transom, repower, trailer, and balance calculations. Its 25-inch X-long shaft suits boats requiring taller transom mounting, while the 5,000–6,000 RPM full-throttle range provides a reference for propeller selection. The 90-amp alternator supplies 60 charging amps for supported navigation displays, pumps, lighting, and communication equipment. Engine oil capacity is listed at 7.8 L with filter, while gearcase service should follow the applicable Honda manual.

Key Features of Honda BF225DXDA

- Mount the 25-inch X-long shaft on boats designed for compatible tall transoms.
- Standard Rotation — identifies the listed drive arrangement for compatible digital installations.
- 225 HP at 5,500 RPM comes from a 3.6-liter V6 SOHC engine.
- 613 lbs dry weight affects transom strength, repower balance, and trailer loading.
- Intelligent Shift and Throttle provides drive-by-wire control for supported digital helms.
- Programmed Fuel Injection manages fuel delivery through the specified 24-valve 4-stroke package.
- Power Trim & Tilt adjusts engine angle during acceleration, cruising, docking, and trailering.
- 90 amps total with 60 charging amps support compatible onboard electrical systems.

Why Choose the Honda BF225DXDA

The combination of standard rotation, iST control, and a 25-inch shaft gives this model a clear place in digital-ready installations. Its 225 HP rating suits properly approved boats, while the 60 charging amps provide useful capacity for a larger electronics package.

- Standard rotation suits compatible digital installations
- iST controls keep operation at the helm
- 25-inch shaft fits taller transoms

Applications & Use Cases

Honda BF225DXDA is suited to digital-ready offshore center consoles, cruisers, and other recreational vessels using a compatible 25-inch transom. It can support offshore fishing, coastal cruising, family boating, and harbor travel when the boat accepts the engine’s weight and horsepower.

- Digital offshore center consoles
- High-transom recreational cruisers
- Fishing boats using standard rotation

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, iST controls, and Power Trim & Tilt. Confirm digital compatibility, service intervals, warranty registration, and authorized dealer support before purchase.
