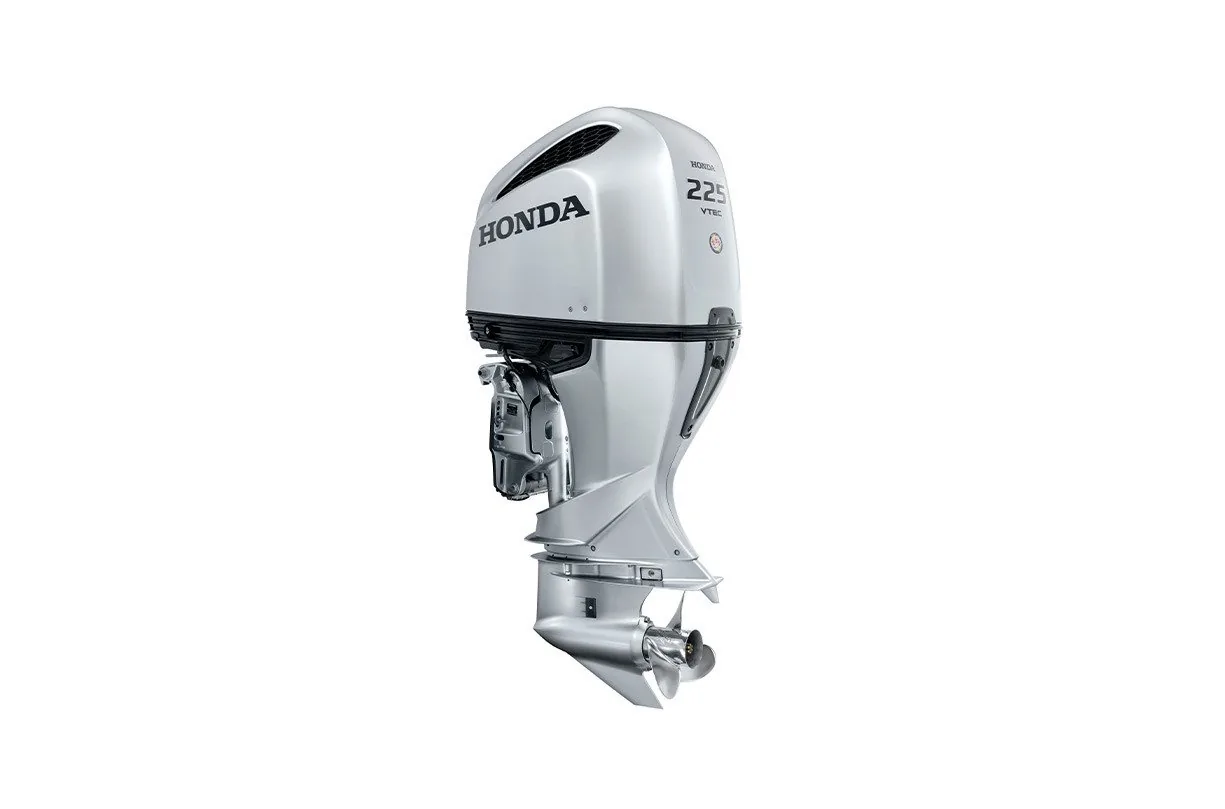

Support Honda BF225DXCRA when a twin-engine offshore vessel needs a port-side counter-rotation unit with a 25-inch X-long shaft and conventional mechanical controls. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DXCRA is a Signature Silver VTEC 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The configuration is intended for mechanical twin installations.

The 613-lb dry weight should be counted within the complete twin-engine load, including batteries, fuel, rigging, passengers, and onboard equipment. Its 5,000–6,000 RPM full-throttle range helps guide propeller selection, while the 2.00:1 gear ratio supports standard forward, neutral, and reverse operation. A 90-amp alternator provides 60 charging amps for supported electrical systems. The listed oil capacity is 7.8 L with filter, with gearcase and counter-rotation service directed by the Honda manual.

Key Features of Honda BF225DXCRA

- Use the 25-inch X-long shaft on boats designed for compatible tall transoms.
- Counter-Rotation Drive — provides the listed port-side layout for twin mechanical-control applications.
- V6 Powerhead — combines 3.6 liters, 24 valves, SOHC operation, and 225 HP output.
- 613 lbs dry weight requires careful twin-engine transom and boat-balance planning.
- Programmed Fuel Injection manages fuel delivery through the supplied 4-stroke V6 system.
- Remote Mechanical Control connects throttle and shifting to conventional cable rigging.
- Power Trim & Tilt adjusts engine angle during acceleration, cruising, docking, and trailering.
- 90 amps total with 60 charging amps support compatible offshore electronics.

Reasons to Choose the Honda BF225DXCRA

The counter-rotation configuration gives this model a defined position in twin mechanical-control systems. Its 25-inch shaft addresses tall-transom fitment, while the V6 powerhead supplies 225 HP for properly rated offshore hulls using traditional cable rigging.

- Counter-rotation supports listed port-side twin use
- Mechanical controls fit conventional rigging
- 225 HP suits approved offshore boats

Applications & Use Cases

Honda BF225DXCRA is intended for port-side twin mechanical installations on offshore boats using 25-inch transoms. It can support offshore fishing, coastal travel, harbor cruising, and recreational operation when the vessel accepts the combined engine weight, counter-rotation arrangement, and 225 HP output.

- Twin offshore boats with X-long transoms
- Port-side mechanical counter-rotation systems
- Large recreational hulls requiring V6 power

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, mechanical controls, Power Trim & Tilt, and counter-rotation service. Confirm twin-engine rigging and warranty requirements before installation.
