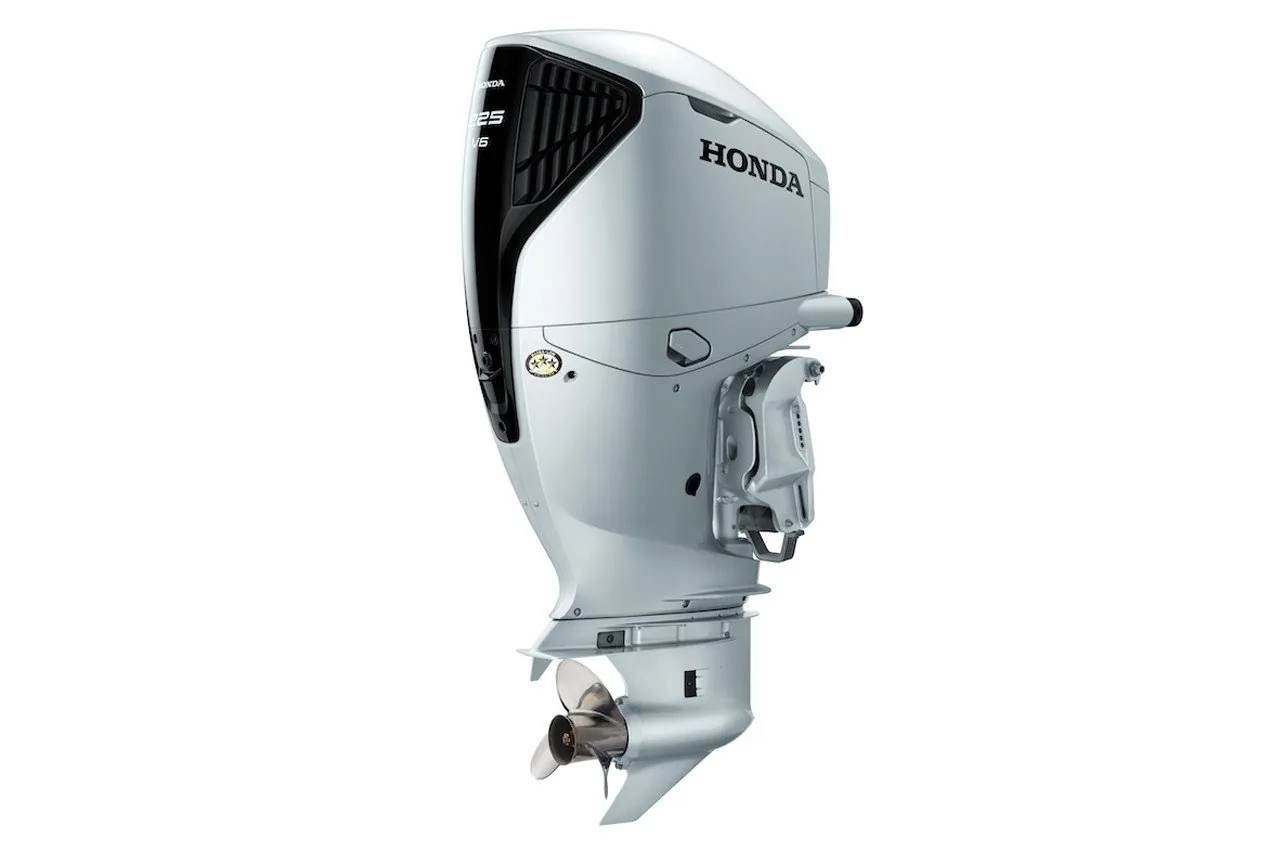

Support Honda BF225DK1XRA with a properly rated offshore center console when a 25-inch X-long shaft and traditional remote mechanical controls are part of the installation. Its 3.6-liter V6 engine uses a 60-degree cylinder layout, 24 valves, SOHC operation, and VTEC technology, producing 225 HP at 5,500 RPM. Honda BF225DK1XRA is a Signature Silver 4-stroke outboard with Programmed Fuel Injection, electric starting, Power Trim & Tilt, and remote mechanical control compatibility.

At 613 lbs dry, this engine should be included in the boat’s repower, transom, trailer, and balance calculations. The 5,000–6,000 RPM full-throttle range helps establish a reference for propeller selection, while the 2.00:1 gear ratio supports standard forward, neutral, and reverse operation. Its 90-amp alternator provides 60 charging amps for supported navigation equipment, pumps, lighting, batteries, and other accessories. The listed oil capacity is 7.8 L with filter.

Key Features of Honda BF225DK1XRA

- Mount the 25-inch X-long shaft on boats designed for compatible tall transoms.
- V6 Engine — combines 3.6 liters of displacement with a 24-valve SOHC configuration.
- 225 HP at 5,500 RPM gives approved offshore hulls a defined power option.
- 613 lbs dry weight requires careful transom capacity and repower balance planning.
- Programmed Fuel Injection manages fuel delivery within the supplied 4-stroke V6 engine.
- Remote Mechanical Control connects throttle and shifting to conventional helm rigging.
- Power Trim & Tilt adjusts engine angle during acceleration, cruising, docking, and trailering.
- 90 amps total with 60 charging amps support compatible marine electronics.

Why Choose the Honda BF225DK1XRA

This version suits boat owners who want V6 power with conventional mechanical controls instead of iST digital operation. The 25-inch shaft addresses tall-transom fitment, while the Signature Silver finish provides the listed appearance for selected offshore boat packages.

- Mechanical controls suit conventional cable rigging
- 225 HP supports approved offshore hulls
- 25-inch shaft matches compatible transoms

Applications & Use Cases

Honda BF225DK1XRA is intended for offshore center consoles, fishing boats, and recreational vessels using a compatible 25-inch transom. It can support offshore fishing, coastal cruising, harbor travel, and family boating when the vessel accepts the engine’s weight, horsepower, shaft length, and mechanical control arrangement.

- Offshore center consoles with tall transoms
- Fishing boats using mechanical rigging
- Single-engine recreational installations

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, remote controls, and Power Trim & Tilt. Confirm warranty registration, service intervals, dealer support, and regional coverage before purchase.
