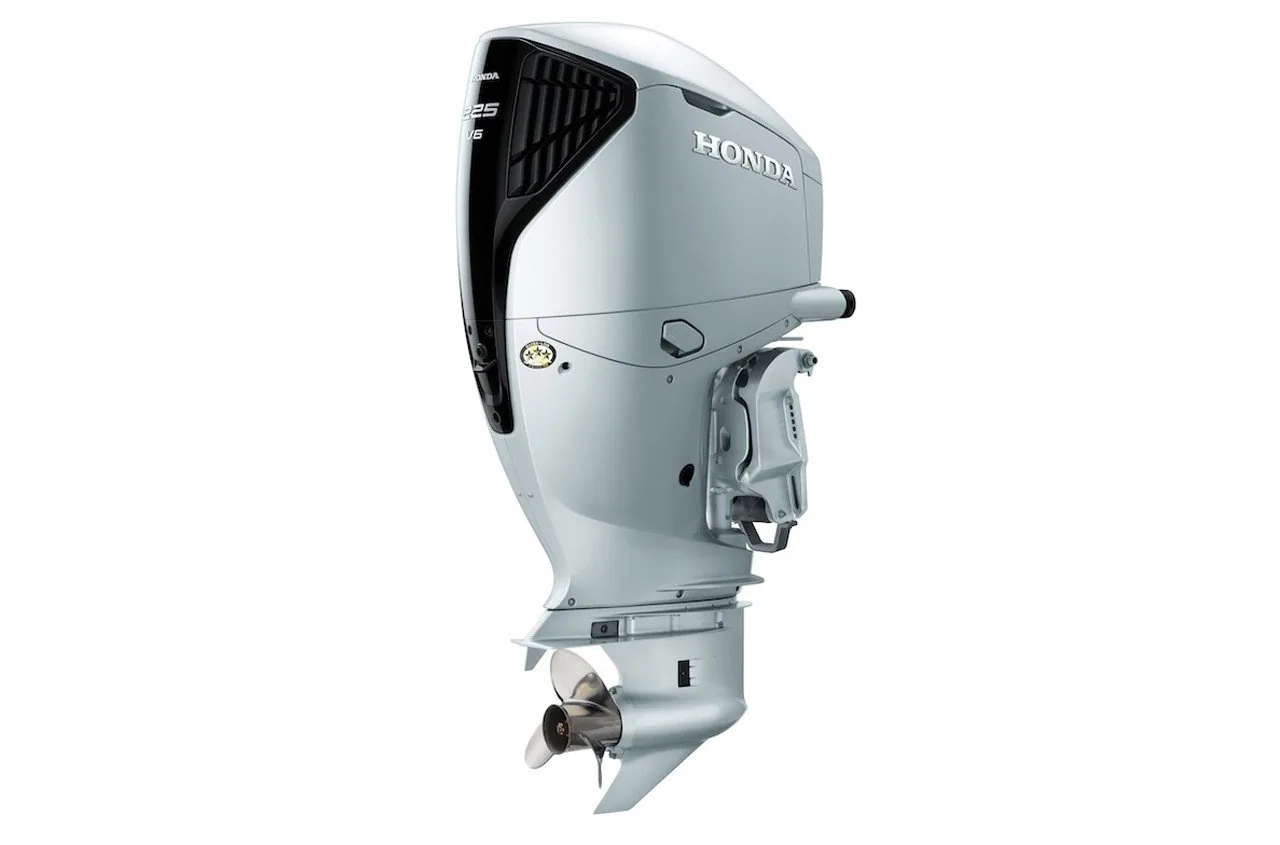

Give Honda BF225DK1XDA a place on a digital-ready offshore center console or cruiser when a 25-inch shaft and standard-rotation iST control are required. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DK1XDA is an iST 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The standard-rotation configuration suits compatible digital helm systems.

The 613-lb dry weight should be considered during transom planning, repower work, trailer loading, and boat-balance evaluation. Its 25-inch X-long shaft provides the reach required by the listed application, while the 5,000–6,000 RPM full-throttle range helps guide propeller selection. The 90-amp alternator supplies 60 charging amps for supported electronics, pumps, lighting, batteries, and communication equipment. The listed engine oil capacity is 7.8 L with filter.

Key Features of Honda BF225DK1XDA

- Fit the 25-inch X-long shaft to boats requiring compatible tall-transom mounting.
- iST Control — provides Intelligent Shift and Throttle operation for supported digital helm systems.
- 225 HP at 5,500 RPM comes from a 3.6-liter V6 SOHC engine.
- 613 lbs dry weight affects transom strength, boat balance, and repower calculations.
- Programmed Fuel Injection manages fuel delivery within the specified 24-valve 4-stroke package.
- Power Trim & Tilt adjusts engine position during acceleration, cruising, docking, and trailering.
- Standard Rotation — identifies the listed drive arrangement for compatible digital installations.
- 90 amps total with 60 charging amps support compatible onboard equipment.

Why Choose the Honda BF225DK1XDA

This model combines a 25-inch shaft with standard rotation and iST control for digital-ready offshore boats. The 225 HP rating gives a properly approved hull a clear power option, while the 60 charging amps support a larger electronics and accessory load.

- Standard rotation suits compatible digital installations
- 25-inch shaft fits tall transoms
- iST control keeps operation at the helm

Applications & Use Cases

Honda BF225DK1XDA is suited to digital-control offshore center consoles, cruisers, and recreational boats using a compatible 25-inch transom. It can support offshore fishing, coastal cruising, family boating, and harbor travel when the vessel accepts the engine’s weight, horsepower, shaft length, and iST control system.

- Digital offshore center consoles
- High-transom cruisers with iST controls
- Recreational offshore fishing

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, iST controls, and Power Trim & Tilt. Confirm digital compatibility, service intervals, warranty registration, and dealer support before purchase.
