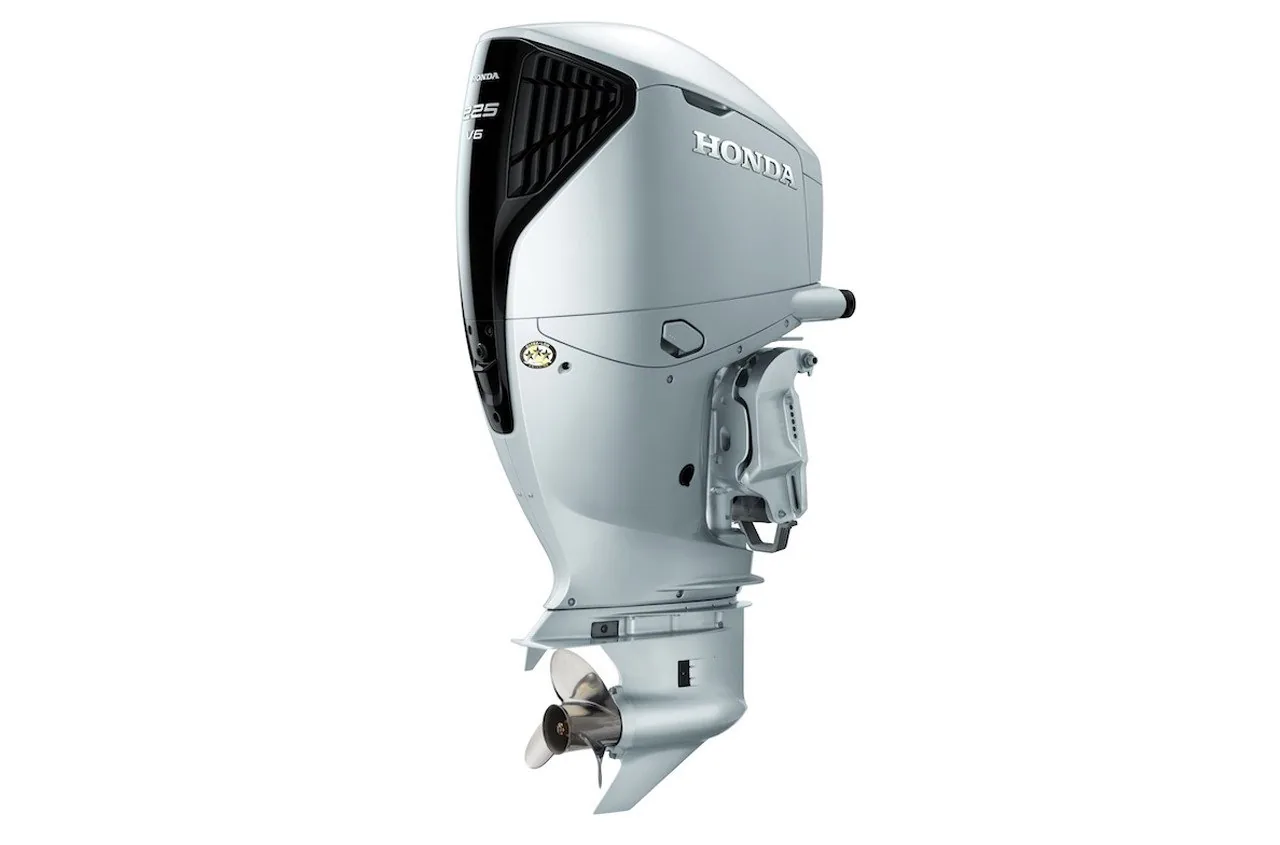

Operate Honda BF225DK1UDA when a digital offshore center console or cruiser needs 225 HP, a 30-inch U-long shaft, and iST control at the helm. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DK1UDA is a Signature Silver 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The high-transom configuration is intended for compatible digital-ready boats.

At 622 lbs dry, the engine should be included in transom, repower, trailer, and total boat-balance calculations. The 30-inch U-long shaft provides the reach required by the listed high-transom application, while the 5,000–6,000 RPM full-throttle range helps guide propeller selection and setup. Its 90-amp alternator supplies 60 charging amps for supported electronics, lighting, pumps, batteries, and communication systems. The listed oil capacity is 7.8 L with filter, with gearcase and iST service following the Honda manual.

Key Features of Honda BF225DK1UDA

- Fit the 30-inch U-long shaft to digital-ready boats requiring extended transom reach.
- iST Control — provides Intelligent Shift and Throttle operation for supported helm systems.
- 225 HP at 5,500 RPM comes from a 3.6-liter V6 SOHC engine.
- 622 lbs dry weight affects transom strength, boat balance, and repower planning.
- Programmed Fuel Injection manages fuel delivery within the supplied 24-valve 4-stroke package.
- Power Trim & Tilt adjusts engine position during acceleration, cruising, docking, and trailering.
- Signature Silver Finish identifies the listed exterior color for this configuration.
- 90 amps total with 60 charging amps support compatible offshore electronics and accessories.

Why Choose the Honda BF225DK1UDA

The U-long shaft gives this model a specific place on boats with unusually high transoms, while iST controls suit digital-ready helm systems. The 225 HP rating provides a defined option for properly rated offshore boats that also need the electrical capacity of a 60-amp charging output.

- 30-inch shaft suits high-transom boats
- iST controls support digital helm operation
- 225 HP fits approved offshore vessels

Applications & Use Cases

Honda BF225DK1UDA is suited to digital-control offshore center consoles and cruisers requiring a 30-inch shaft reach. It can support offshore fishing, coastal cruising, family boating, and harbor travel when the vessel accepts the engine’s weight, horsepower, high-transom configuration, and iST control system.

- Digital offshore center consoles
- High-transom cruisers with iST controls
- Offshore fishing and coastal travel

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, iST controls, and Power Trim & Tilt. Confirm U-long shaft fitment, digital compatibility, service intervals, and warranty registration before purchase.
