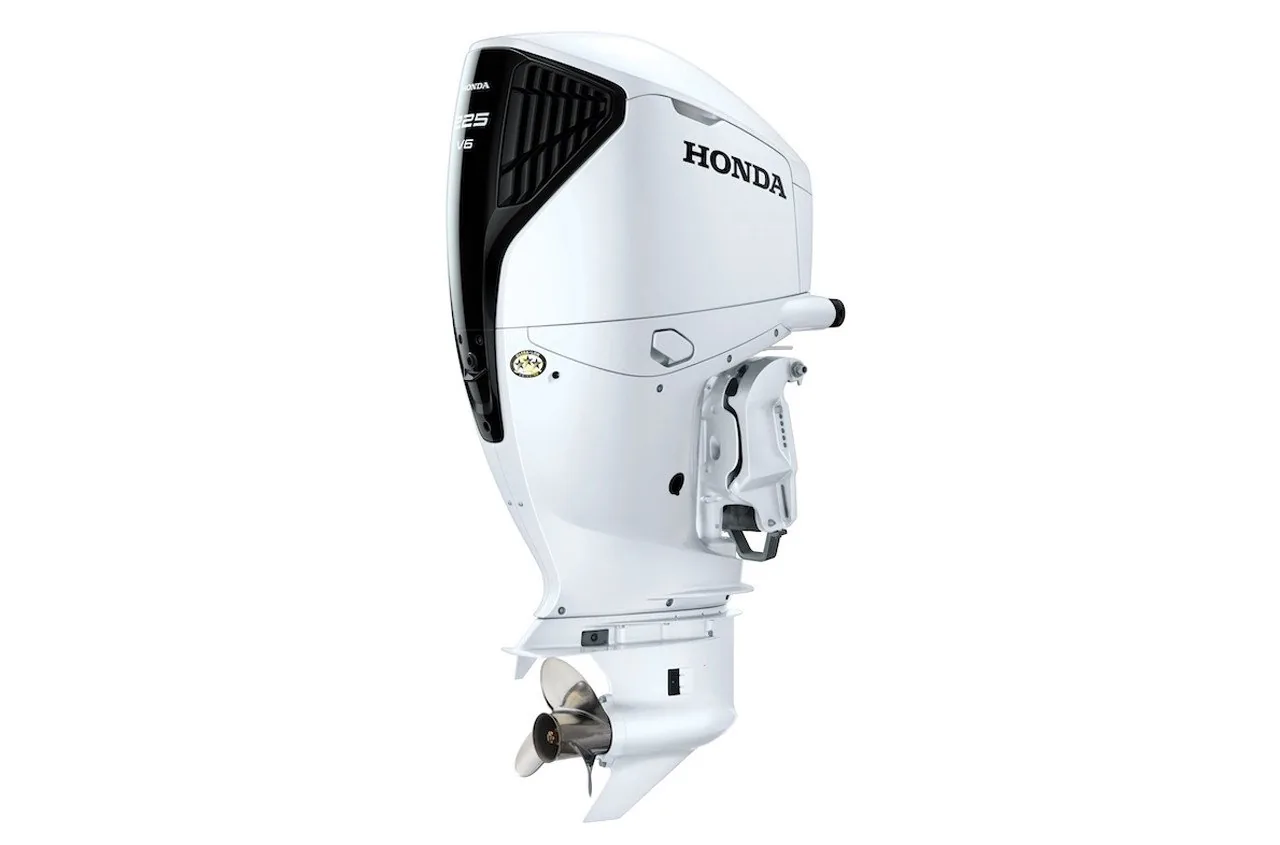

Rig Honda BF225DK1UCRA for a port-side twin-engine offshore installation when a 30-inch U-long shaft and mechanical counter-rotation are required. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation to produce 225 HP at 5,500 RPM. Honda BF225DK1UCRA is a Grand Prix White 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The configuration is intended for traditional cable-rigged twin systems.

The 622-lb dry weight should be included in combined twin-engine, transom, trailer, battery, fuel, and passenger calculations. Its 30-inch U-long shaft suits boats with extended transom requirements, while the 5,000–6,000 RPM full-throttle range helps establish a propeller setup reference. A 90-amp alternator provides 60 charging amps for supported offshore electronics. The listed 7.8 L oil capacity includes filter replacement, with gearcase and counter-rotation service governed by the applicable Honda manual.

Key Features of Honda BF225DK1UCRA

- Mount the 30-inch U-long shaft on boats designed for extended transom installations.
- Counter-Rotation Drive — provides the listed port-side layout for twin mechanical-control systems.
- V6 Engine — combines 3.6 liters, 24 valves, SOHC operation, and 225 HP output.
- 622 lbs dry weight requires careful twin-engine transom and boat-balance planning.
- Programmed Fuel Injection manages fuel delivery within the specified 4-stroke V6 package.
- Remote Mechanical Control connects throttle and shifting to conventional cable rigging.
- Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
- 90 amps total with 60 charging amps support compatible onboard electrical equipment.

Why Choose the Honda BF225DK1UCRA

The counter-rotation design gives this model a defined position in twin mechanical-control installations. Its 30-inch shaft addresses extended transom requirements, while the 225 HP V6 provides the output for properly rated offshore hulls using conventional cable rigging.

- Counter-rotation suits listed port-side twin use
- 30-inch shaft fits compatible U-long transoms
- Mechanical controls support traditional rigging

Applications & Use Cases

Honda BF225DK1UCRA is intended for port-side twin installations on offshore boats using mechanical controls and 30-inch transoms. It can support offshore fishing, coastal travel, harbor cruising, and recreational operation when the boat accepts the twin-engine layout, combined weight, counter-rotation arrangement, and 225 HP output.

- Port-side twin offshore configurations
- 30-inch transom mechanical installations
- Offshore fishing and coastal cruising

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, remote controls, Power Trim & Tilt, and counter-rotation service. Confirm twin-engine compatibility, warranty registration, and dealer support before installation.
