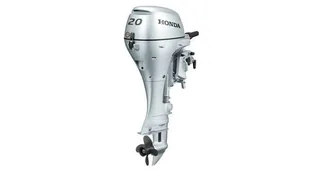

Honda BF20DK3SHC 20HP 4-Stroke Outboard – 15in Shaft, Tiller

Bring Honda BF20DK3SHC to a short-transom inflatable, Jon boat, or 12- to 14-foot aluminum fishing boat when manual starting and tiller control are preferred. Its 350 cc inline two-cylinder SOHC 4-stroke engine uses four valves and produces 20 HP at 5,000 RPM. Honda BF20DK3SHC is a carbureted portable outboard with a 15-inch short shaft, manual rope starting, a multi-function tiller, manual tilt, and shallow-water drive. The short shaft is the key fitment detail.

The 101-lb dry weight should be included in transport, transom, and boat-balance calculations. Its 5,000–6,000 RPM full-throttle range helps guide propeller selection, while the 2.08:1 gear ratio supports forward, neutral, and reverse operation. Manual tilt provides five selectable positions for lower-unit clearance when approaching shallow water, launching, or storing the engine. Confirm the boat’s 15-inch transom, horsepower rating, weight limit, and propeller requirements before use.

Key Features of Honda BF20DK3SHC

- Fit the 15-inch short shaft to compatible inflatables, Jon boats, and aluminum skiffs.
- Manual Tiller — keeps steering and throttle control directly at the outboard.
- 350 cc inline two-cylinder SOHC 4-stroke engine produces 20 HP at 5,000 RPM.
- 101 lbs dry weight supports portable handling but still requires suitable transom capacity.
- Shallow-Water Drive allows lower-unit clearance changes during selected operating conditions.
- Single Carburetor with Accelerator Pump provides the listed fuel-induction configuration.
- Manual Rope Start keeps the motor independent of an electric starting battery.
- Five-position manual tilt supports practical adjustment during launch, storage, and shallow-water operation.

Why Choose the Honda BF20D3SHC

The short shaft makes this version suitable for lower transoms, while manual controls keep the setup simple for compact boats. The 20 HP rating gives properly matched inflatables and aluminum hulls a useful power option without requiring remote rigging.

- 15-inch shaft fits compatible short transoms
- Manual controls simplify installation
- Shallow-water drive supports careful approaches

Applications & Use Cases

Honda BF20D3SHC is suited to inflatables, small aluminum fishing boats, Jon boats, and 12- to 14-foot skiffs using compatible 15-inch transoms. It can support fishing, shoreline access, utility trips, and short recreational outings when the boat is rated for 20 HP.

- Inflatables with short transoms
- 12- to 14-foot Jon boats
- Small aluminum fishing skiffs

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for engine oil, gearcase lubricant, filters, spark plugs, carburetor service, cooling-system checks, manual tilt, shallow-water drive, and tiller-control inspection. Confirm fluid quantities, service intervals, warranty registration, and dealer support before purchase.
