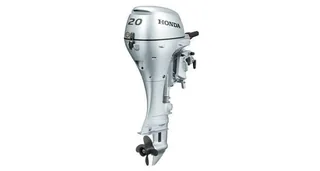

Honda BF20DK3LRTC 20HP Outboard – 20in Shaft, Remote Mechanical, Power Tilt

Position Honda BF20DK3LRTC on a small fiberglass runabout or 14- to 16-foot pontoon when remote steering, 20 HP, and Power Trim and Tilt are required together. Its 350 cc inline two-cylinder SOHC 4-stroke engine produces 20 HP at 5,000 RPM and uses a four-valve configuration. Honda BF20DK3LRTC is a carbureted portable outboard with electric starting, remote steering, a 12-amp alternator, and a 20-inch long shaft. The setup is intended for compatible long-transom boats.

At 128 lbs dry, this configuration should be included in the boat’s transom, battery, rigging, and balance calculations. The 5,000–6,000 RPM full-throttle range provides a reference for propeller selection, while the 2.08:1 gear ratio supports standard forward, neutral, and reverse operation. Power Trim and Tilt lets the operator adjust engine angle from the remote controls during acceleration, cruising, maneuvering, docking, and trailering. Confirm the hull rating and existing steering components before installation.

Key Features of Honda BF20DK3LRTC

- Mount the 20-inch long shaft on compatible fiberglass runabouts and pontoon boats.
- Remote Steering — keeps throttle and direction control at the boat’s helm.
- 350 cc inline two-cylinder SOHC engine produces 20 HP at 5,000 RPM.
- 128 lbs dry weight requires careful transom, battery, and rigging-load planning.
- Power Trim and Tilt adjusts running position from compatible remote controls.
- Electric Start provides convenient engine startup for regular small-boat operation.
- Single Carburetor with Accelerator Pump manages fuel delivery within the listed system.
- 12-amp alternator supports compatible navigation equipment, lighting, and small onboard accessories.

Why Choose the Honda BF20DK3LRTC

This model is suited to owners who want remote steering rather than direct tiller operation. Power Trim and Tilt adds helm-based engine adjustment, while the 20-inch shaft fits compatible long-transom boats that need a compact 20 HP package.

- Remote steering suits dedicated helm layouts
- Power trim supports running-angle adjustment
- 20 HP fits approved small boats

Applications & Use Cases

Honda BF20DK3LRTC is intended for small fiberglass runabouts, console pontoons, and similar 14- to 16-foot boats using a 20-inch transom. It can support family boating, fishing, harbor travel, and short cruising trips when the hull accepts the engine’s weight and control arrangement.

- Small fiberglass runabouts
- 14- to 16-foot console pontoons
- Recreational boats with remote steering

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for engine oil, gearcase lubricant, filters, spark plugs, carburetor service, cooling-system checks, battery care, remote controls, and Power Trim and Tilt. Confirm exact fluid quantities, maintenance intervals, registration, and dealer support before purchase.
