Power Honda BF200DK1XRA when a single-engine offshore center console requires a 25-inch shaft and traditional mechanical controls. Its 3.6-liter V6 engine uses a 60-degree cylinder layout, 24 valves, SOHC operation, and VTEC technology to produce 200 HP at 5,500 RPM. Honda BF200DK1XRA is a Grand Prix White 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The arrangement suits boats using conventional cable rigging.

The 613-lb dry weight should be considered during repower work, trailer setup, and transom planning. A 5,000–6,000 RPM full-throttle range provides a reference for evaluating propeller selection, while the 1.86:1 gear ratio supports standard forward, neutral, and reverse operation. The 90-amp alternator provides 60 charging amps for supported navigation equipment, pumps, lighting, batteries, and other onboard accessories. Engine oil capacity is listed at 7.8 L with filter.

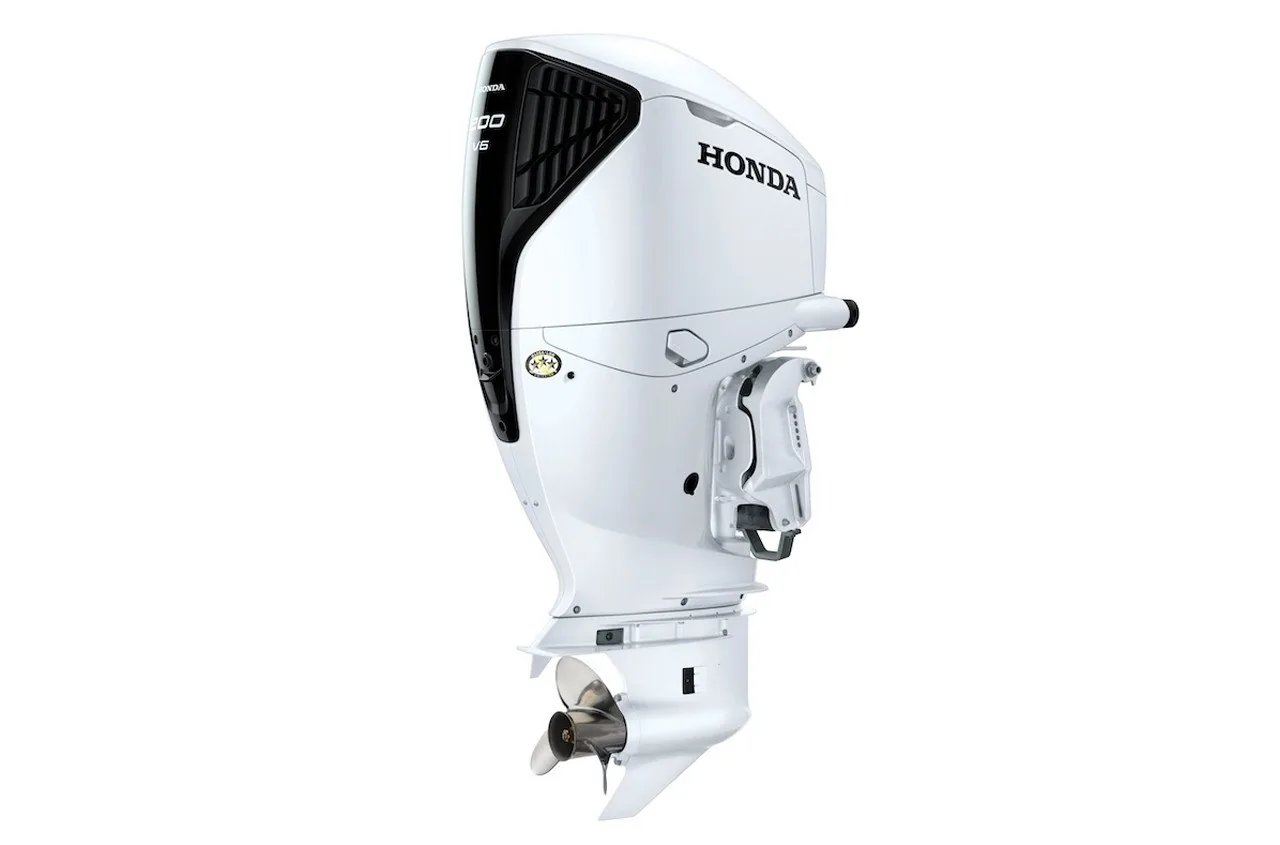

Honda BF200DK1XRA White 25-Inch V6 Outboard for Mechanical Rigging

- Mount the 25-inch X-long shaft on boats designed for compatible tall transoms.
- Grand Prix White Finish — provides the listed exterior color for this mechanical-control configuration.
- V6 Powerhead — produces 200 HP at 5,500 RPM from a 3.6-liter 24-valve SOHC engine.
- 613 lbs dry weight affects transom capacity, boat balance, trailer loading, and repower planning.
- Programmed Fuel Injection manages fuel delivery throughout the supplied 4-stroke engine system.
- Remote mechanical controls connect throttle and shifting to conventional helm rigging.
- Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
- 90 amps total with 60 charging amps support compatible marine electronics and accessories.

Reasons to Choose the Honda BF200DK1XRA

This version is aimed at owners who want V6 power without changing to an iST digital control system. The 25-inch shaft fits taller transoms, while the mechanical control arrangement works with compatible cable rigging. Its white finish also provides the listed appearance for selected offshore boat packages.

- Mechanical controls suit conventional cable rigging
- 200 HP supports approved offshore hulls
- 25-inch shaft matches compatible tall transoms

Applications & Use Cases

Honda BF200DK1XRA is suited to single-engine offshore center consoles, fishing boats, and recreational hulls using a 25-inch transom. It can support offshore fishing, coastal cruising, harbor travel, and family boating when the vessel accepts the engine’s 613-lb weight, 200 HP output, and mechanical control arrangement.

- Offshore center consoles with X-long transoms
- Fishing boats using mechanical controls
- Single-engine recreational boat installations

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, mechanical controls, and Power Trim & Tilt. Confirm warranty registration, service intervals, dealer support, and regional coverage before purchase.
