Rig the Honda BF200DK1XCDA 200HP Outboard when a twin-engine offshore boat needs a 25-inch shaft, iST digital control, and a port-side counter-rotation unit. Its 3.6-liter, 60-degree V6 engine uses 24 valves and produces 200 HP at 5,500 RPM. Honda BF200DK1XCDA is an iST drive-by-wire 4-stroke outboard with Programmed Fuel Injection, electric starting, Power Trim & Tilt, and Intelligent Shift and Throttle. The counter-rotation configuration must match the boat’s twin-engine rigging.

The 613-lb dry weight should be included in the total twin-engine transom and balance calculations. Its 25-inch X-long shaft is designed for taller transoms, while the 5,000–6,000 RPM full-throttle range helps guide propeller selection. The 90-amp alternator supplies 60 charging amps for supported navigation equipment, pumps, lighting, and communication systems. The listed engine oil capacity is 7.8 L with filter; gearcase service should follow the correct Honda manual.

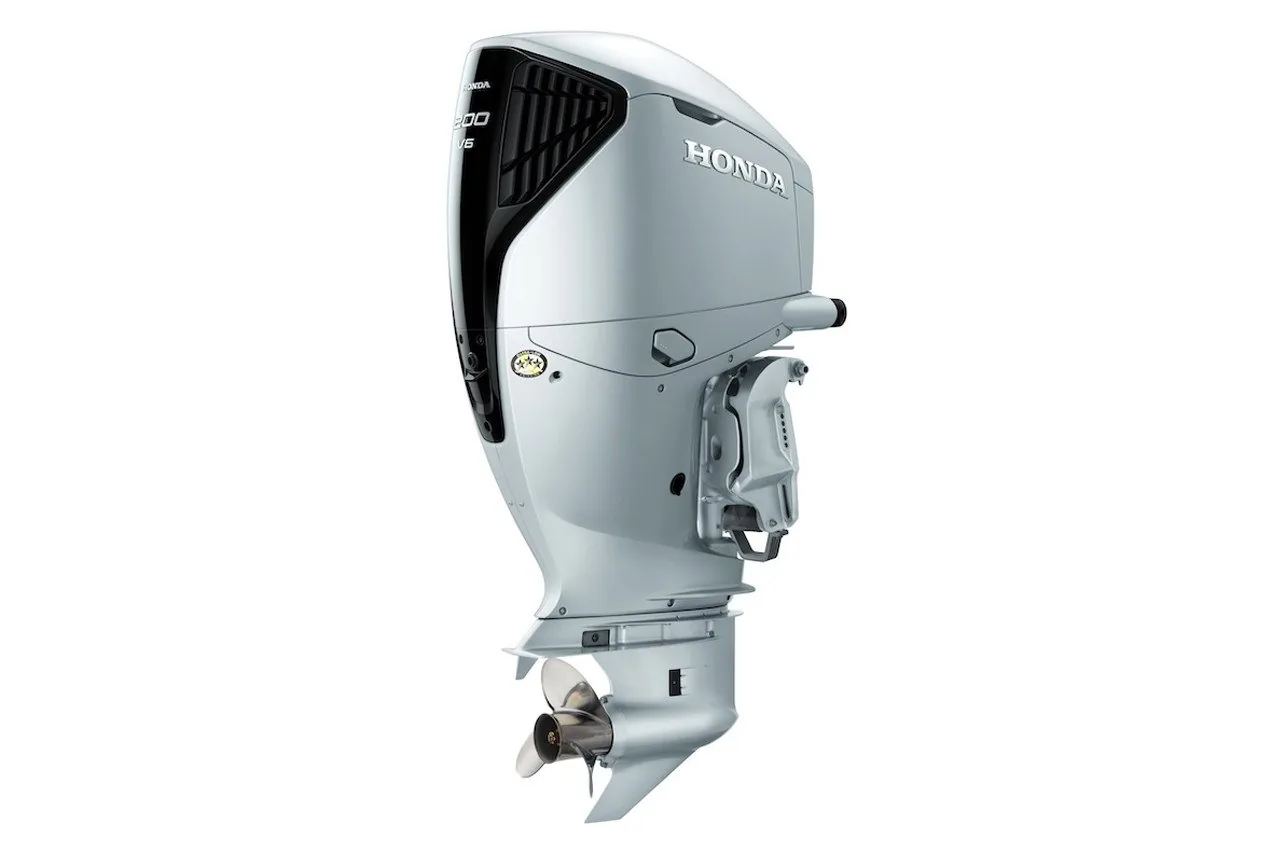

Honda BF200DK1XCDA Counter-Rotation iST Outboard for Twin Offshore Rigs

- Fit the 25-inch X-long shaft to twin-engine boats designed for taller transoms.
- V6 Engine — combines 3.6 liters, 24 valves, and a 60-degree layout.
- The listed port-side counter-rotation configuration supports compatible twin iST installations.
- 613 lbs dry weight requires careful twin-engine transom and balance planning.
- Intelligent Shift and Throttle provides drive-by-wire control for supported digital helms.
- Power Trim & Tilt adjusts individual engine position during acceleration, cruising, and maneuvering.
- Programmed Fuel Injection manages fuel delivery within the supplied V6 4-stroke package.
- 90 amps total with 60 charging amps support compatible onboard systems.

Why Choose the Honda BF200DK1XCDA

This model addresses a specific twin-engine requirement by combining counter-rotation with iST digital control and an X-long shaft. It is not a general single-engine replacement. The port-side designation, control system, and 200 HP rating must all correspond with the boat’s approved offshore rigging.

- Counter-rotation suits listed port-side twin installations
- iST controls support digital helm systems
- 25-inch shaft fits compatible tall transoms

Applications & Use Cases

Honda BF200DK1XCDA is intended for dual-engine iST digital offshore configurations using 25-inch transoms. It can support offshore fishing, coastal cruising, and recreational travel when the vessel accepts the counter-rotation arrangement, combined engine weight, digital controls, and total horsepower.

- Twin-engine offshore center consoles
- Port-side iST installations
- 25-inch transom recreational hulls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, iST controls, and counter-rotation components. Confirm twin-engine compatibility, service intervals, warranty registration, and dealer support before installation.
