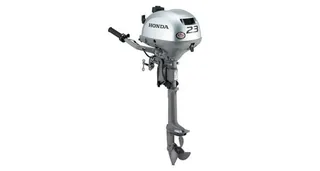

Honda BF2.3DHSCHC 2.3HP Outboard – 15in Shaft, Tiller

Use Honda BF2.3DHSCHC 2.3HP Outboard on a short-transom inflatable, dinghy, or 10- to 12-foot boat when low carrying weight and direct tiller control are the main priorities. Its 57 cc single-cylinder OHV 4-stroke engine produces 2.3 HP and uses air cooling without a water pump. Honda BF2.3DHSCHC includes manual recoil starting, 360-degree pivot tiller steering, a centrifugal clutch, an integrated 1.1 L fuel tank, and a 15-inch short shaft. This configuration is intended for smaller transoms.

At 28.7 lbs dry, the motor is designed around portable handling rather than high-output propulsion. The centrifugal clutch leaves the propeller disengaged at idle and engages as the operator advances the throttle. This arrangement allows controlled movement around launch ramps, docks, and shorelines without a conventional gear shift. Confirm the boat’s 15-inch transom, maximum horsepower, loading limit, and intended operating conditions before installation.

Honda BF2.3DHSCHC Short-Shaft 2.3 HP Outboard for Inflatable Boats

- Mount the 15-inch short shaft on compatible inflatables, dinghies, and compact boats.
- 57 cc Engine — uses a single-cylinder OHV 4-stroke layout.
- 28.7 lbs dry weight keeps carrying and storage more manageable.
- Air Cooling — operates without a water pump in the listed engine design.
- Use the centrifugal clutch to disengage the propeller at idle.
- Manual recoil starting keeps the motor independent of an electric battery.
- 360-degree pivot steering supports maneuvering around docks and launch areas.
- Integrated 1.1 L tank provides onboard fuel storage for compact trips.

What Makes the Honda BF2.3DHSCHC Useful

The short shaft and 28.7-lb dry weight make this model a practical choice for smaller boats that are carried, stored, or launched frequently. Air cooling and the integrated fuel tank keep the basic package compact, while the tiller maintains direct operator control.

- 15-inch shaft matches compatible short transoms
- 28.7-lb weight supports easier handling
- Manual control keeps setup uncomplicated

Applications & Use Cases

Honda BF2.3DHSCHC is suited to inflatables, small dinghies, car-topper boats, and 10- to 12-foot craft using a compatible 15-inch transom. It can support tender transfers, harbor movement, shoreline access, and short recreational trips when the hull is approved for 2.3 HP.

- Small inflatable boats
- Short-transom dinghies
- 10- to 12-foot utility boats

Warranty, Support & Maintenance

The supplied product information identifies a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for air-cooled engine care, oil service, carburetor drainage, spark plug inspection, clutch checks, fuel-tank storage, and seasonal preparation. Confirm exact maintenance intervals, fluid requirements, and warranty registration with the authorized dealer.
