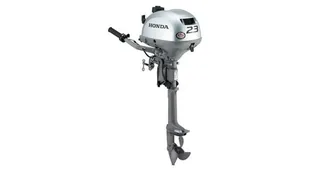

Honda BF2.3DHLCHC 2.3HP Outboard – 20in Shaft, Tiller

Run the Honda BF2.3DHLCHC 2.3HP Outboard on a canoe, small tender, or high-transom Jon boat when a lightweight long-shaft auxiliary motor is needed. Its 57 cc single-cylinder OHV 4-stroke engine uses air cooling and a carbureted fuel system, providing simple propulsion for small craft that do not require a conventional gearcase with multiple forward speeds. Honda BF2.3DHLCHC uses manual recoil starting, 360-degree pivot tiller steering, a centrifugal clutch, and a 20-inch shaft. The integrated 1.1 L fuel tank keeps the compact setup self-contained.

At 31 lbs dry, this portable outboard is easier to carry between storage and the boat than larger motors. The centrifugal clutch disengages the propeller at idle and engages as throttle is applied, allowing the operator to maneuver without a separate neutral gear position. With no water pump in the air-cooled design, routine service follows a different process than water-cooled outboards. Confirm the transom height, hull rating, fuel requirements, and intended auxiliary use before operating.

Honda BF2.3DHLCHC Long-Shaft 2.3 HP Outboard for High-Transom Boats

- Fit the 20-inch long shaft to compatible canoes, tenders, and high-transom Jon boats.
- Air-Cooled Engine — operates without a water pump in the supplied cooling configuration.
- 57 cc displacement provides 2.3 HP for properly rated compact boats.
- 31 lbs dry weight supports easier carrying, mounting, and seasonal storage.
- Centrifugal Clutch — disengages the propeller at idle and engages above idle speed.
- Manual recoil starting keeps this auxiliary motor independent of a starting battery.
- 360-degree pivot tiller steering supports close maneuvering around docks and launch areas.
- Integrated 1.1 L fuel tank simplifies fuel storage on small boats.

Why Choose the Honda BF2.3DHLCHC

The long shaft makes this version suitable for small boats with higher transoms, while the 31-lb weight keeps handling manageable. Its air-cooled engine, integrated tank, and manual controls create a compact auxiliary package for boaters who want fewer external components.

- 20-inch shaft fits compatible high transoms
- 31-lb weight simplifies portable handling
- Integrated tank reduces external fuel equipment

Applications & Use Cases

Honda BF2.3DHLCHC is intended for canoes, small tenders, high-transom Jon boats, and compact utility craft using a compatible 20-inch transom. It can support harbor movement, tender transfers, shoreline access, and auxiliary sailboat use when the boat is rated for 2.3 HP.

- High-transom Jon boats
- Long-shaft tenders and canoes
- Compact auxiliary boat applications

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for air-cooled engine service, oil changes, carburetor drainage, spark plug inspection, centrifugal clutch checks, integrated fuel-tank care, and storage preparation. Confirm service intervals and dealer support for the exact model serial range.
