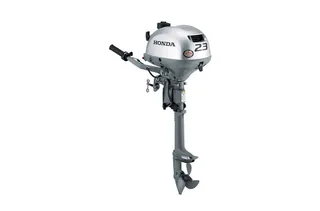

Honda BF2.3D3SCH 2.3HP Outboard – 15in Shaft, Tiller, Manual Start

Power Honda BF2.3D3SCH 2.3HP Outboard into a compatible short-transom tender, dinghy, or car-topper when compact size and easy handling are central to the boat setup. Its 57 cc single-cylinder OHV 4-stroke engine produces 2.3 HP at 5,000 RPM and uses forced-air cooling without a water pump. Honda BF2.3D3SCH has a 15-inch short shaft, manual starting, a centrifugal clutch, an integrated 1.1 L fuel tank, and a dry weight of 28.7 lbs. The short-shaft fitment suits lower transoms.

The centrifugal clutch keeps the propeller disengaged at idle and engages it as the twist-grip throttle is advanced. This provides a neutral-like condition for handling the boat around docks and launch areas, while 360-degree pivot steering supports tight maneuvering. The foldable tiller and front carrying handle help with storage and transport. Confirm the boat’s 15-inch transom, maximum horsepower, mounting area, and intended load before using the engine.

Honda BF2.3D3SCH Short-Shaft 2.3 HP Outboard for Dinghies

- Fit the 15-inch short shaft to compatible dinghies, tenders, and car-topper boats.
- 57 cc Engine — uses a single-cylinder OHV 4-stroke configuration.
- 28.7 lbs dry weight keeps carrying, mounting, and storage more manageable.
- Air-Cooled Design — operates without a water pump in the listed engine system.
- Use the centrifugal clutch to keep the propeller disengaged at idle.
- Integrated 1.1 L fuel tank supports compact onboard fuel storage.
- Manual Start keeps the motor independent of an electric starting battery.
- 360-degree pivot steering helps maneuver small boats around docks and launch areas.

What Makes the Honda BF2.3D3SCH Useful

The short shaft and 28.7-lb dry weight make this the more compact choice within the BF2.3 configuration. It suits owners who need auxiliary power for a small boat but want to keep carrying, storage, and fuel arrangements simple.

- 15-inch shaft fits compatible short transoms
- 28.7-lb weight supports easier handling
- Air cooling avoids water-pump components

Applications & Use Cases

Honda BF2.3D3SCH is suited to small tenders, dinghies, car-toppers, and compact utility boats with compatible 15-inch transoms. It can support harbor movement, tender transfers, shoreline access, and short recreational trips when the vessel is properly rated for 2.3 HP.

- Short-transom dinghies and tenders
- Car-topper boats requiring compact power
- Small utility boats with pivot steering

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for air-cooled engine care, oil changes, carburetor drainage, spark plug inspection, integrated fuel-tank storage, clutch checks, and seasonal preparation. Confirm service intervals, the 1.1 L fuel capacity, warranty registration, and dealer support before purchase.
