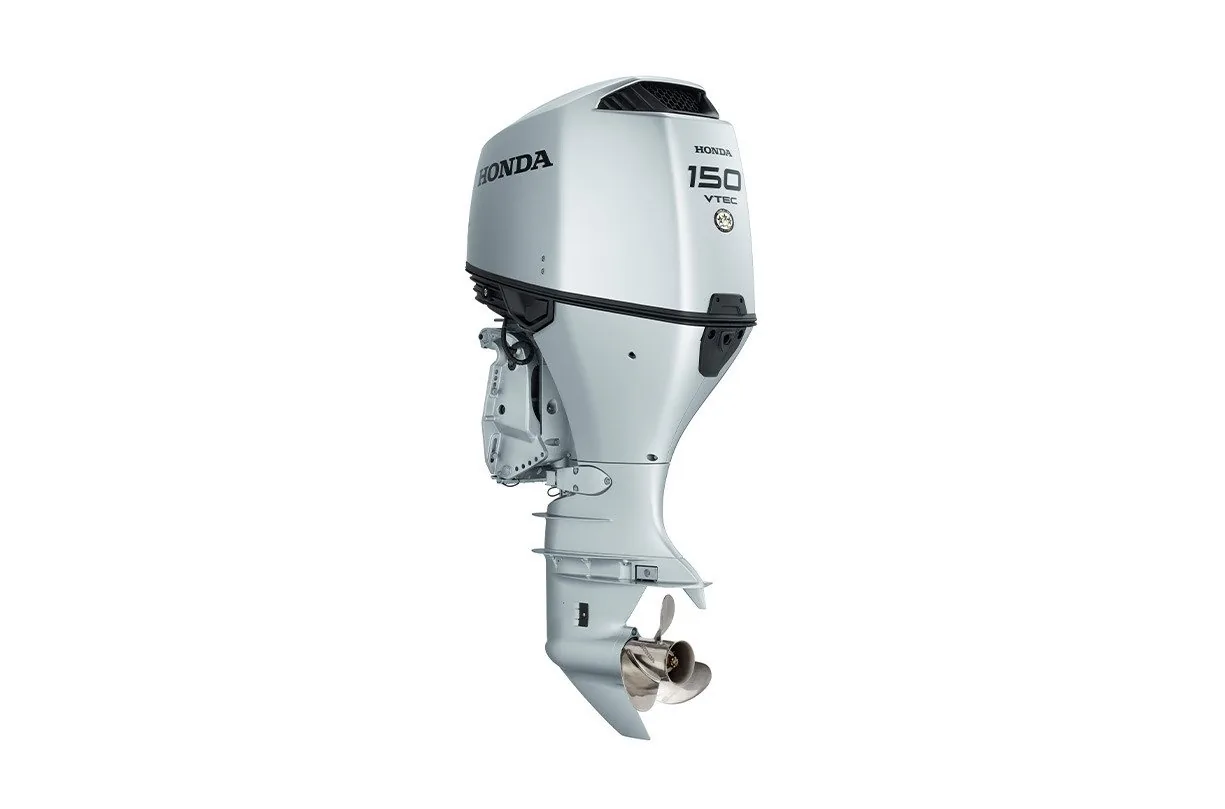

Power a compatible offshore center console or large recreational hull with the Honda BF150DK1XCDA 150HP Outboard when a 25-inch shaft and port-side counter-rotation unit are required. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and VTEC technology to produce 150 HP at 5,500 RPM. Honda BF150DK1XCDA is an iST drive-by-wire 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The counter-rotation configuration is intended for the listed twin-engine digital arrangement.

At 485 lbs dry, this engine should be included in the complete twin-engine transom, balance, and loading calculations. The 25-inch X-long shaft suits boats designed for taller transom mounting, while the 5,000–6,000 RPM full-throttle range provides a reference for propeller selection. Its 40-amp alternator supplies 30 charging amps for supported navigation displays, pumps, lighting, and communication equipment. Engine oil capacity is listed at 6.7 L with filter, while gearcase lubricant service should follow the applicable Honda manual.

Honda BF150DK1XCDA Counter-Rotation iST Outboard for Twin 25-Inch Rigs

- Fit the 25-inch X-long shaft to twin-engine boats designed for taller transom installations.
- VTEC Engine — produces 150 HP at 5,500 RPM from a 2,354 cc DOHC four-cylinder layout.
- The listed port-side counter-rotation configuration supports twin iST installations when the vessel’s rigging is matched.
- 485 lbs dry weight requires careful transom capacity, balance, and total twin-engine load planning.
- Intelligent Shift and Throttle provides drive-by-wire control for compatible digital helm systems.
- Power Trim & Tilt changes engine position during acceleration, cruising, maneuvering, docking, and trailering.
- Programmed Fuel Injection manages fuel delivery within the supplied 4-stroke engine configuration.
- 40 amps total, including 30 charging amps, supports compatible onboard electrical equipment.

Why Choose the Honda BF150DK1XCDA

This model is built around a specific twin-engine requirement rather than a general single-engine replacement. Its counter-rotation layout, iST controls, and X-long shaft must match the boat’s existing system. When those requirements are confirmed, the 150 HP rating gives the vessel a clearly defined propulsion option.

- Counter-rotation suits listed port-side twin installations
- 25-inch shaft matches compatible X-long transoms
- iST controls support digital helm arrangements

Applications & Use Cases

Honda BF150DK1XCDA is suited to twin iST digital configurations on offshore center consoles and other boats designed for 25-inch transoms. It can support offshore fishing, coastal cruising, and recreational travel when the boat accepts the twin-engine layout, counter-rotation arrangement, total weight, and 150 HP rating.

- Port-side twin-engine digital configurations
- Offshore center consoles with tall transoms
- Recreational cruising with iST controls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, counter-rotation components, and iST controls. Confirm twin-engine compatibility, warranty registration, and dealer service support before purchase.
