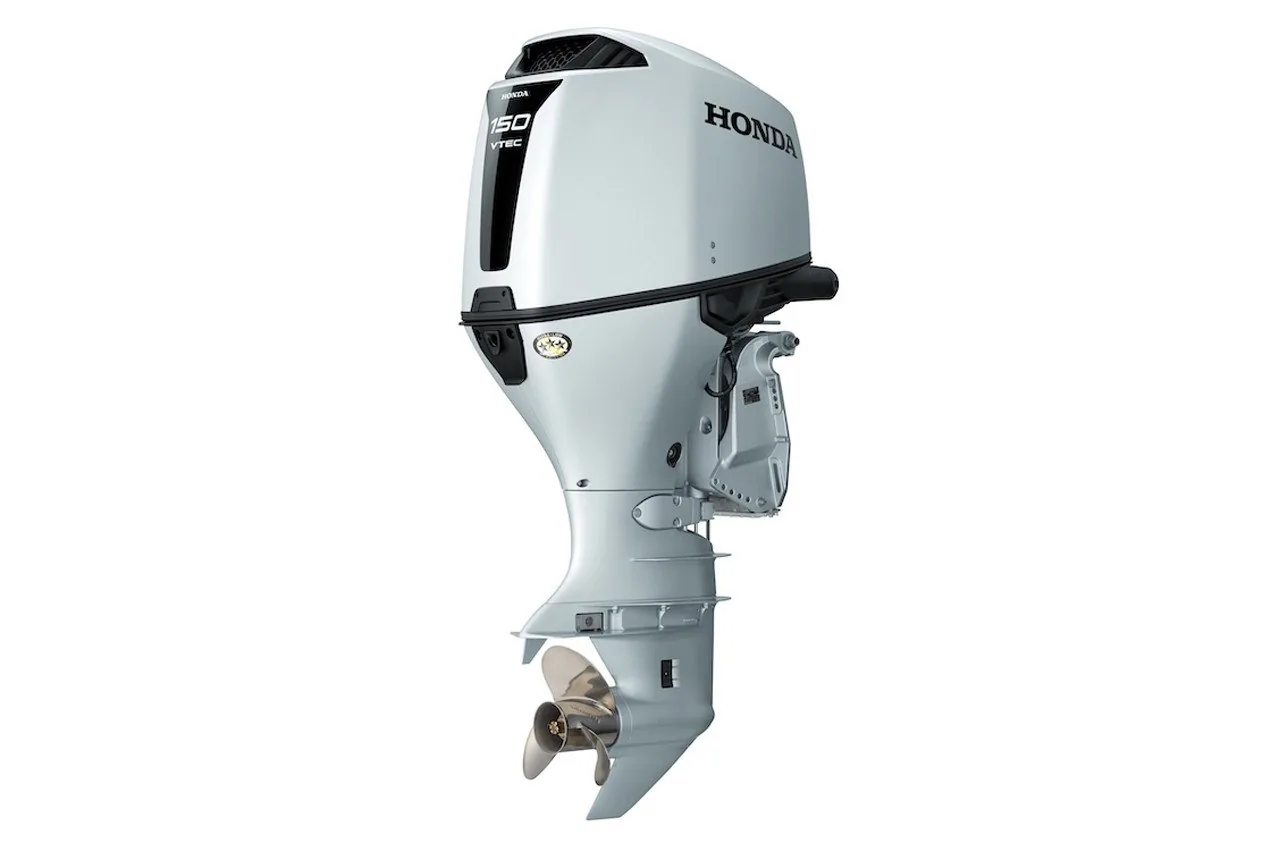

Install the Honda BF150DK1XCDA 150HP Outboard when a twin-engine digital rig requires a 25-inch shaft and a port-side counter-rotation unit. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and VTEC technology, producing 150 HP at 5,500 RPM for properly rated offshore center consoles and larger recreational hulls. Honda BF150DK1XCDA is an iST drive-by-wire 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The counter-rotation configuration is the key fitment detail for the listed twin-engine application.

At 485 lbs dry, this engine should be included in twin-engine transom, balance, and total loading calculations. Its 25-inch X-long shaft suits boats designed for taller transom mounting, while the 5,000–6,000 RPM full-throttle range provides a reference for propeller selection. The 40-amp alternator supplies 30 charging amps for supported navigation displays, pumps, lighting, and communication equipment. The listed engine oil capacity is 6.7 L with filter, while gearcase lubricant service should follow the applicable Honda manual.

Honda BF150DK1XCDA Counter-Rotation iST Outboard for Twin 25-Inch Boats

- Fit the 25-inch X-long shaft to twin-engine boats designed for taller transom installations.
- VTEC Engine — produces 150 HP at 5,500 RPM from a 2,354 cc DOHC four-cylinder layout.
- The listed port-side counter-rotation configuration supports twin iST digital setups when the boat’s rigging is matched.
- 485 lbs dry weight requires careful transom capacity, balance, and twin-engine load planning.
- Intelligent Shift and Throttle provides drive-by-wire control for compatible digital helm systems.
- Power Trim & Tilt adjusts engine position during acceleration, cruising, maneuvering, docking, and trailering.
- Programmed Fuel Injection manages fuel delivery within the supplied 4-stroke engine configuration.
- 40 amps total, including 30 charging amps, supports compatible onboard electrical equipment.

Why Choose the Honda BF150DK1XCDA

This model is intended for a specific twin-engine installation rather than a general single-engine replacement. Its port-side counter-rotation layout, iST controls, and 25-inch shaft must match the vessel’s existing system. When those requirements are satisfied, the 150 HP output gives the boat a clearly defined propulsion option.

- Counter-rotation suits listed port-side twin installations
- 25-inch shaft matches compatible X-long transoms
- iST controls support digital helm arrangements

Applications & Use Cases

Honda BF150DK1XCDA is suited to twin iST digital configurations on offshore center consoles and other boats designed for 25-inch transoms. It can support offshore fishing, coastal cruising, and recreational travel when the vessel accepts the twin-engine layout, counter-rotation arrangement, total weight, and 150 HP rating.

- Port-side twin-engine digital configurations
- Offshore center consoles with 25-inch transoms
- Recreational cruising with iST controls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L engine oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, counter-rotation components, and iST controls. Confirm twin-engine compatibility, warranty registration, dealer support, and service requirements before purchase.
