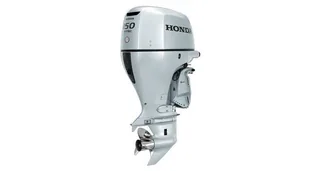

Honda BF150AK2XCC 150HP 4-Stroke Outboard – 25in Shaft, Counter Rotation

Install the Honda BF150AK2XCC 150HP 4-Stroke Outboard when a twin-engine offshore boat requires a 25-inch shaft and a counter-rotation unit for the listed left-hand configuration. Its 2,354 cc DOHC inline four-cylinder engine uses 16 valves and produces 150 HP. Honda BF150AK2XCC is a counter-rotation 4-stroke outboard with Programmed Fuel Injection, electric starting, remote controls, and Power Trim and Tilt. The counter-rotation designation must match the vessel’s twin-engine rigging.

The 220 kg dry weight should be included in the combined engine, transom, and boat-balance calculations. Its 5,000–6,000 RPM full-throttle range helps guide propeller selection, while the 2.14:1 gear ratio supports the listed direct mechanical powertrain. The 55-amp alternator supplies 40 net charging amps for supported electronics and accessories. VTEC, BLAST, Lean Burn Control, and NMEA 2000 compatibility are included in the supplied model data for properly equipped installations.

Honda BF150AK2XCC Counter-Rotation Outboard for Twin 25-Inch Setups

- Use the 25-inch X-long shaft on boats designed for compatible tall-transom mounting.
- Counter-Rotation Drive — provides the listed left-hand configuration for selected twin-engine offshore applications.
- 150 HP at the specified engine rating comes from a 2,354 cc DOHC four-cylinder powerhead.
- 220 kg dry weight affects twin-engine transom capacity, balance, and total vessel loading.
- Programmed Fuel Injection manages delivery within the 4-stroke engine system.
- Power Trim and Tilt changes engine angle during acceleration, cruising, maneuvering, and trailering.
- 55 amps total with 40 net charging amps support compatible electrical equipment.
- NMEA 2000 compatibility allows connection with supported displays and onboard systems.

Why Choose the Honda BF150AK2XCC

This model is intended for a specific twin-engine installation where counter-rotation is required on one side of the boat. The 25-inch shaft addresses tall-transom fitment, while the 150 HP rating provides a defined propulsion option for properly approved offshore hulls.

- Counter-rotation suits listed twin-engine applications
- 25-inch shaft matches compatible tall transoms
- 150 HP supports approved offshore boats

Applications & Use Cases

Honda BF150AK2XCC is suited to twin-engine offshore applications using a 25-inch transom and compatible counter-rotation rigging. It can be used for offshore fishing, coastal cruising, and recreational travel when the boat supports the combined engine weight, left-hand rotation arrangement, controls, and horsepower.

- Twin-engine offshore fishing boats
- Port-side or left-hand counter-rotation installations
- Large hulls with 25-inch transoms

Warranty, Support & Maintenance

The supplied product information identifies a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for engine oil, gearcase lubricant, filters, spark plugs, cooling-system checks, counter-rotation components, and Power Trim and Tilt service. Confirm twin-engine compatibility, warranty registration, service intervals, and regional dealer support before installation.
