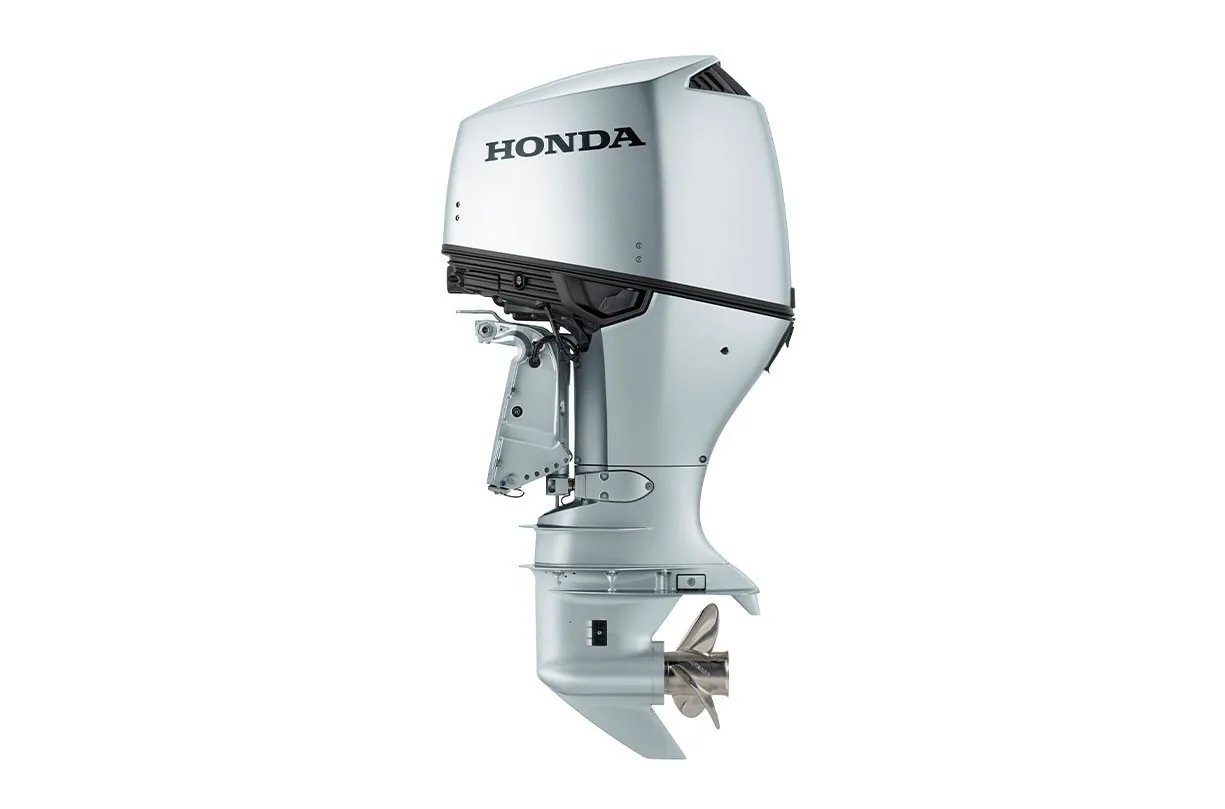

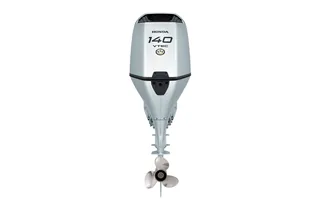

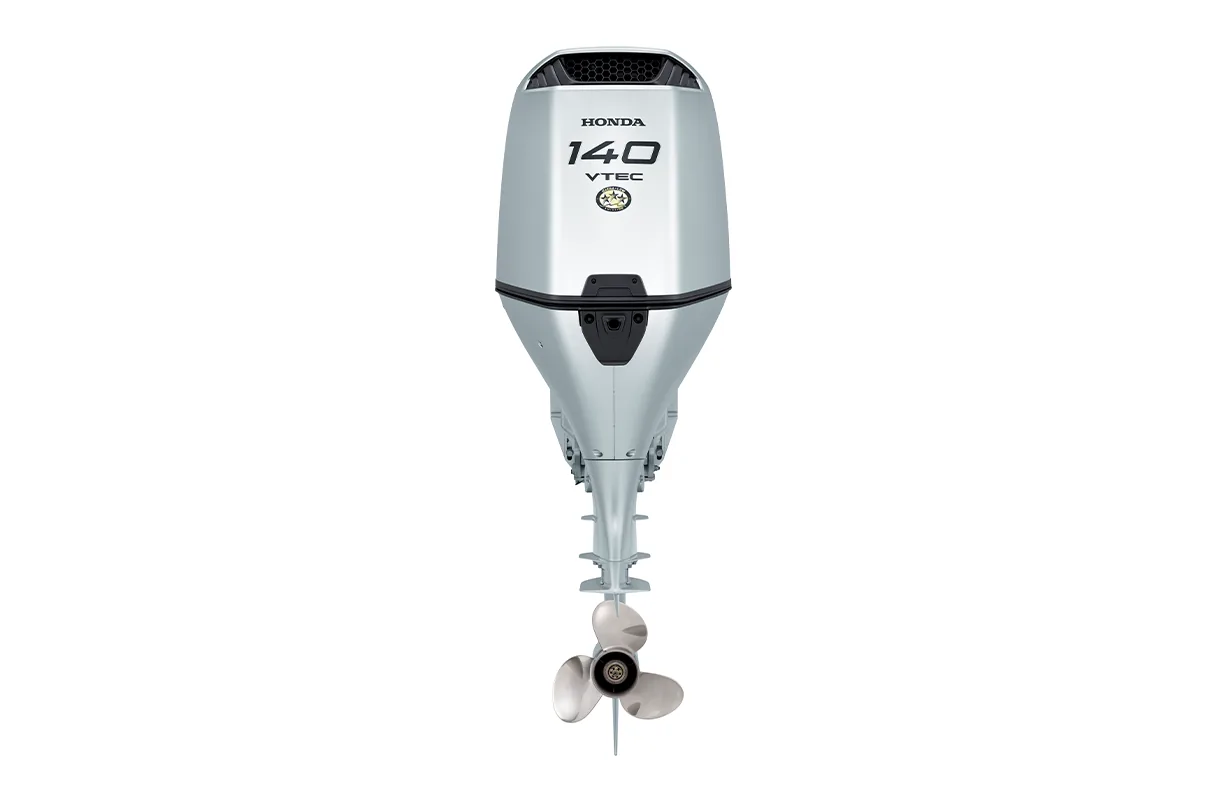

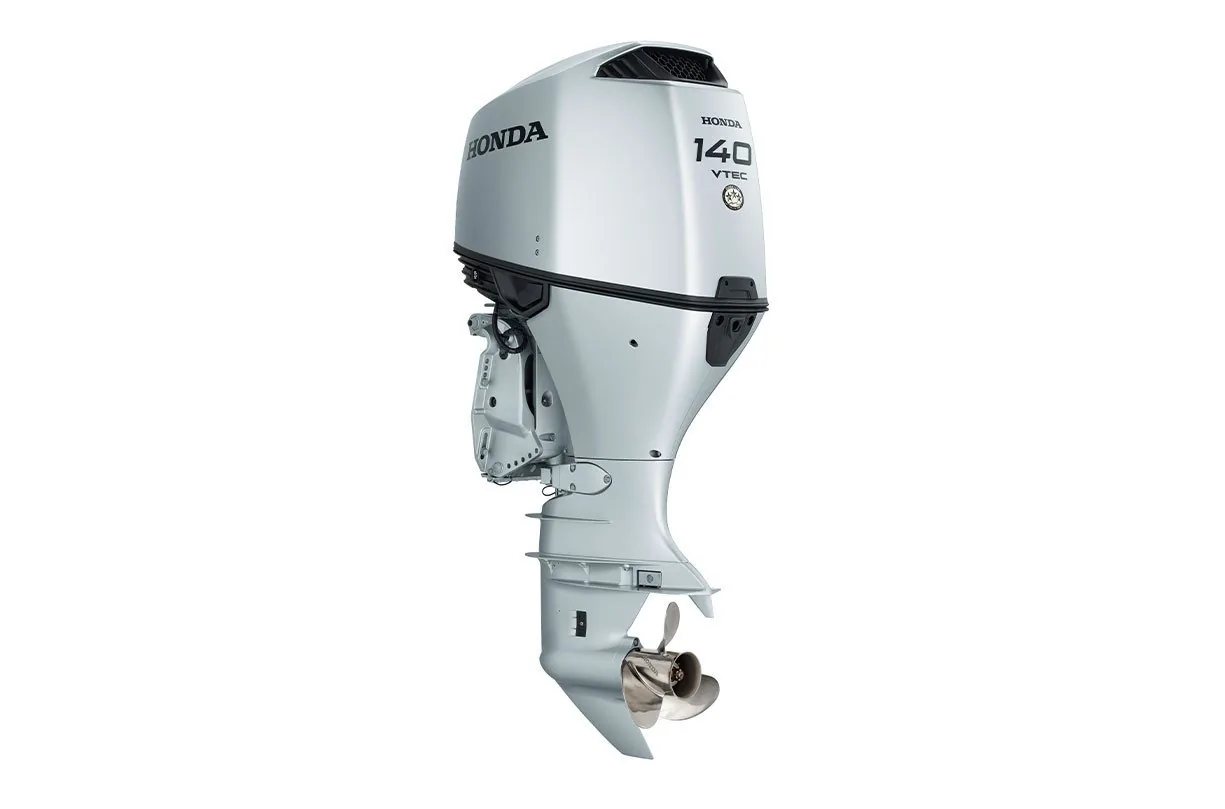

Install the Honda BF140AK1XCDA 140HP Outboard when a twin-engine digital rig requires a 25-inch shaft and a port-side counter-rotation unit. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and VTEC technology, producing 140 HP at 5,500 RPM for properly rated offshore center consoles and larger recreational hulls. Honda BF140AK1XCDA is an iST drive-by-wire 4-stroke outboard with Programmed Fuel Injection, electric starting, Power Trim & Tilt, and Intelligent Shift and Throttle control. The counter-rotation configuration is the defining fitment detail for the listed port-side application.

At 485 lbs dry, this engine should be included in twin-engine transom, balance, and total loading calculations. The 25-inch X-long shaft suits boats designed around a taller transom, while the 5,000–6,000 RPM full-throttle range provides a reference for propeller selection and installation checks. The 40-amp alternator supplies 30 charging amps for supported navigation displays, pumps, lighting, and communication equipment. The listed engine oil capacity is 6.7 L with filter; gearcase lubricant service should follow the applicable Honda manual.

Honda BF140AK1XCDA Counter-Rotation iST Outboard for Twin 25-Inch Transoms

- Fit the 25-inch X-long shaft to twin-engine boats designed for taller transom mounting.
- VTEC Engine — produces 140 HP at 5,500 RPM from a 2,354 cc DOHC four-cylinder layout.
- Twin-engine configurations can use the listed port-side counter-rotation unit when the boat’s rigging supports it.
- 485 lbs dry weight requires careful transom capacity, balance, and total twin-engine load planning.
- Intelligent Shift and Throttle provides drive-by-wire operation for compatible digital helm systems.
- Power Trim & Tilt changes engine angle during acceleration, cruising, maneuvering, and trailering.
- Programmed Fuel Injection manages fuel delivery within the supplied 4-stroke engine configuration.
- 40 amps total, including 30 charging amps, supports compatible onboard electrical equipment.

Why Choose the Honda BF140AK1XCDA

This model serves a specific twin-engine requirement rather than a general single-engine replacement. Its counter-rotation layout, iST controls, and 25-inch shaft must match the boat’s existing rigging. When those requirements are satisfied, the 140 HP output gives an approved vessel a clearly defined propulsion option.

- Counter-rotation suits listed port-side twin installations
- 25-inch shaft matches compatible X-long transoms
- iST controls support digital helm arrangements

Applications & Use Cases

Honda BF140AK1XCDA is suited to twin iST digital configurations on offshore center consoles and other boats designed for 25-inch transoms. It can support offshore fishing, coastal cruising, and recreational travel when the vessel accepts the twin-engine layout, counter-rotation arrangement, total weight, and 140 HP rating.

- Port-side twin-engine digital configurations
- Offshore center consoles with 25-inch transoms
- Recreational cruising with iST controls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L engine oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, counter-rotation components, and iST controls. Confirm twin-engine compatibility, warranty registration, dealer support, and service requirements before purchase.
