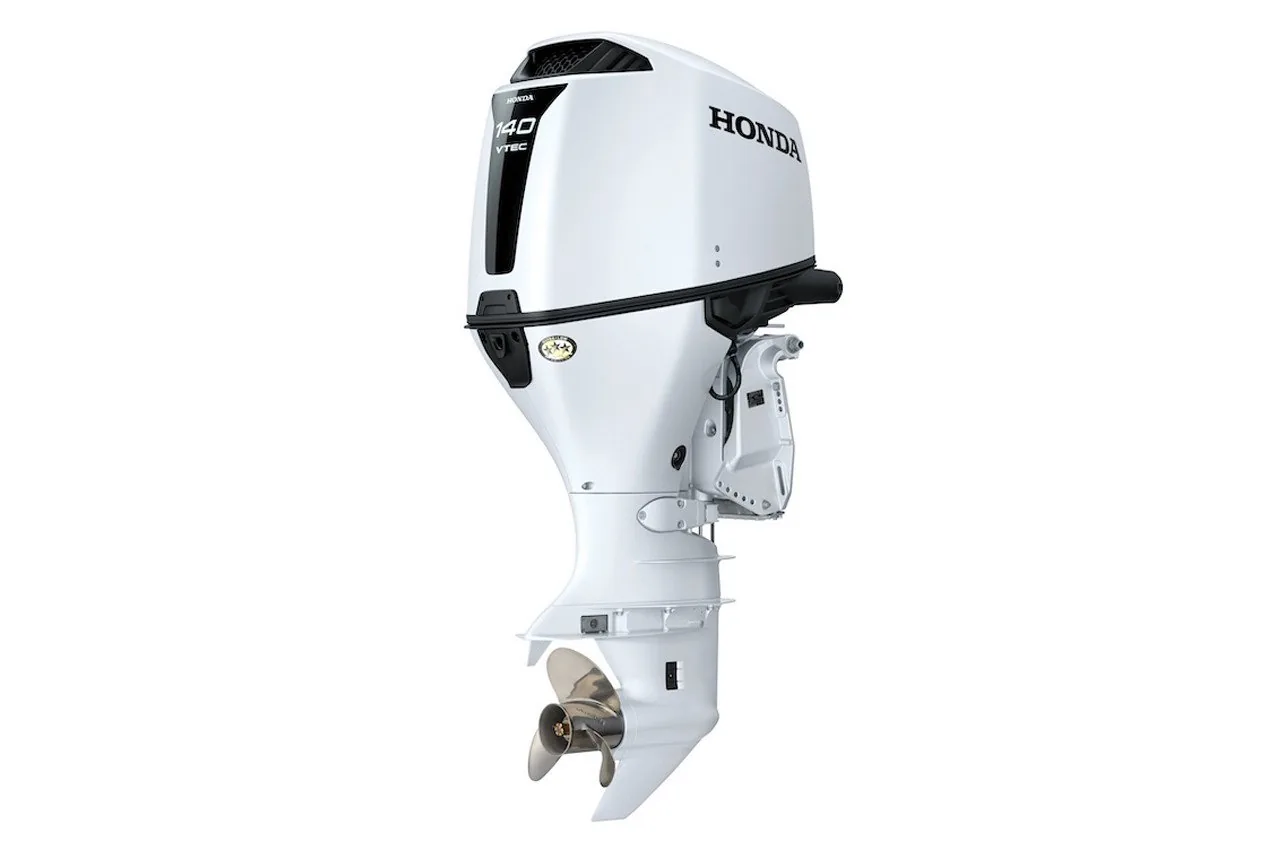

Choose the Honda BF140AK1XRA 140HP Outboard when a single-engine offshore hull needs a 25-inch shaft, traditional mechanical controls, and a Grand Prix White finish. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and VTEC technology, producing 140 HP at 5,500 RPM. Honda BF140AK1XRA is a 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The configuration is aimed at boats using conventional cable rigging.

The 485-lb dry weight should be included in repower, transom, trailer, and balance calculations before installation. Its 25-inch X-long shaft is intended for compatible tall transoms, while the 5,000–6,000 RPM full-throttle range provides a reference for checking the propeller and hull setup. A 40-amp alternator produces 30 charging amps for supported navigation equipment, lighting, pumps, and accessories. Engine oil capacity is listed at 6.7 L with filter, with gearcase lubricant service governed by the Honda manual.

Honda BF140AK1XRA White 25-Inch Outboard for Cable-Rigged Boats

- Mount the 25-inch X-long shaft on boats designed for compatible tall transoms.
- Grand Prix White Finish — provides the listed exterior color for this mechanical-control model.
- VTEC Engine — delivers 140 HP at 5,500 RPM from a 2,354 cc DOHC four-cylinder layout.
- 485 lbs dry weight requires careful transom capacity and repower balance planning.
- Programmed Fuel Injection manages fuel delivery through the supplied 4-stroke engine.
- Remote mechanical controls keep throttle and shifting connected to conventional helm rigging.
- Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
- 40 amps total with 30 charging amps support compatible marine electronics.

Why Choose the Honda BF140AK1XRA

This version is a practical choice for owners who want a 140 HP outboard with mechanical controls rather than an iST system. The 25-inch shaft suits a taller transom, and the Grand Prix White finish provides the listed appearance for selected offshore boat packages.

- Mechanical controls suit conventional cable rigging
- 25-inch shaft fits compatible tall transoms
- 140 HP supports approved offshore hulls

Applications & Use Cases

Honda BF140AK1XRA is intended for single-engine offshore center consoles and recreational hulls using a 25-inch transom with compatible cable rigging. It can support offshore fishing, coastal cruising, harbor travel, and family boating when the vessel accepts the engine’s weight and 140 HP output.

- Offshore center consoles with X-long transoms
- Single-engine boats using cable controls
- Recreational fishing and coastal cruising

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, mechanical controls, and Power Trim & Tilt. Confirm warranty registration, service intervals, dealer support, and regional coverage before purchase.
