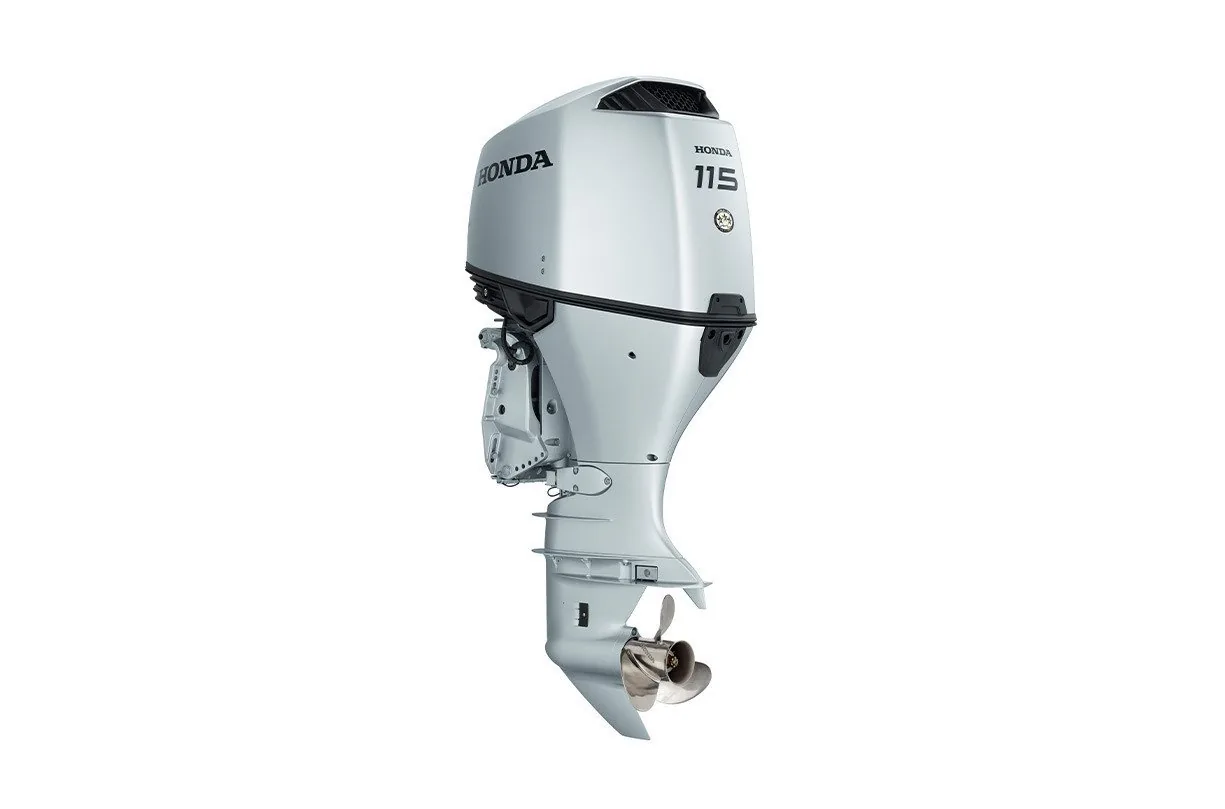

Set the Honda BF115JXDA 115HP Outboard on a compatible 25-inch transom when an offshore center console needs digital shift and throttle control. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and produces 115 HP at 5,250 RPM, providing useful power for properly rated fishing and recreational hulls. Honda BF115JXDA is an iST drive-by-wire 4-stroke outboard with Programmed Fuel Injection, electric starting, and Power Trim & Tilt. The X-long shaft is intended for boats designed around a taller transom.

At 485 lbs dry, the engine requires careful repower planning around transom strength, boat balance, and total operating load. Its 4,500–6,000 RPM full-throttle range gives owners a reference for propeller selection and post-installation setup. The 40-amp alternator supplies 30 charging amps for supported electronics, lighting, pumps, and other equipment. The listed oil capacity is 6.7 L with filter, while gearcase lubricant quantities and service intervals should be confirmed through the correct Honda manual.

Honda BF115JXDA iST 25-Inch Outboard for Digital Helm Control

- Use the 25-inch X-long shaft on boats requiring taller transom mounting.
- iST Drive-by-Wire — provides Intelligent Shift and Throttle control for supported digital helm installations.
- 115 HP at 5,250 RPM comes from a 2,354 cc four-cylinder DOHC 4-stroke engine.
- 485 lbs dry weight belongs in repower, transom, trailer, and balance calculations.
- Programmed Fuel Injection manages fuel delivery through the specified Honda powerhead.
- Power Trim & Tilt changes engine position from compatible digital helm controls.
- 40 amps total with 30 charging amps support connected marine equipment.
- The 4,500–6,000 RPM range helps evaluate propeller selection after installation.

Why Choose the Honda BF115JXDA

The combination of a 25-inch shaft and iST control makes this model relevant to digital-ready center consoles. It provides a 115 HP option for properly rated boats while allowing shifting and throttle functions to be handled through compatible electronic controls at the helm.

- 25-inch shaft fits compatible X-long transoms
- iST control suits digital-ready center consoles
- 115 HP supports approved offshore hulls

Applications & Use Cases

Honda BF115JXDA suits offshore center consoles and recreational fishing boats requiring a 25-inch shaft and compatible iST rigging. It can be used for offshore fishing, coastal cruising, harbor travel, and family boating when the vessel supports the engine’s weight, horsepower, and digital control requirements.

- Offshore center consoles with tall transoms
- Digital-ready fishing boats using iST
- Coastal cruising with remote helm control

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L oil capacity with filter, gearcase lubricant service, filters, spark plugs, cooling-system checks, and iST control inspection. Confirm digital rigging compatibility, registration, warranty terms, and dealer support before purchase.
