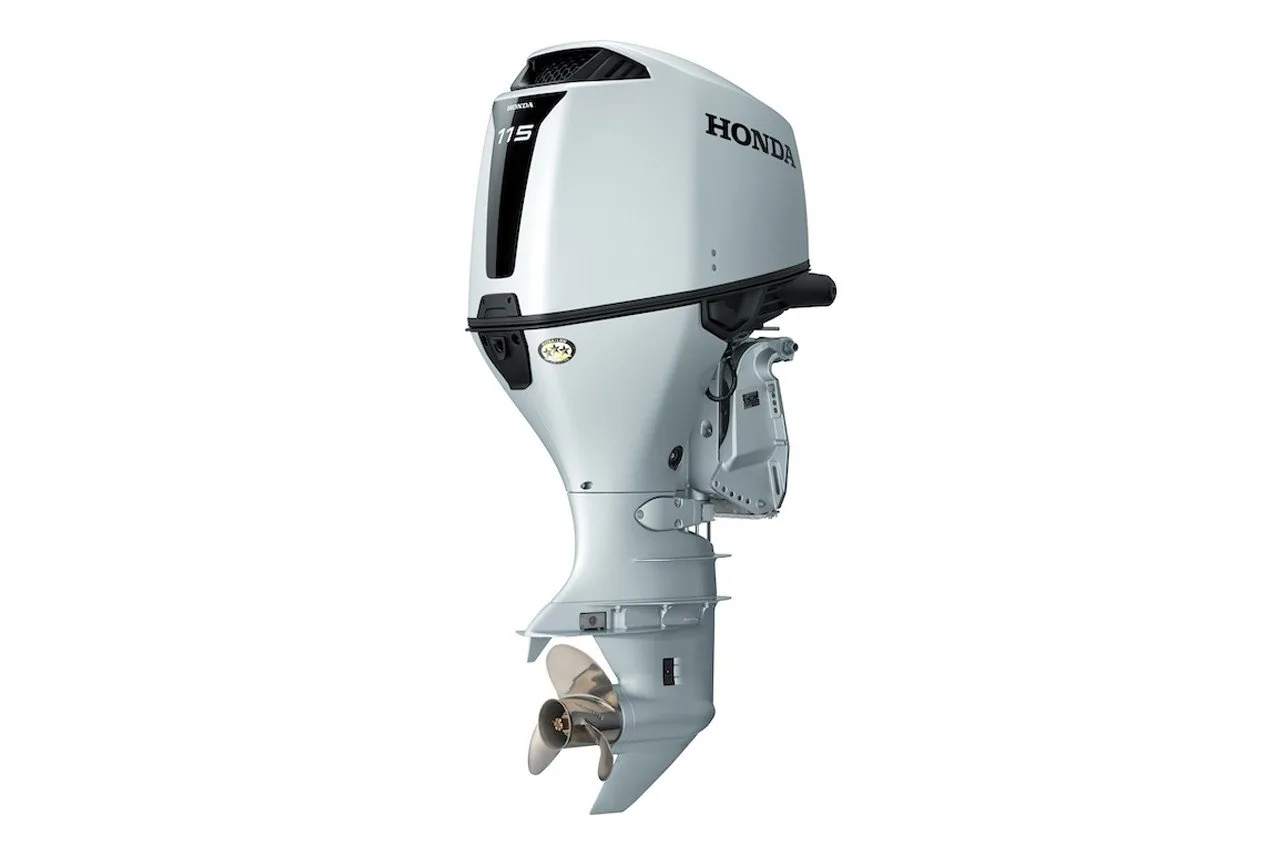

Fit the Honda BF115JK1XDA 115HP Outboard to a digital-ready boat that requires a 25-inch X-long shaft and electronically managed controls. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and produces 115 HP at 5,250 RPM for properly rated center consoles and other recreational hulls. Honda BF115JK1XDA is an iST drive-by-wire outboard with Programmed Fuel Injection, electric starting, and Power Trim & Tilt. The X-long configuration gives this model a different installation requirement from the 20-inch version.

The 485-lb dry weight should be considered before a repower, especially when the previous motor was lighter. Engine output is specified across a 4,500–6,000 RPM full-throttle range, giving owners a reference for propeller and hull setup. The 40-amp alternator provides 30 charging amps for supported equipment. The listed oil capacity is 6.7 L with filter, while gearcase lubricant specifications and service intervals require confirmation from the applicable Honda documentation.

Honda BF115JK1XDA iST 25-Inch Outboard for Digital Helm Systems

- Use the 25-inch X-long shaft on boats designed for taller transom mounting.
- iST Drive-by-Wire — provides Intelligent Shift and Throttle control for supported digital helm systems.
- 2,354 cc DOHC four-cylinder architecture produces 115 HP at 5,250 RPM.
- 485 lbs dry weight requires transom strength, balance planning, and careful repower evaluation.
- Programmed Fuel Injection manages fuel delivery within the specified 4-stroke engine package.
- Power Trim & Tilt allows engine-angle adjustment from compatible helm controls.
- 40 amps total, including 30 charging amps, supplies supported onboard electrical equipment.
- NMEA-compatible digital installations should be checked against the boat’s existing controls and displays.

Why Choose the Honda BF115JK1XDA

The 25-inch shaft and iST control system make this model a focused choice for taller transoms and digital helm installations. It gives properly rated boats a 115 HP option while allowing the operator to use electronically managed shifting and throttle control through compatible Honda Marine equipment.

- 25-inch shaft fits compatible X-long transoms
- iST control suits digital-ready boats
- 115 HP supports approved center consoles

Applications & Use Cases

Honda BF115JK1XDA suits digital-ready center consoles and other recreational boats requiring a 25-inch shaft. It can be used for fishing, coastal cruising, family outings, and harbor travel when the hull accepts the 485-pound engine and the iST system is supported by the boat’s rigging.

- Digital-ready center consoles with tall transoms
- Recreational fishing boats using iST controls
- Coastal cruising with 115 HP propulsion

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L engine oil capacity with filter, gearcase lubricant service, filter replacement, spark plug inspection, cooling-system checks, and iST control maintenance. Confirm digital rigging compatibility, warranty registration, and dealer support before purchase.
