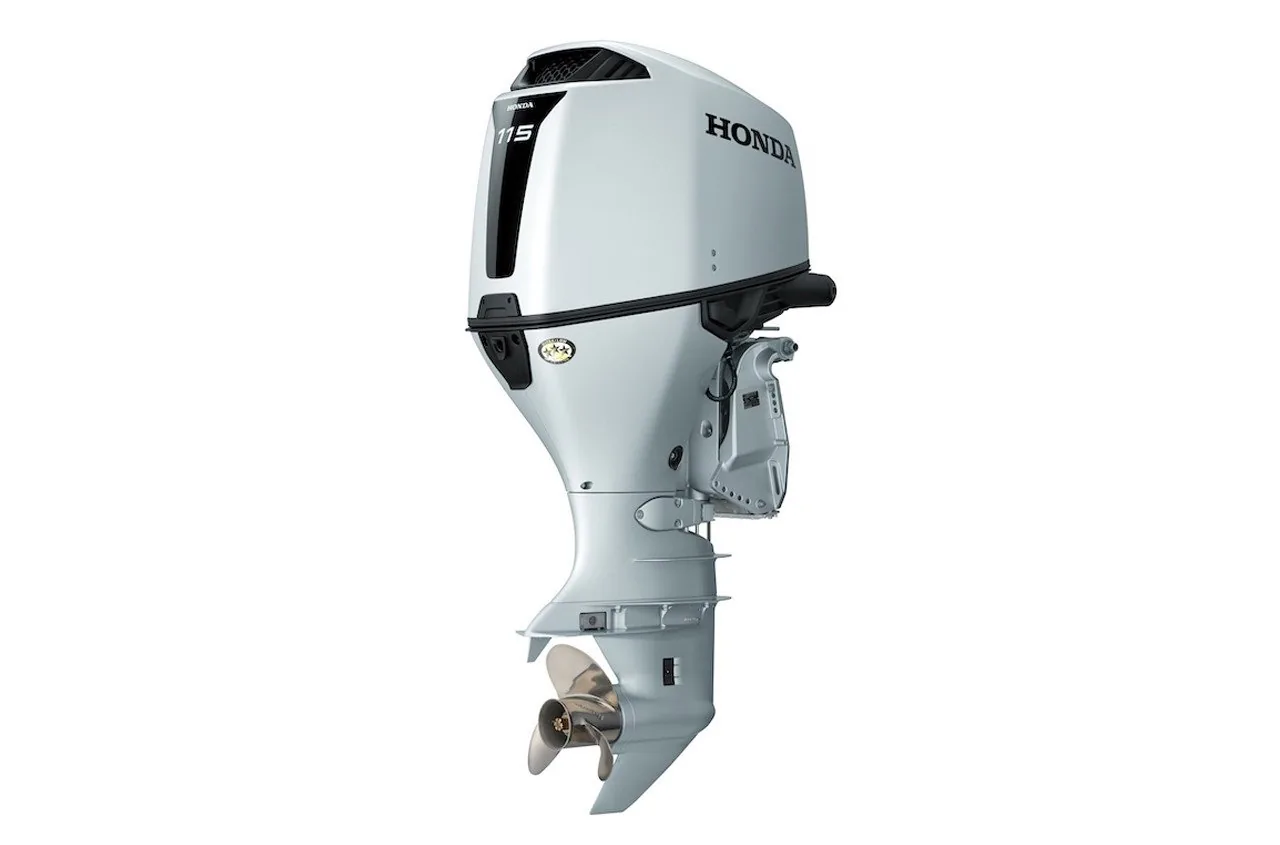

Pair the Honda BF115JK1LRA 115HP Outboard with a 20-inch-transom boat when traditional mechanical controls are preferred for freshwater fishing and recreational operation. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and produces 115 HP at 5,250 RPM. Honda BF115JK1LRA is a 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The mechanical-control layout keeps throttle and shifting connected through the boat’s conventional rigging system.

The 472-lb dry weight should be included in repower calculations, particularly when replacing a lighter outboard. A 4,500–6,000 RPM full-throttle range provides a practical reference for propeller setup, while the 2.14:1 gear ratio supports standard forward, neutral, and reverse operation. The 40-amp alternator supplies 30 charging amps for supported accessories and marine electronics. Engine oil capacity is listed at 6.7 L with filter; gearcase lubricant capacity and service timing should be checked in the applicable Honda manual.

Honda BF115JK1LRA Mechanical-Control Setup for 20-Inch Transoms

- Rig the 20-inch long shaft to compatible freshwater aluminum or fiberglass sport boats.
- DOHC Powerhead — delivers 115 HP at 5,250 RPM from a 2,354 cc four-cylinder engine.
- 472 lbs dry weight belongs in transom, balance, trailer, and repower calculations.
- Programmed Fuel Injection controls fuel delivery for the supplied 4-stroke engine configuration.
- Use remote mechanical controls for conventional helm-based throttle and gear operation.
- Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
- 40 amps total with 30 charging amps supports compatible onboard electrical equipment.
- The 4,500–6,000 RPM operating range helps owners evaluate propeller selection after installation.

Why Choose the Honda BF115JK1LRA

This mechanical version suits owners who want a familiar control arrangement rather than an iST digital system. The 20-inch shaft matches a common long-transom layout, while the 115 HP rating gives a properly rated sport or fishing boat a clear repower option without changing to electronic helm controls.

- Mechanical controls simplify conventional rigging
- 115 HP suits approved freshwater sport boats
- 30 charging amps support marine accessories

Applications & Use Cases

Honda BF115JK1LRA is intended for freshwater aluminum and fiberglass sport boats with a compatible 20-inch transom. It can be used for fishing, family cruising, lake travel, and general recreational boating when the hull supports the engine’s 472-pound weight, 115 HP output, and remote mechanical control requirements.

- Freshwater aluminum fishing boats
- Fiberglass sport boats with long transoms
- Recreational hulls using mechanical controls

Warranty, Support & Maintenance

The supplied product information identifies a 5-year non-declining standard warranty. Service should follow the applicable Honda owner’s manual and include the 6.7 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system inspection, remote controls, and Power Trim & Tilt checks. Confirm warranty registration and dealer coverage before installation.
