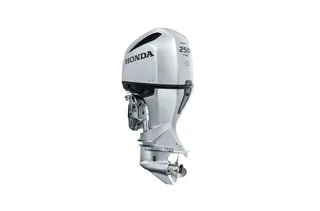

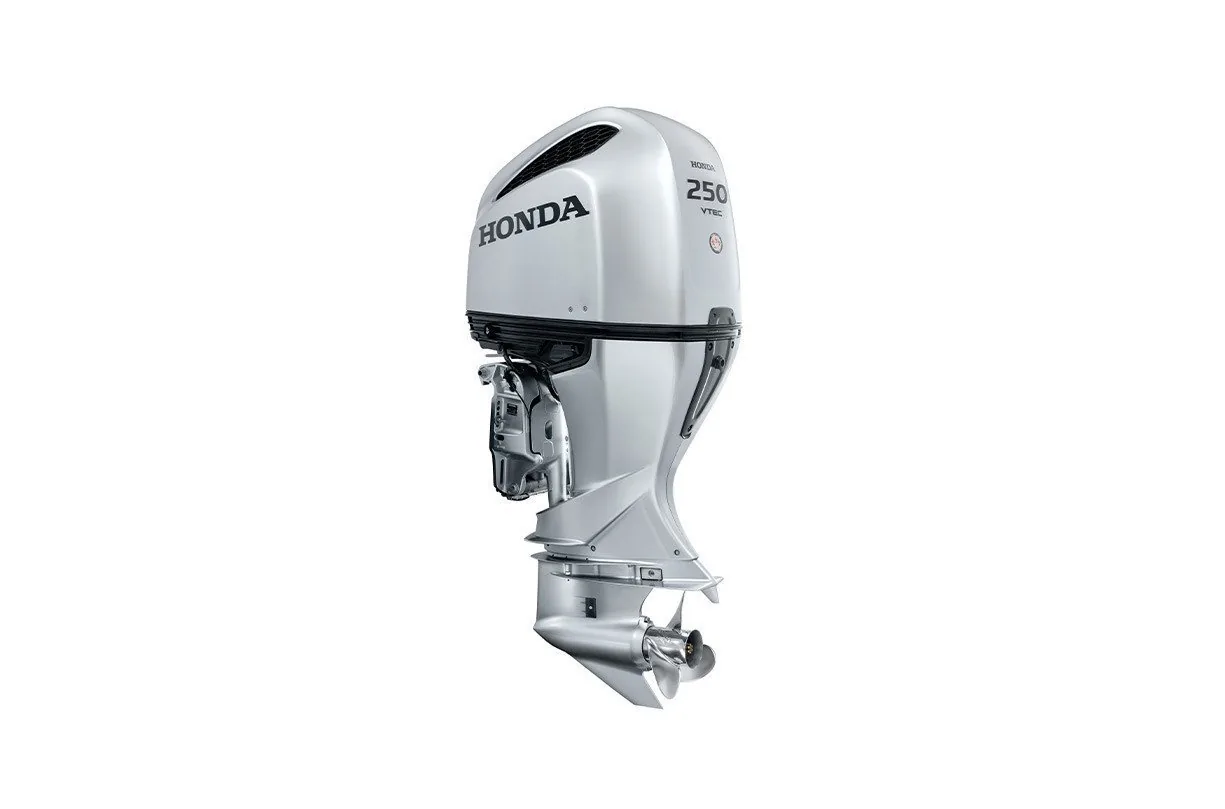

Honda BF250DUCDA 250HP iST 30″ Counter-Rotation

The Honda BF250DUCDA is a 250hp counter rotation outboard designed with a 30-inch ultra-long shaft for multi-engine offshore boats. This 3.6-liter V6 platform produces immense structural density through its 3583 cc displacement while maintaining an optimized dry weight of 642 lbs to maximize pure marine performance. Engineered explicitly for deep-V transom configurations, the 30-inch shaft length helps support ideal propeller depth and balanced tracking across heavy-duty fiberglass hulls navigating rough open ocean waters.

The 5300 to 6300 RPM operating range should be matched to the boat, load, propeller, and intended use. The 2.00:1 gear ratio should be matched with an appropriate propeller and boat setup. under heavy loads. This Japanese-built outboard leverages advanced block harmonics to eliminate low-frequency hull vibrations during severe long-range deep-sea operations.

Technical Specifications of Honda BF250DUCDA

- Programmed fuel injection precisely regulates air-fuel mixtures to deliver high thermal efficiency across all cylinders.
- A heavy-duty 90 gross amp alternator generates power to keep house battery banks charged.
- The intelligent shift and throttle drive-by-wire system replaces complex mechanical links with instant digital throttle response.
- The advanced power trim and tilt mechanism simplifies trailing and shallow-water operation by moving the lower unit out of harm.
- An extensive 7.8-liter oil sump helps support optimal thermal dissipation and continuous lubrication during hard wide-open throttle runs.
- The specialized counter-rotation gearcase balances out propeller torque to maintain tracking on multi-engine express cruisers.

VTEC Variable Valve Timing

Variable valve timing and lift electronic control adjust the intake valves on this 24-valve single overhead camshaft V6 to optimize total thermal efficiency. This engineering process shaves critical response lag off the powerhead while drastically improving torque delivery under severe offshore environments.

Programmed Fuel Induction Unit

Programmed fuel injection sprays gasoline straight into the intake tracks for clean combustion cycles on 86 octane fuel. This delivery system is designed to support immediate throttle response and flawless cold starts during changing early morning coastal marine conditions.

Counter Rotating Propeller Gearcase

Oversized internal gears and a streamlined lower unit maximize hydrodynamic thrust while canceling out heavy steering pull on multi-engine alignments. This mechanics minimizes lower-unit chatter while ensuring steady propeller tracking when backing down on game fish.

Intelligent Digital Control Setup

Digital electronic control networks integrate seamlessly with the iST platform to handle intensive drive-by-wire needs automatically. This setup safely coordinates with the charging loop to sustain modern multifunction displays and gyro stabilizers without battery drain.

Premium Multi Engine Vessel Match

Premium offshore multi-engine center consoles, commercial catamarans, and luxury tritoons from 24 to 34 feet are the target vessel application. The ultra-long shaft delivers leverage and structural vibration dampening when driving through steep waves.

Cowling Access And Lubrication

Fast access to critical checking points is provided by a multi-piece outer cowling structure that cuts service times down significantly. Changing the internal fluid volume remains completely clean thanks to an engineered drain plug location that prevents spoiling oil.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
