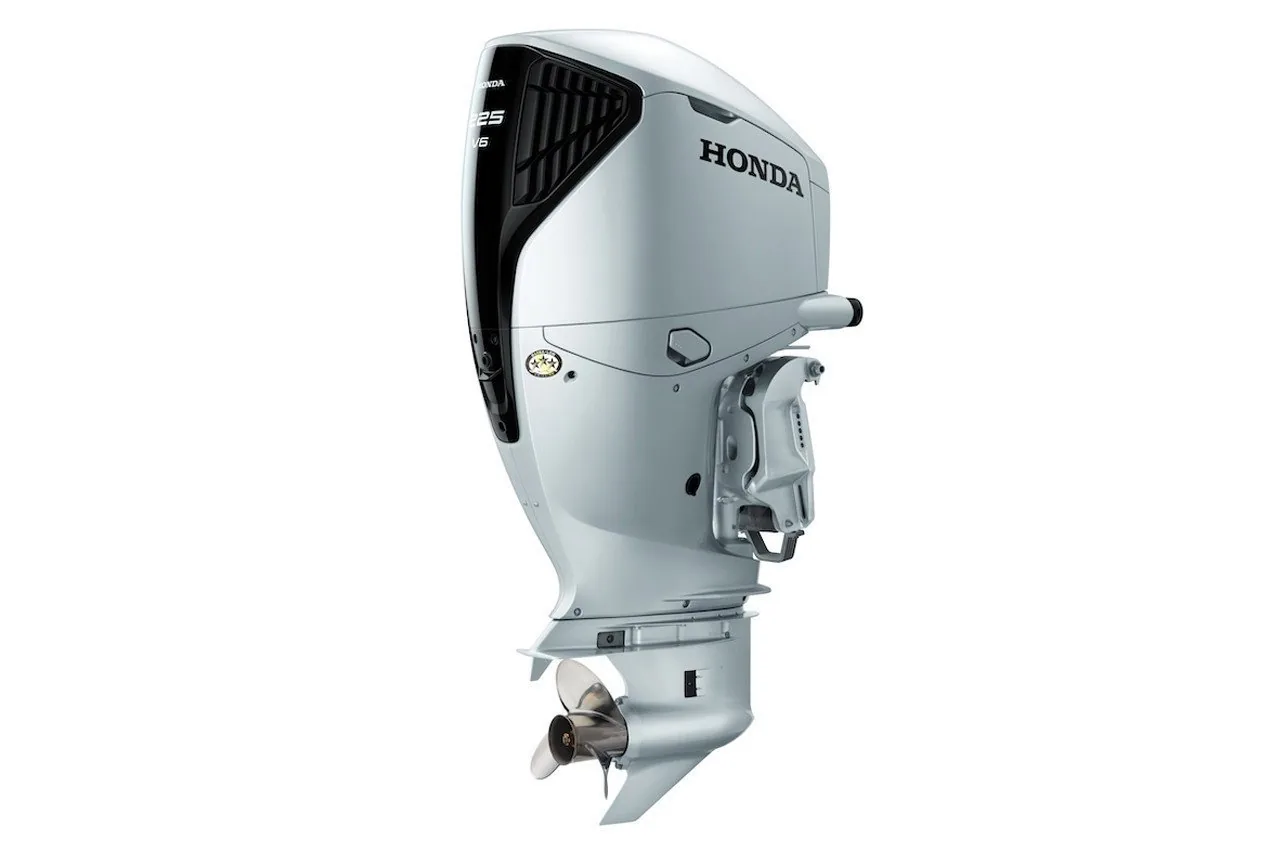

Honda BF225DK1URA 225HP 30″ Mechanical Outboard

The Honda BF225DK1URA is a 225hp standard rotation outboard designed with a 30-inch ultra-long shaft for multi-engine offshore boats. This 3.6-liter V6 platform produces immense structural density through its 3583 cc displacement while maintaining an optimized dry weight of 626 lbs to maximize pure marine performance. Engineered explicitly for deep-V transom configurations, the 30-inch shaft length helps support ideal propeller depth and balanced tracking across heavy-duty fiberglass hulls navigating rough open ocean waters.

The 5300 to 6300 RPM operating range should be matched to the boat, load, propeller, and intended use. The 2.00:1 gear ratio should be matched with an appropriate propeller and boat setup. under heavy loads. This Japanese-built outboard leverages advanced block harmonics to eliminate low-frequency hull vibrations during severe long-range deep-sea operations.

Technical Specifications of Honda BF225DK1URA

- Programmed fuel injection coordinates with advanced lean burn control for optimized fuel delivery across the powerband.
- A heavy-duty 90 gross amp alternator generates power to keep house battery banks charged.
- The remote mechanical control system replaces old cables with responsive vessel tracking adjustments.
- The power trim and tilt mechanism simplifies trailing and shallow-water operation by moving the lower unit out of harm.
- An extensive 7.8-liter oil sump helps support optimal thermal dissipation and continuous lubrication during hard wide-open throttle runs.
- The standard-rotation lower unit helps support traditional clockwise propeller spin for optimized single or primary engine thrust.

SOHC VTEC Architecture

Variable valve timing and lift electronic control adjust the intake valves on this 24-valve single overhead camshaft V6 to optimize total thermal efficiency. This engineering process shaves critical response lag off the powerhead while drastically improving torque delivery under severe offshore environments.

BLAST Instant Torque Induction

Programmed fuel injection pushes fuel straight into the intake ports while advanced spark timing improves holeshot performance on 86 octane fuel. This automated network produces crisp throttle recovery and instant starting capability when navigating treacherous inlets or heavy head seas.

Hydrodynamic Gear Housing Profile

Oversized internal gears and a streamlined lower unit maximize hydrodynamic thrust while minimizing underwater drag on high-speed hull alignments. This mechanics minimizes lower-unit chatter while ensuring steady propeller tracking when backing down on game fish.

Lean Burn Electronics Loop

Lean burn control networks integrate directly with the fuel system to maximize cruising range automatically on open water. This digital platform coordinates with a high-capacity 90-amp gross alternator to supply constant power to critical open-water electronics arrays.

Deep V Hull Integration

Deep-V offshore fishing boats, mid-to-large single-engine center consoles, and walkarounds from 22 to 30 feet are the target vessel application. The ultra-long shaft delivers leverage and structural vibration dampening when driving through steep waves.

Cowling Access And Lubrication

Fast access to critical checking points is provided by a multi-piece outer cowling structure that cuts service times down significantly. Changing the internal fluid volume remains completely clean thanks to an engineered drain plug location that prevents spoiling oil.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
