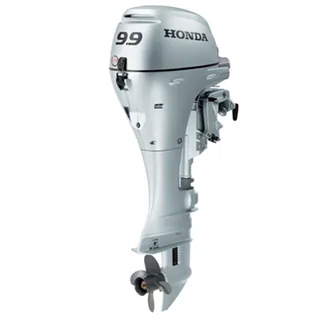

Honda 9.9 HP, BF10DK3LR

Horsepower: 9.9 HP (4-stroke)
Shaft Length: 20″
Starting: Electric
Drive Type: Remote Steering
Weight: 98 lbs

Features

Reliable, efficient 4-stroke design
Easy One Hand Starting
True 5 Warranty
Ultra Low 3 Star CARB Emissions
4-Front Corrosion Protection System – Fights the elements
Available with Power Thrust Design (BFP) – better performance for heavy loads
Reverse Exhaust Relief – increased maneuverability (BFP models)
Longer Tiller Handle – improved control
PGM Ignition – optimal operation
Engine Alert System – Keeps you informed
Best in Class High Output Charging
Lightweight Rounded Design
Auto Start Enrichment – easy starts
Pendulum Mount System – smooth operation
EZ Steer Friction Control
Shallow Water Drive
Up Front Tiller Controls – convenient shifting
Integrated Carrying Handle – easier transport
Positive Lubrication for better durability

Type: 4-Stroke SOHC 2 Cylinder/4 Valves
Displacement: 222 cc (13.5 cubic inches)
Bore & Stroke: 58 mm x 42 mm (2.3 x 17 inches)
Full Throttle RPM Range: 5,000-6,000 RPM
Rated Power: 9.9 HP @ 5,000 RPM
Cooling System: Water Cooled
Fuel Delivery: 1 Carburetor
Ignition System: PGM-IG
Starting System: Electric/Recoil
Exhaust: Through Hub
Lubrication: Wet Sump
Trim Range: 5 Stage 4°-8°-12°-16°-20°
Tilt Range: 72°
Gear Ratio: 2.33:1
Gear Shift: F-N-R
Alternator with voltage regulator: 12-Amp (148 watt)
Propeller: 4-Blade Aluminum
Diameter X Pitch: 9¼ x 8 inches
Oil Pressure Alert: Standard
Temperature Alert: Standard
Rev-Limiter: Standard
Overall Width: 340 mm/13.4 inches
Transom Height: 508 mm/20 inches
Dry Weight: 44 kg/98 lbs.
