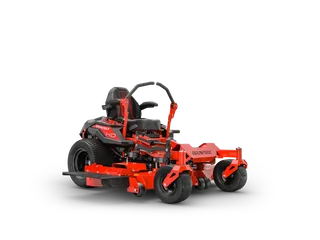

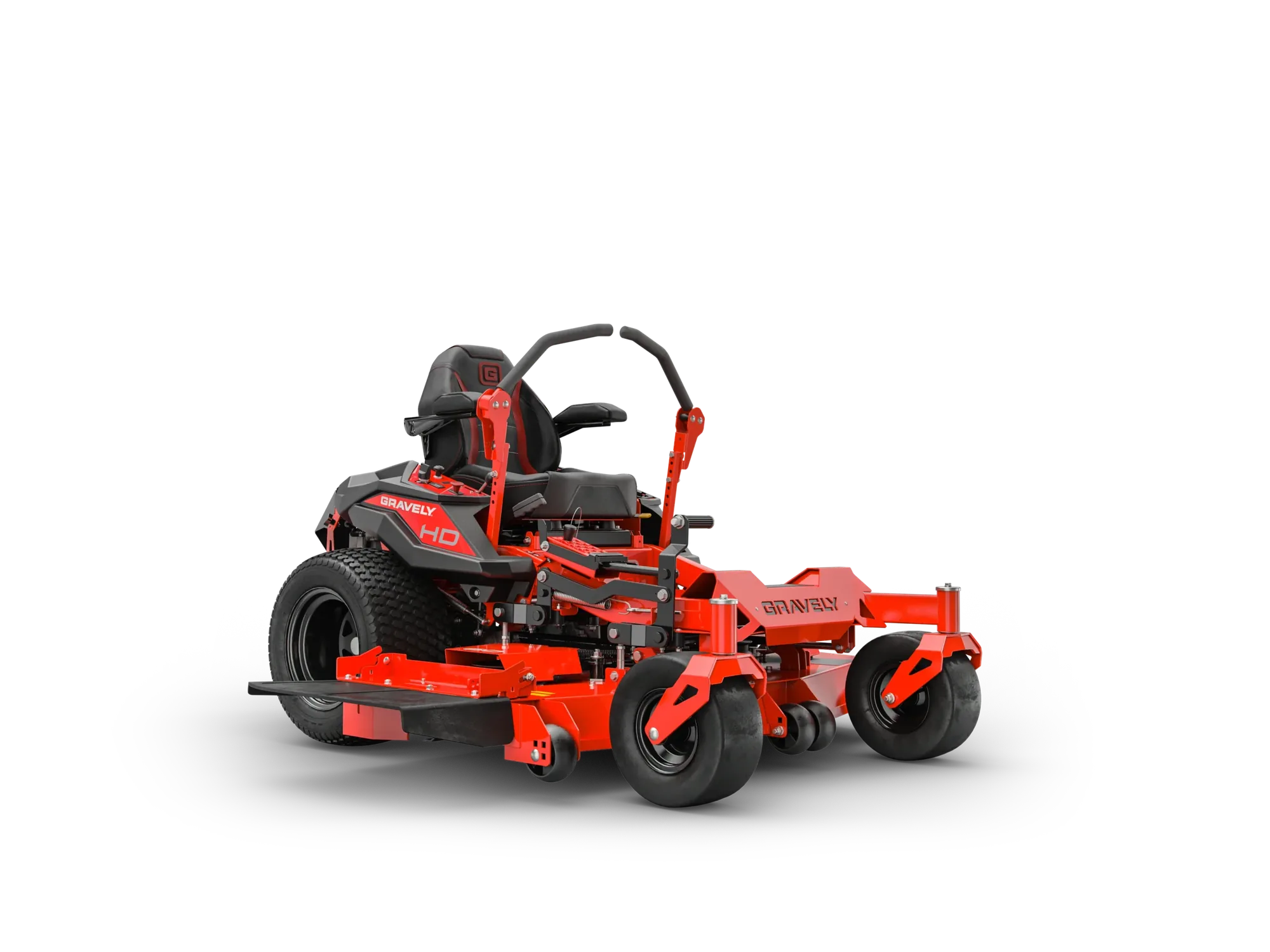

Gravely ZT HD 52in 23HP Kawasaki Zero Turn Mower – Heavy Duty

Suburban acreage managers relying on the Gravely ZT HD 52in 23HP Kawasaki zero turn mower eliminate transmission overheating and lost cutting time on large properties. Operating wide cutting decks across rough ground strains light-duty transmissions, causing fluid breakdown and sluggish steering on hot summer afternoons. Gravely equips this heavy-duty machine with commercial-grade Hydro-Gear ZT-3100 serviceable transaxles, an expansive 52-inch fabricated 10-gauge deck, and a commercial 23HP Kawasaki FR691V engine built to maintain full cutting speed.

Dual Hydro-Gear ZT-3100 transaxles incorporate external spin-on oil filters and steel cut gears, delivering positive wheel torque up to 8 MPH forward transport speed. The heavy welded 1.5-inch by 3-inch steel tube chassis resists torsional twist when crossing drainage swales, keeping the cutting deck level for a scalp-free turf finish. An adjustable high-back suspension seat with padded armrests isolates the operator from harsh ground bumps, ensuring comfortable all-day mowing across uneven acreage.

Core Mechanical Specifications of Gravely ZT HD 52in

- 52-Inch Welded 10-Gauge Steel Deck: Built with heavy plate steel to withstand impacts from hidden tree roots and rocks.
- 23HP Kawasaki FR691V V-Twin Engine: Supplies reliable combustion displacement to power through thick grass without RPM fade.
- Hydro-Gear ZT-3100 Serviceable Drives: Commercial transaxles feature spin-on filters and 1-inch axle shafts for long durability.
- Foot-Assisted Deck Height Selector: Adjusts cut heights across 15 distinct positions from 1.5 to 5 inches with an easy-select pin.
- Upgraded High-Back Suspension Seat: Features padded armrests and lumbar contouring to dampen rough terrain vibrations.
- Large 20-Inch Rear Turf Tires: Wide drive tires distribute machine weight to prevent lawn compaction and wheel rutting on wet sod.
- Constant Belt Tensioning System: Self-adjusting idler arm maintains correct deck belt tension to eliminate manual adjustment downtime.

Contractor Benefits & Long-Term Reliability

This heavy-duty zero-turn mower provides the commercial stamina and wide cutting capacity required to maintain expansive country properties.

- Serviceable Hydro-Gear ZT-3100 transaxles feature spin-on filters that simplify fluid changes, extending transmission operating life.
- A heavy welded 10-gauge deck handles continuous mowing on multi-acre properties without cracking deck weld seams.

Acreage Capacity & Transport Clearance

Covering up to 4.2 acres per hour at top forward speed, this 52-inch machine clears wide country lawns rapidly and requires 56 inches of trailer width with the chute raised.

Factory Warranty Terms & Service Guidelines

- Gravely provides a 4-Year or 400-hour limited warranty covering the chassis, transaxles, and fabricated cutting deck.

Perform engine oil changes every 100 hours with 10W-30 oil, inspect deck belts monthly for proper tension, and remove grass buildup from under the deck baffles after wet mowing. Order the Gravely ZT HD 52in 23HP Kawasaki zero turn mower from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
