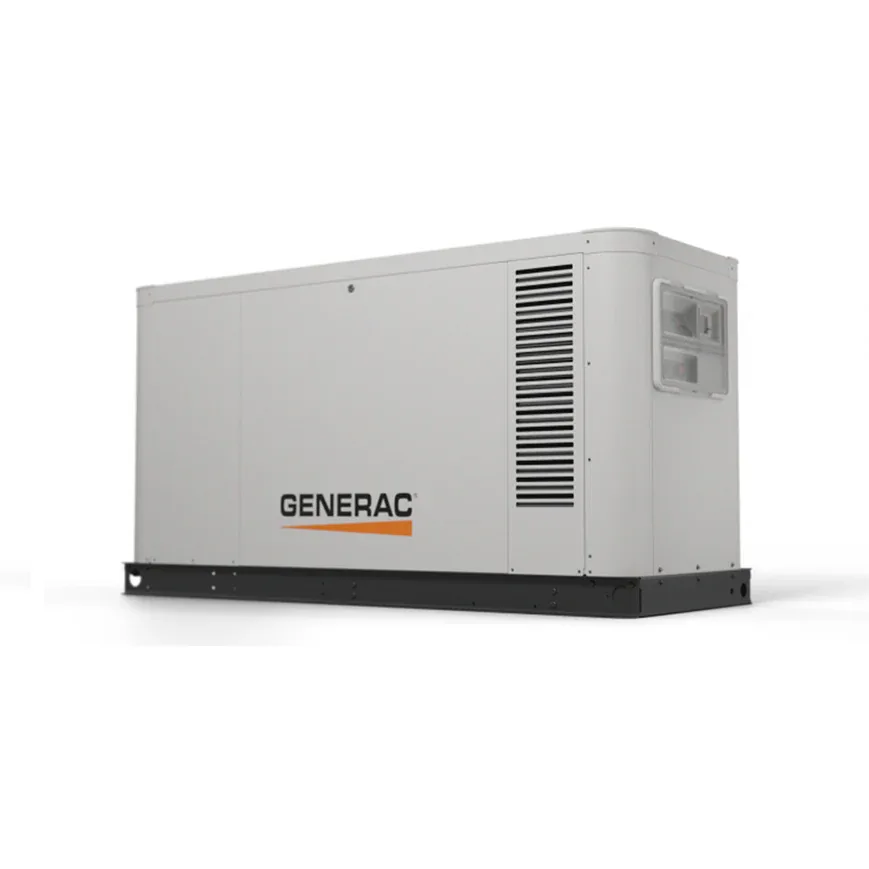

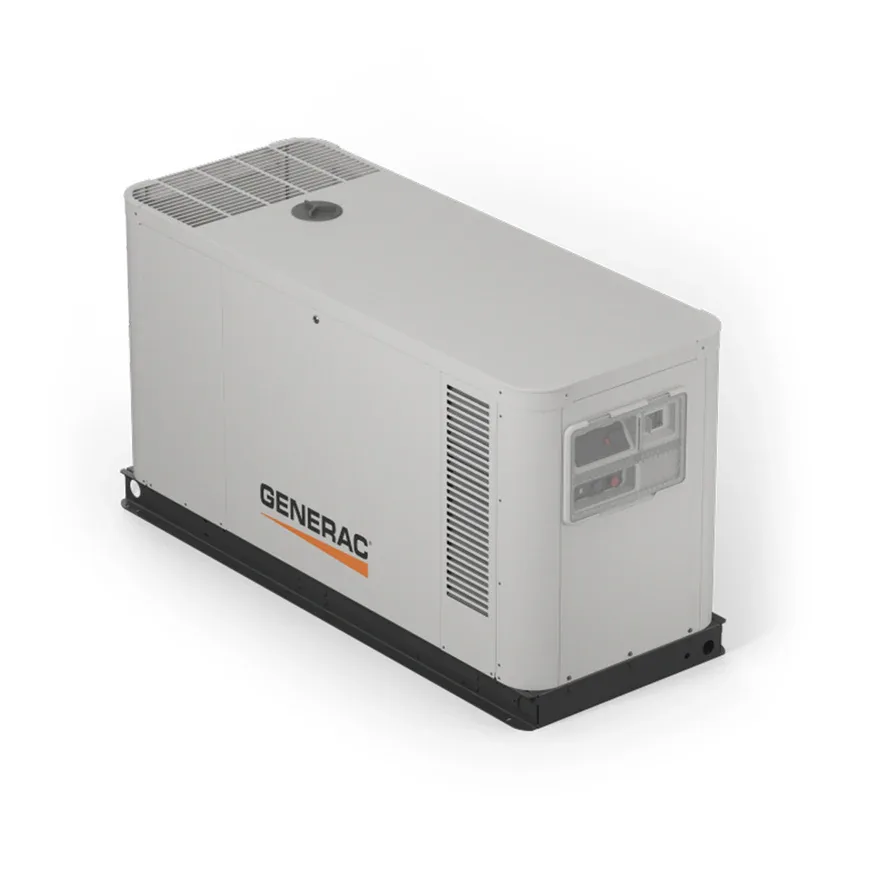

Generac XG04045CNAX 45kW Standby Generator

Power industrial refrigeration racks with the Generac XG04045CNAX Commercial Standby Generator, engineered specifically for commercial distribution hubs and institutional facilities operating 277V and 480V 3-Phase grids. Delivering 45 kW continuous prime electrical power, this stationary generator keeps multi-zone walk-in freezers, high-bay facility lighting, and commercial kitchen HVAC systems active during severe weather blackouts.

Surrounded by a weather-protective steel enclosure, the industrial 4.5L four-cylinder water-cooled engine operates at an efficient 1800 RPM. The heavy-duty revolving-field alternator features 100 percent copper windings insulated to Class H standards, blocking stator degradation under continuous full-load runs. With a dry weight of 1975 lbs, the stationary chassis perimeter measures 77 inches long by 34 inches wide by 45 inches high.

Key Features of Generac XG04045CNAX

Facility managers who buy Generac XG04045CNAX commercial standby generator units obtain industrial commercial power equipment capable of powering high-voltage distribution networks. The digital Evolution controller monitors utility lines, initiating automatic transfer switch sequences the moment line voltage deviates from programmed parameters.

- 45 kW continuous high-voltage electrical capacity powers commercial chillers, elevators, and large exhaust hoods.
- 277V and 480V 3-Phase wye output matches high-voltage commercial electrical switchboards without step-up transformers.
- Liquid-cooled 4.5L engine running at 1800 RPM extends overhaul intervals and lowers mechanical noise levels.
- Sturdy steel weather enclosure coated with RhinoCoat finish prevents corrosion from chemical and salt exposure.
- XG04045CNAX electronic governor stabilizes frequency within 0.25 percent during large inductive compressor starts.
- Evolution digital controller features an illuminated multilingual display showing real-time voltage and fault logs.
- Continuous natural gas or propane operation ensures uninterrupted fuel access during extended municipal power outages.
- Protective automatic shutdowns prevent damage upon low oil pressure, high coolant temperature, or battery discharge.

High Voltage Dynamic Surge Tolerances

Emitting 68 dB(A) at 23 feet inside its sound-dampened steel cabinet, this generator complies with municipal boundary decibel ordinances. Total harmonic distortion remains under 5 percent at 60 Hz, holding line frequency steady within 0.15 Hz during sudden 20 kW electrical load additions. Operating on natural gas, fuel burn measures 615 cubic feet per hour at half load, sustaining multi-day runs.

Concrete Base High Voltage Clearances

Install this generator on an exterior poured concrete slab at least 5 feet away from commercial doors, windows, and air intakes. High-voltage 480V output wiring must run through rigid metal conduit to an approved automatic transfer switch, utilizing qualified high-voltage termination lugs connected to the facility main grounding bus.

Stationary Maintenance Equipment Safety Guidelines

Removable side panels allow electrical technicians unhindered access to spark plugs, coolant hoses, and wiring terminals. This high-voltage generator is not engineered for mobile food service vehicles, residential 120V single-phase panels without step-down transformers, or unventilated indoor mechanical rooms.

- Check engine oil level and verify radiator coolant levels before each shift.
- Replace engine lubricating oil and spin-on filter canisters every 200 runtime hours.
- Test battery specific gravity and clean spark plugs every 12 months.

Commercial Warranty Freight Manifest Contents

Generac provides a 5-Year limited warranty covering the 4.5L engine, high-voltage alternator, and Evolution controller. The heavy crate contains the Generac XG04045CNAX generator, factory steel enclosure, flexible fuel hose, technical wiring schematics, and factory pre-commissioning documentation.
