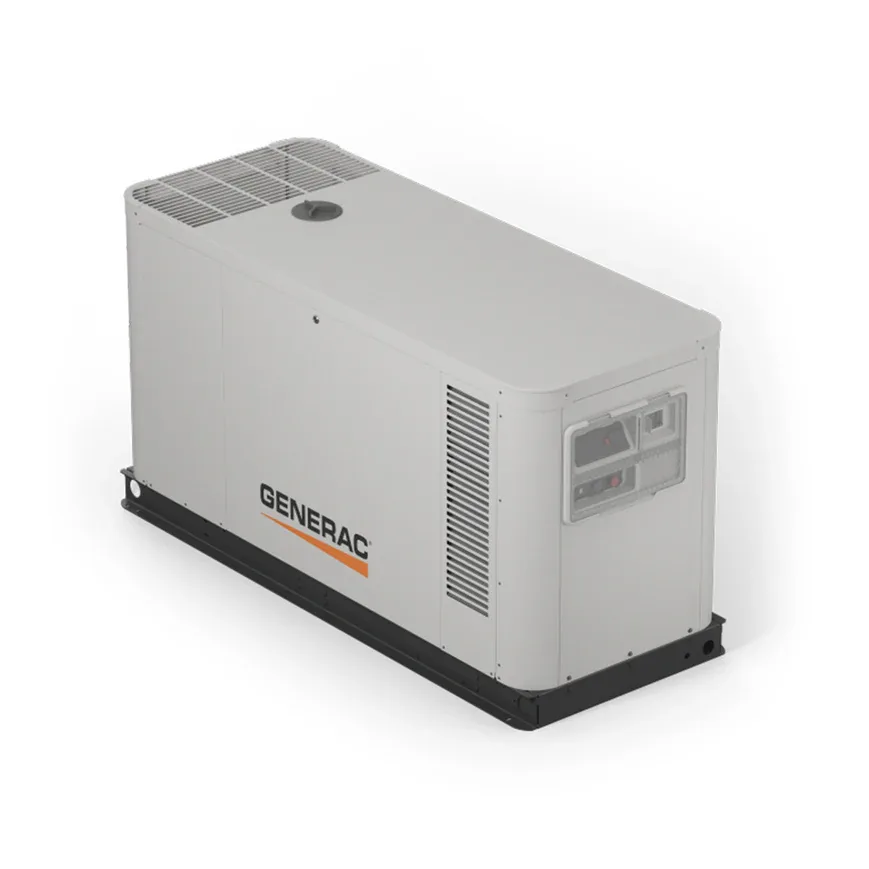

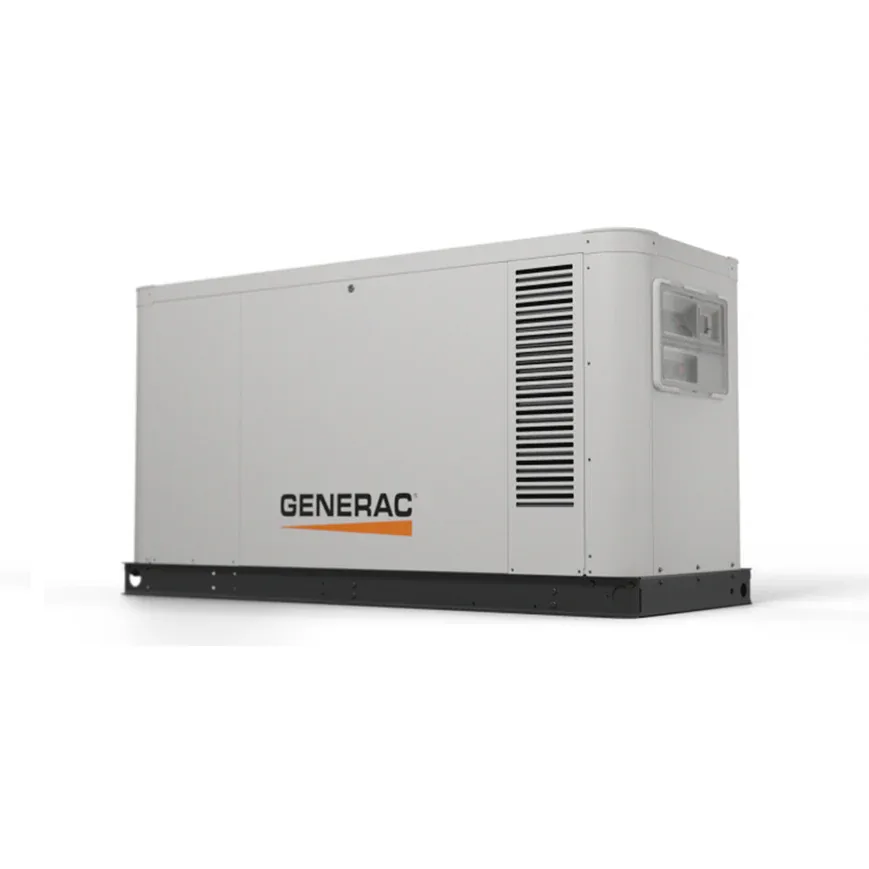

Generac XG03245CNAX 32kW Standby Generator

Energize multi-circuit commercial kitchen breaker panels through the Generac XG03245CNAX Standby Generator, providing 32kW continuous three-phase power for restaurants, bakeries, and cold-storage distribution facilities. Driven by a liquid-cooled engine operating at 1800 RPM, it runs primary distribution switchgear. It prevents catastrophic inventory loss during prolonged municipal utility grid failures without requiring manual mid-storm refueling.

Solid RhinoCoat aluminum enclosure panels isolate operating sounds while providing complete protection from heavy rain and windblown moisture. The commercial liquid-cooled engine incorporates full-pressure lubrication, spin-on oil filtration, and cast-iron cylinder walls for extended service intervals under continuous load. Dry weight measures 930 lbs across external dimensions of 62.2 inches long by 29.5 inches wide by 36.3 inches high. This Generac 32kW three-phase plant connects straight to municipal natural gas lines or on-site liquid propane tanks.

Key Features of Generac XG03245CNAX

Supermarket operators buy Generac XG03245CNAX commercial power equipment to supply clean three-phase power to sensitive computer networks and heavy walk-in chillers simultaneously. Precision isochronous governing keeps generator frequency stable under sudden electrical load shifts.

- 32kW three-phase continuous output feeds commercial reach-in chillers and prep tables without voltage drop.
- 120/240V or 120/208V three-phase layout interfaces directly with standard commercial distribution boards.
- Liquid-cooled engine operates at 1800 RPM for prolonged mechanical lifespan and quiet running.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- RhinoCoat aluminum cabinet withstands coastal salt air and severe outdoor weather.
- Digital Evolution controller tracks system frequency, line voltage, and battery health on this XG03245CNAX standby system.
- Electronic governor stabilizes rotational speed to stop voltage sags during motor start events.

Three Phase Low Speed Electrical Dynamics

Delivering utility-grade electrical power, this XG03245CNAX standby system caps total harmonic distortion beneath 5 percent across all load stages. Acoustic output remains at 60 dB(A) during quiet test exercise and registers 71 dB(A) at 23 feet under full continuous load. Digital governor controls respond in milliseconds to large inductive motor starts, dampening line sags so that walk-in cooler compressors and exhaust fans start without tripping secondary branch breakers.

Subpanel Transfer Interlock Clearances Bounds

Position the unit outdoors on a concrete slab maintaining at least 18 inches of clearance from building walls and 5 feet from operable windows, doors, and vent openings. Route gas supply lines through an approved shutoff valve and sediment trap. Wire the power outputs to a dedicated double-throw transfer switch using certified copper conductors.

Hands Free Exercise Operational Boundaries

The Evolution digital controller automates weekly self-tests without human intervention, eliminating physical starting strain. This stationary emergency generator is NOT engineered for mobile vehicle mounting, enclosed indoor basements, or running on standard pump gasoline.

- Inspect engine oil level and clear enclosure louvers of windblown debris every 50 runtime hours.
- Replace crankcase motor oil and the spin-on oil filter every 100 runtime hours.
- Inspect natural gas line connections and propane fittings every 250 runtime hours.

Factory Warranty Pallet Item Manifest

This Generac 32kW three-phase plant carries a 5-Year limited warranty covering electrical modules and mechanical parts. The heavy wooden shipping pallet holds the generator unit, flexible fuel connection line, installation base hardware, and complete technical documentation.
