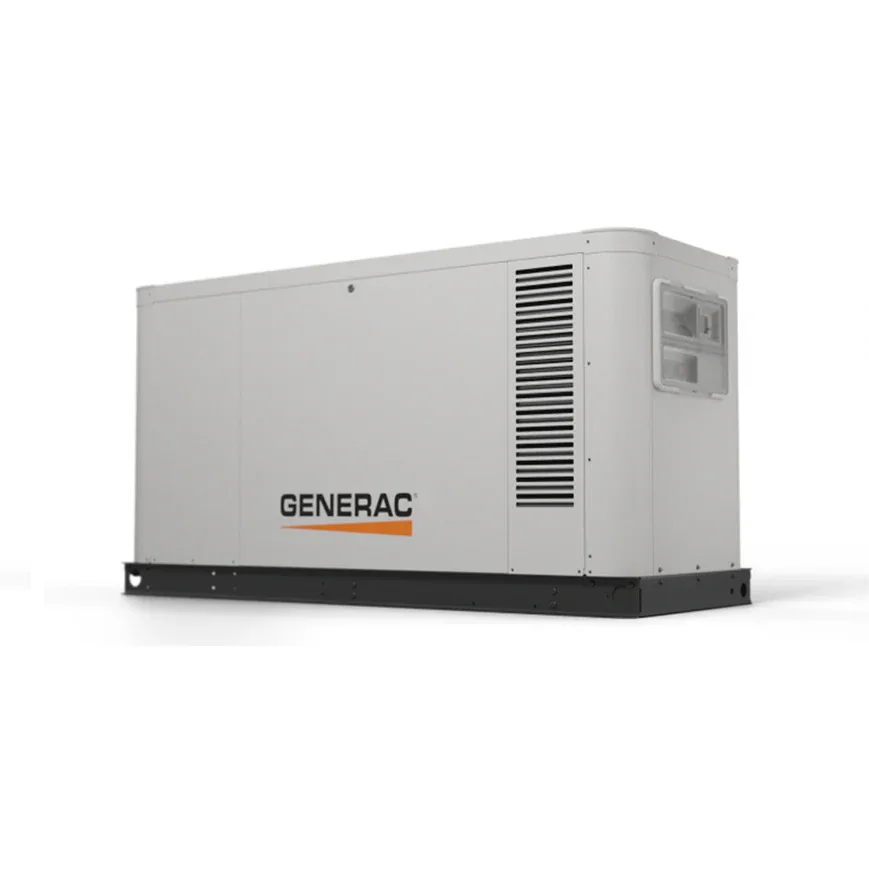

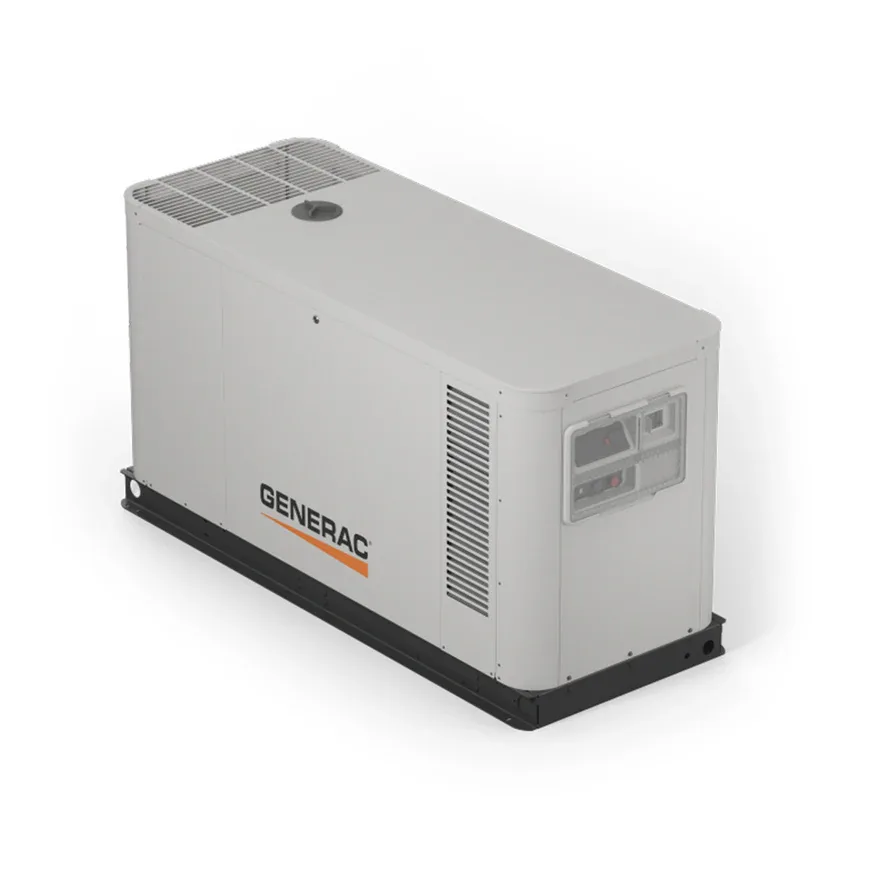

Generac XG03245ANAX 32kW Standby Generator

Corrosion-resistant marine-grade aluminum panels encase the Generac XG03245ANAX Standby Generator, delivering 32kW continuous single-phase 120V and 240V electricity for restaurant backup and light commercial facilities. Driven by a liquid-cooled engine operating at 1800 RPM, it runs primary breaker subpanels. It prevents food spoilage during municipal blackouts while offering durable steel frame protection and low sound output.

An engineered RhinoCoat aluminum housing provides impact resistance and weather defense in harsh outdoor environments. The liquid-cooled industrial engine features cast-iron cylinder liners, closed-loop liquid cooling, and full-pressure lubrication for extended service intervals under continuous prime draw. Dry weight measures 930 lbs across enclosure dimensions of 62.2 inches long by 29.5 inches wide by 36.3 inches high. This Generac 32kW commercial generator links straight into municipal natural gas lines or on-site liquid propane tanks.

Key Features of Generac XG03245ANAX

Facility directors buy Generac XG03245ANAX commercial power equipment to back up whole-facility refrigeration banks without the maintenance burdens of high-speed air-cooled generators. An eighteen-hundred RPM liquid-cooled architecture ensures quiet and continuous operation across multi-day outages.

- 32kW single-phase continuous output runs commercial reach-in chillers and prep tables without voltage drop.
- Liquid-cooled engine maintains continuous high torque output across prolonged emergency deployments.
- 1800 RPM low-speed operation reduces mechanical stress and acoustic emissions compared to high-speed alternators.
- RhinoCoat aluminum enclosure resists weather corrosion and jobsite abrasion in damp environments.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- Evolution controller tracks battery charge, line voltage, and automated exercise schedules on this XG03245ANAX power plant.
- Automatic transfer switch compatibility enables automated building changeover during utility dropouts.

Single Phase Alternator Harmonic Regulation

Operating through a revolving-field copper alternator, this XG03245ANAX power plant produces stable 120V and 240V power under intense inductive demands. Sound levels measure 60 dB(A) during quiet exercise and 71 dB(A) at 23 feet under 50 percent continuous load. The automatic voltage regulator dampens voltage sags during multi-compressor startup events, keeping voltage fluctuations within narrow operational bands so that walk-in refrigeration units run without interruption.

Pad Placement Transfer Switch Rules

Mount this generator on a reinforced concrete pad maintaining at least 18 inches of clearance from building exterior walls and 5 feet from operable windows, doors, and building air intakes. Connect the fuel port to a certified gas regulator delivering correct water-column pressure. Route output conductors into a dedicated automatic transfer switch panel using heavy-gauge copper wiring.

Automated Controller Usability Servicing Steps

An integrated Evolution digital controller manages automatic weekly exercise cycles, cutting operator physical tasks to zero. This stationary generator is NOT engineered for portable vehicle towing, unventilated indoor mechanical basements, or running on liquid gasoline fuel.

- Check coolant level and engine lubrication reserve every 24 hours of active operation.
- Drain crankcase oil and replace the spin-on oil filter every 100 runtime hours.
- Inspect cooling radiator hoses and gas connection fittings every 250 runtime hours.

Equipment Warranty Pallet Package Manifest

This Generac 32kW commercial generator includes a 5-Year limited commercial warranty covering the engine, alternator, and digital control modules. The crated container holds the standby generator unit, flexible fuel line, enclosure door keys, battery cables, and certified factory test documentation.
