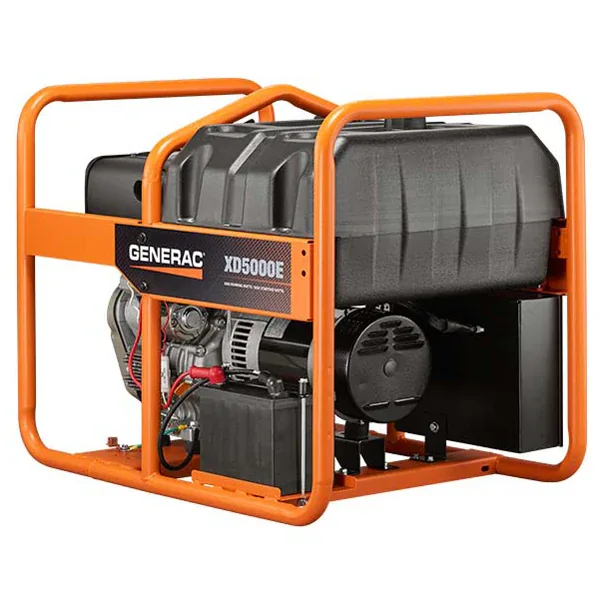

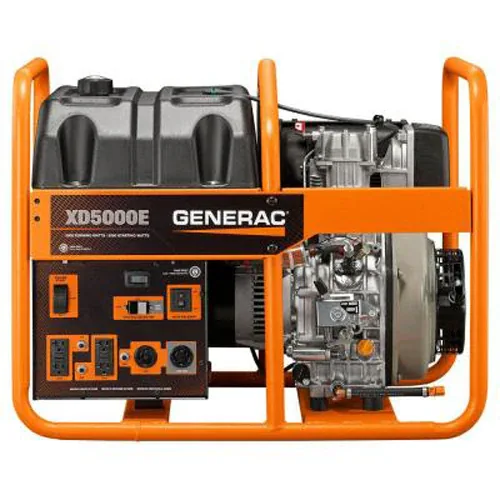

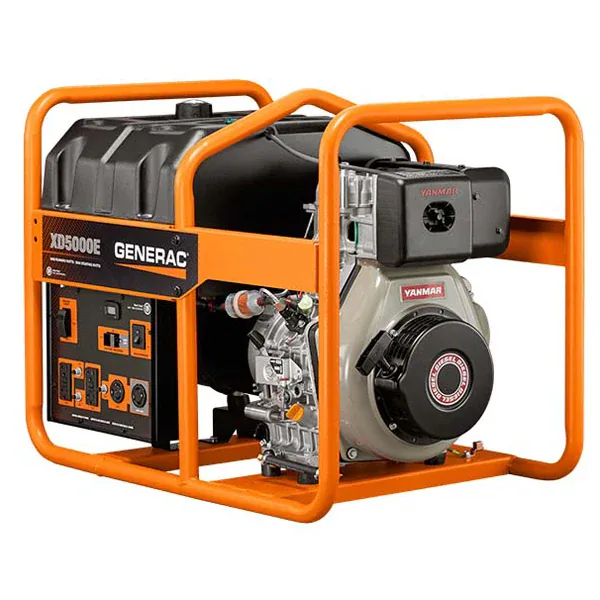

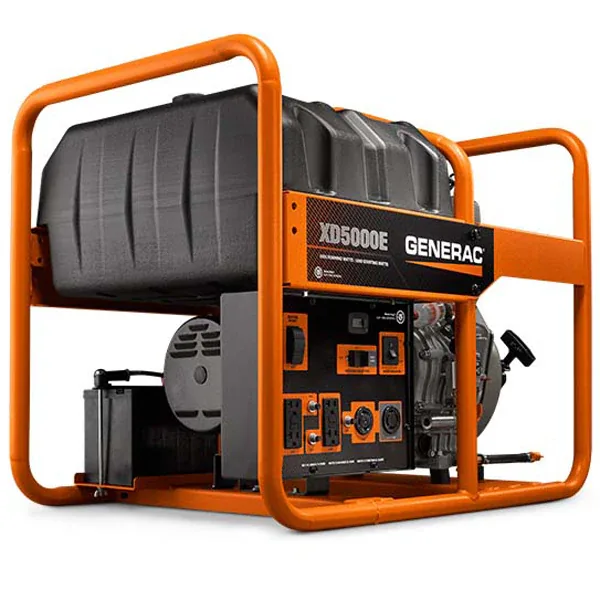

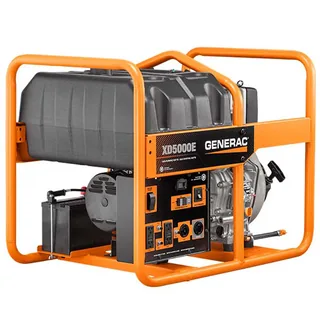

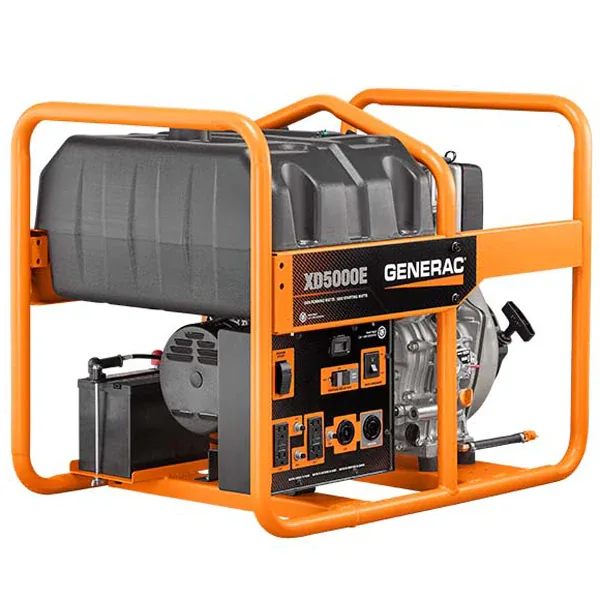

Generac XD5000E 5500W Peak Portable Generator – Diesel

Tier 4 certified industrial jobsite generation arrives with the Generac XD5000E Portable Diesel Generator, producing 5000W running and 5500W surge output for commercial food truck trailers and emergency field kitchens. Powered by a Yanmar 435cc air-cooled diesel engine, it delivers 120V and 240V power. It provides superior diesel fuel economy while running continuously across full work shifts without refueling stops.

A durable 1.25-inch tubular steel cradle with an integrated central lifting eye shields the diesel engine from severe worksite impacts. The 435cc Yanmar single-cylinder diesel engine incorporates direct injection and a cast-iron cylinder liner for long prime power service life. Unladen dry weight measures 254 lbs across frame dimensions of 31 inches long by 26 inches wide by 26.5 inches high. This Generac diesel workhorse houses a 12-gallon steel fuel tank providing 32 hours of runtime at half load.

Key Features of Generac XD5000E

Commercial mobile catering contractors buy Generac XD5000E commercial power equipment to benefit from long diesel runtime and common fuel logistics on heavy worksites. Low fuel burn rates reduce operational expenses during multi-day outdoor events.

- 5000W continuous output energizes commercial meat slicers and refrigeration prep tables without interruption.
- 5500W starting surge absorbs compressor inrush current without causing engine stalls.
- Yanmar 435cc diesel engine provides reliable continuous torque under high-amperage electrical alternator loads.
- 12-gallon fuel tank enables an exceptional 32 hours of continuous runtime at 50 percent load.
- NEMA L14-30R 30A twist-lock port connects this XD5000E diesel generator straight to manual transfer boxes.
- Automatic voltage regulator holds voltage swings within strict limits to protect equipment motors.
- Electric key start delivers prompt engine ignition without physical recoil effort.

Diesel Engine Alternator Reactive Load Capacities

Featuring a copper-wound alternator, this XD5000E diesel generator maintains continuous 60 Hz electrical output under fluctuating commercial kitchen loads. Sound pressure levels register at 74 dB(A) at 23 feet under 50 percent continuous load. The automatic voltage regulator responds in milliseconds to inductive compressor startup spikes, suppressing voltage sags that can cause reach-in cooler motors to stall. This protection shields single-phase induction motors from overheating during continuous emergency backup power runs.

Exhaust Setback Mobile Fitment Rules

Install the generator outside with a minimum perimeter clearance of 5 feet from doors, windows, and flammable surfaces. Orient hot diesel exhaust away from mobile food prep zones to ensure personnel safety. Connect service distribution through the NEMA L14-30R port or 20A duplex receptacles using heavy rubberized four-conductor cords.

Electric Starting Usability Servicing Steps

Electric key ignition provides simple starting, while a compression release lever assists cold-weather turnover. This open-frame diesel unit is NOT engineered for enclosed indoor kitchens, unventilated food truck compartments, or operating sensitive digital audio gear without supplemental line conditioning.

- Drain and refill engine crankcase oil every 50 runtime hours.
- Clean the fuel filter water separator bowl every 100 runtime hours.
- Inspect the air cleaner foam element and exhaust spark arrestor every 250 runtime hours.

Commercial Warranty Shipping Package Inventory

This Generac diesel workhorse includes a 2-Year limited commercial warranty covering the Yanmar engine block and alternator windings. The crated package holds the generator core, 12V starter battery, wheel kit, folding handle kit, oil funnel, and pre-delivery inspection sheets.
