Generac RG08045ANAX Standby Generator

Struggling to energize heavy single-phase chillers? The Generac RG08045ANAX Standby Generator generates 80kW continuous single-phase 120V and 240V electricity for large commercial kitchens and supermarket complexes. Driven by a turbocharged 4.5L liquid-cooled engine at 1800 RPM, it feeds primary service switchboards. It eliminates costly food spoilage while handling simultaneous multi-compressor startup loads without voltage sag.

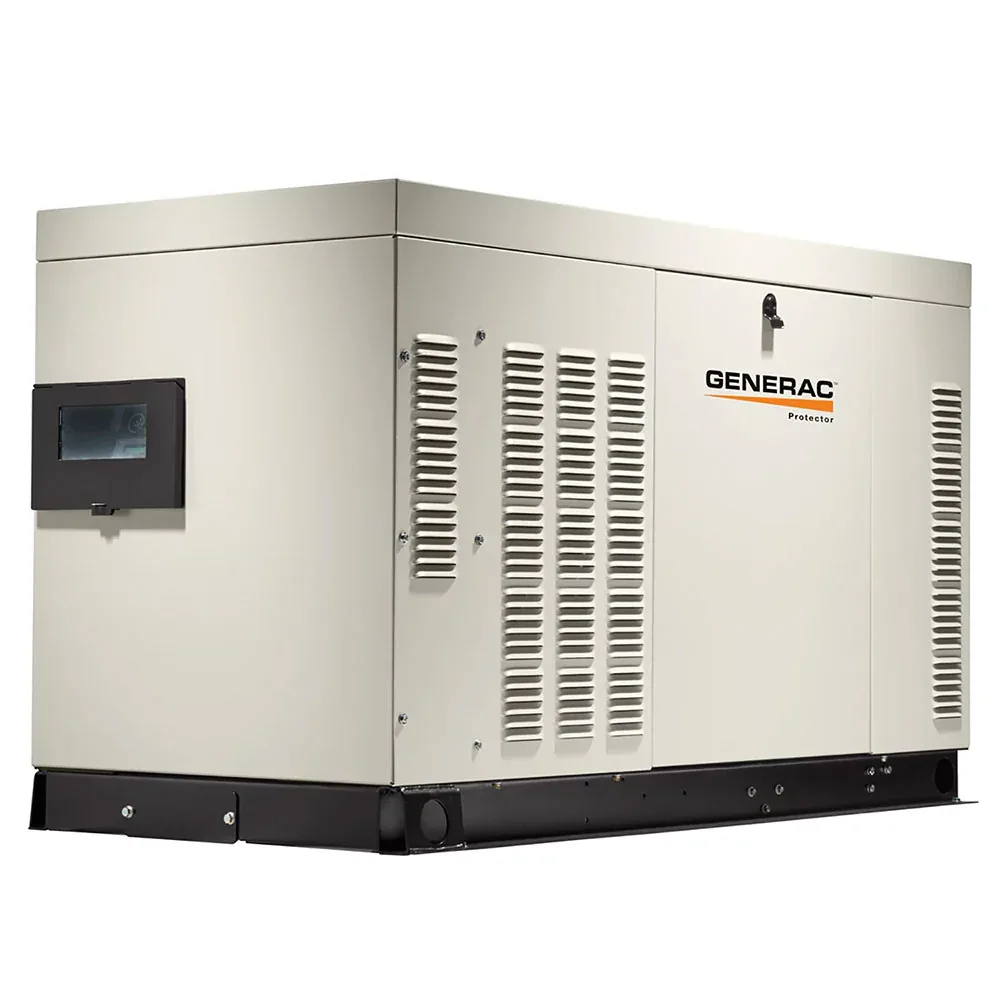

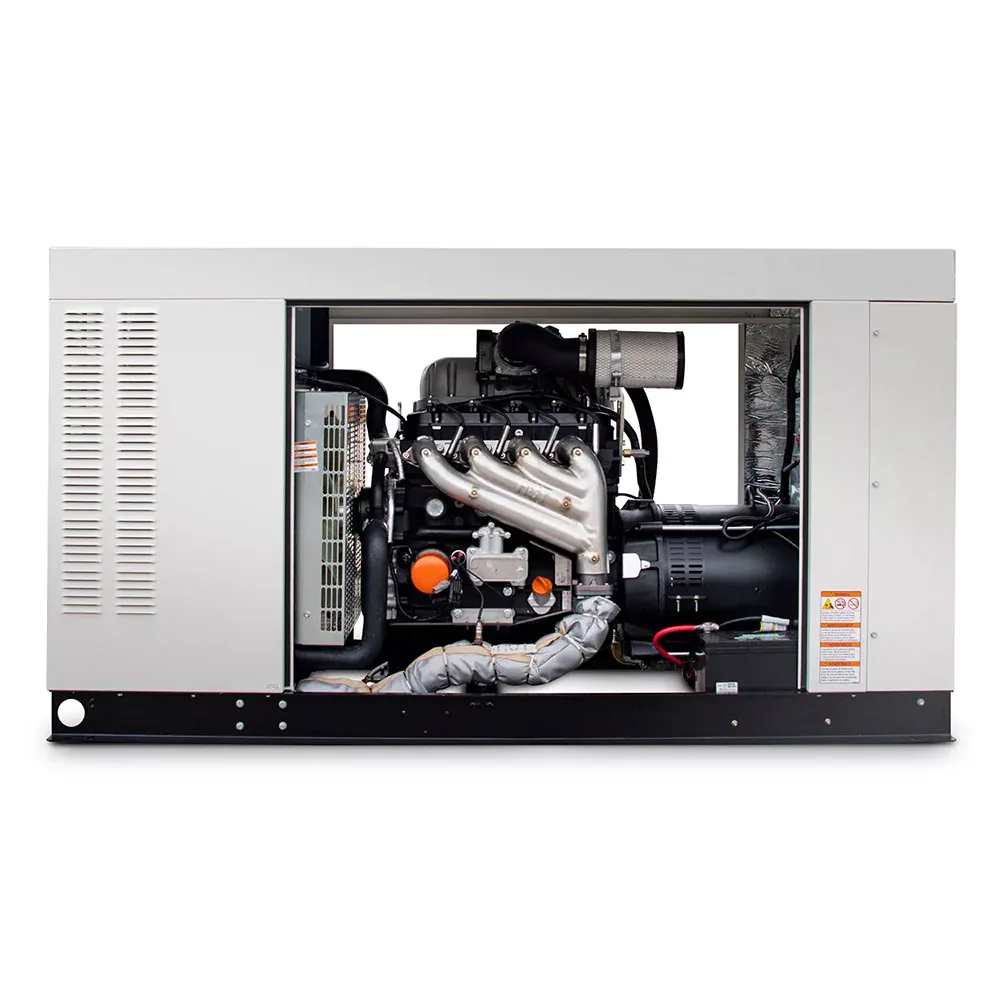

An engineered RhinoCoat aluminum housing provides impact resistance and weather defense in harsh outdoor environments. The 4.5L turbocharged four-stroke engine incorporates charge-air cooling, cast-iron cylinder liners, and full-pressure lubrication for severe continuous duty. Dry weight measures 2180 lbs across exterior dimensions of 95 inches long by 39 inches wide by 49.5 inches high. This Generac 80kW standby generator connects straight to municipal natural gas lines or on-site liquid propane tanks.

Key Features of Generac RG08045ANAX

Commercial enterprise managers buy Generac RG08045ANAX commercial power equipment to back up massive single-phase electrical services without dividing loads across smaller generators. Turbocharged induction provides rapid transient response to large electrical steps.

- 80kW single-phase continuous rating feeds commercial reach-in chillers and prep tables without voltage drop.
- 4.5L turbocharged liquid-cooled engine produces massive rotational torque to absorb sudden step loads.
- 1800 RPM low-speed operation reduces mechanical stress and acoustic emissions compared to high-speed alternators.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- RhinoCoat aluminum enclosure resists weather corrosion and jobsite abrasion in damp environments.
- Evolution controller displays line status, battery voltage, and automated exercise schedules for this RG08045ANAX backup system.
- Integrated oil cooler maintains proper lubricant viscosity under heavy continuous emergency operation.

Turbocharged Alternator Inductive Step Tolerances

Operating with a massive copper-wound alternator, this RG08045ANAX backup system produces stable 120V and 240V power under intense inductive demands. Sound levels measure 65 dB(A) during quiet exercise and 73 dB(A) at 23 feet under 50 percent continuous load. The automatic voltage regulator dampens voltage sags during multi-compressor startup events, keeping voltage fluctuations within narrow operational bands so that walk-in refrigeration units run without interruption.

Concrete Pad Setback Transfer Integration

Install this generator outdoors on a reinforced concrete pad maintaining at least 18 inches of clearance from building walls and 5 feet from doors, windows, and fresh air intakes. Connect fuel piping to a certified high-volume gas regulator delivering adequate water-column pressure. Route output conductors into an approved automatic transfer switch panel using heavy copper cables.

Hands Free Exercise Operational Boundaries

The Evolution digital controller automates weekly self-tests without human intervention, eliminating physical starting strain. This stationary emergency generator is NOT engineered for mobile vehicle mounting, enclosed indoor basements, or running on standard pump gasoline.

- Check engine oil level and coolant expansion reservoir every 24 hours of continuous operation.
- Drain crankcase oil and replace the spin-on oil filter every 100 runtime hours.
- Inspect the turbocharger intake duct and charge-air cooler hoses every 250 runtime hours.

Commercial Warranty Pallet Package Specifics

This Generac 80kW standby generator includes a 5-Year limited warranty covering manufacturing defects and alternator components. The heavy wooden shipping pallet holds the generator unit, flexible fuel connection line, installation base hardware, and complete technical documentation.
