Generac RG04845JNAX 48kW Standby Generator

Deliver twenty-four hour commercial freezer protection through the Generac RG04845JNAX Standby Generator, supplying 48kW continuous 120V and 240V three-phase delta power for supermarkets, meatpackers, and bakeries. Driven by a 4.5L liquid-cooled engine at 1800 RPM, it feeds high-amp distribution panels. It maintains cold-food safety through extended outages while handling high motor inrush loads without frequency drift.

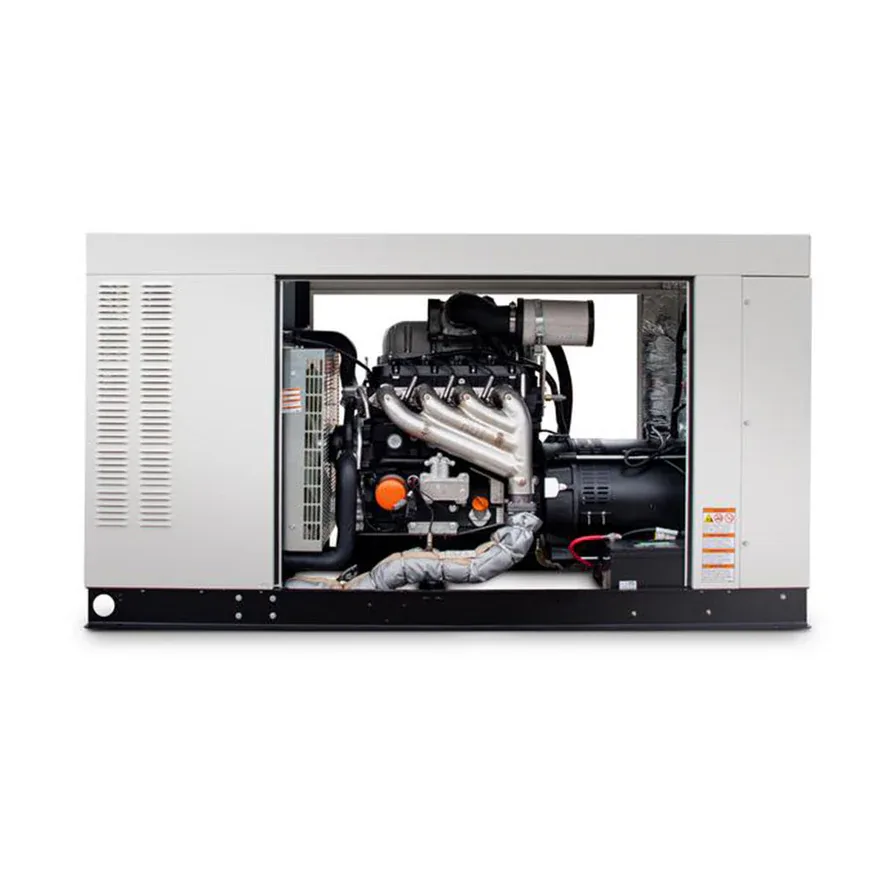

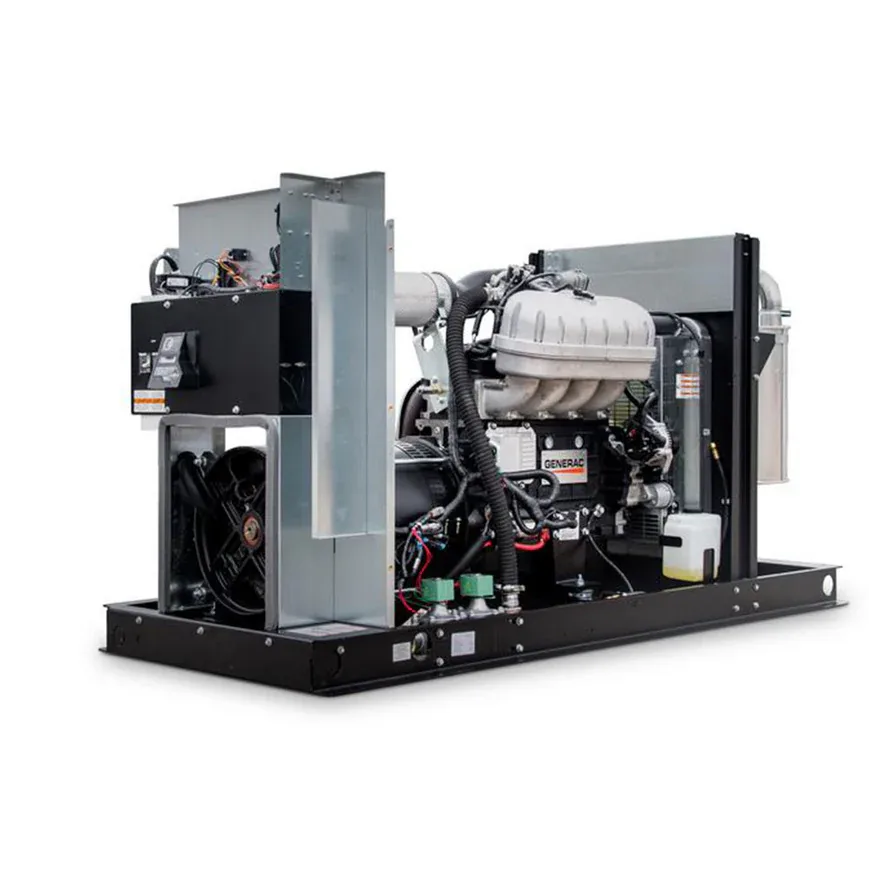

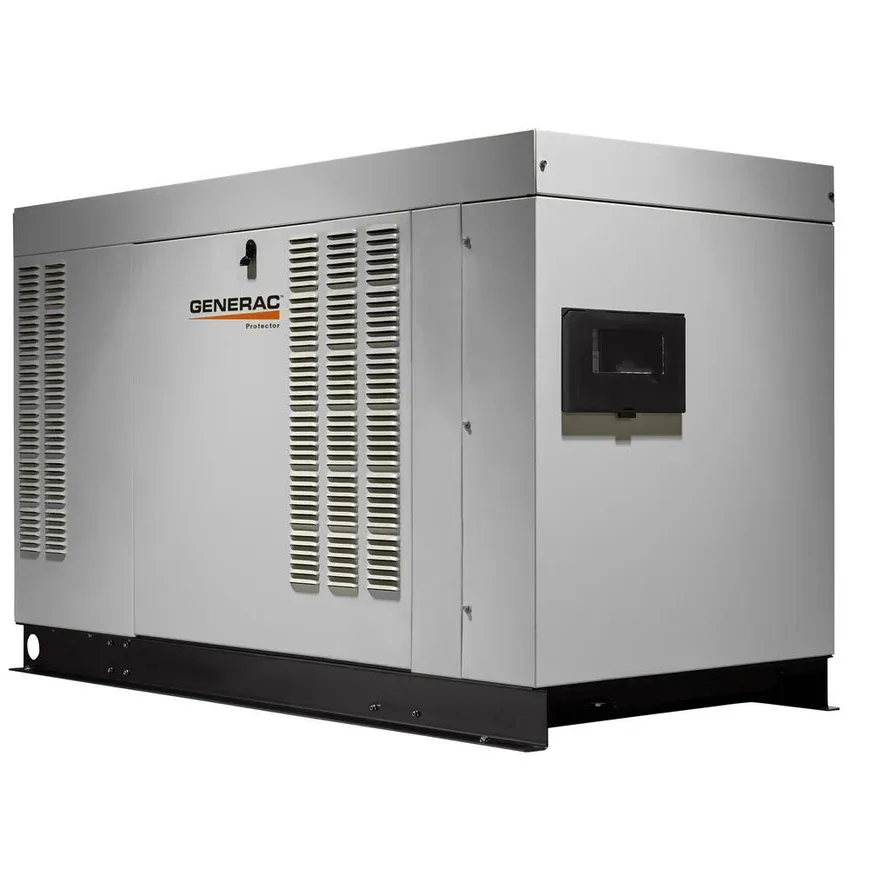

Corrosion-proof RhinoCoat aluminum panels form an acoustic barrier while shielding mechanical components from severe storm exposure. The 4.5L engine incorporates heavy-duty sleeve inserts, closed-loop liquid cooling, and full-pressure lubrication for prolonged operating life. Dry unit weight measures 1960 lbs within perimeter dimensions of 82.2 inches long by 35 inches wide by 46.1 inches high. This Generac delta-wound standby generator connects straight to continuous natural gas or bulk propane fuel tanks.

Key Features of Generac RG04845JNAX

Commercial refrigeration managers buy Generac RG04845JNAX commercial power equipment to run specialized 240V three-phase delta motor loads alongside single-phase kitchen branch circuits. Solid-state voltage excitation prevents stator overheating during deep motor starting spikes.

- 48kW continuous rating feeds commercial reach-in chillers and prep tables without voltage drop.
- 120/240V three-phase delta configuration powers high-draw 240V compressors with a high-leg utility match.
- 4.5L liquid-cooled engine operates at 1800 RPM to minimize mechanical wear and fuel burn.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- RhinoCoat aluminum enclosure resists weather corrosion and jobsite abrasion in damp environments.
- Evolution controller displays line status, battery voltage, and automated exercise schedules for this RG04845JNAX standby system.
- Electronic governor stabilizes rotational speed to stop voltage sags during motor start events.

Delta Alternator Inductive Step Tolerances

Operating through a specialized delta-wound copper alternator, this RG04845JNAX standby system produces stable 120V and 240V power under intense inductive demands. Sound levels measure 65 dB(A) during quiet exercise and 72 dB(A) at 23 feet under 50 percent continuous load. The automatic voltage regulator dampens voltage sags during multi-compressor startup events, keeping voltage fluctuations within narrow operational bands so that walk-in refrigeration units run without interruption.

High Leg Delta Transfer Pad Layout

Install this generator outdoors on a level concrete pad maintaining at least 18 inches of clearance from building walls and 5 feet from doors, windows, and fresh air intakes. Connect fuel piping to a certified high-volume gas regulator delivering adequate water-column pressure. Route phase conductors into an approved transfer switch, identifying the high-leg B-phase to prevent downstream circuit damage.

Automatic Exercise Scheduled Maintenance Procedures

An integrated Evolution digital controller manages automatic weekly exercise cycles, cutting operator physical tasks to zero. This stationary generator is NOT engineered for portable vehicle towing, unventilated indoor mechanical basements, or running on liquid gasoline fuel.

- Inspect engine oil level and clear enclosure louvers of windblown debris every 50 runtime hours.
- Replace crankcase motor oil and the spin-on oil filter every 100 runtime hours.
- Clean and regap spark plugs to factory specifications every 250 runtime hours.

Factory Warranty Pallet Item Manifest

This Generac delta-wound standby generator includes a 5-Year limited warranty covering manufacturing defects and alternator components. The heavy wooden shipping pallet holds the generator unit, flexible fuel connection line, installation base hardware, and complete technical documentation.
