Generac RG04845GNAX 48kW Standby Generator

Power commercial kitchen distribution boards with the Generac RG04845GNAX Standby Generator, providing 48kW continuous 120V and 208V three-phase power for restaurants, bakeries, and food processing plants. Powered by a 4.5L liquid-cooled engine running at 1800 RPM, it runs primary branch circuits. It prevents catastrophic inventory loss during prolonged municipal utility grid failures without requiring manual mid-storm refueling.

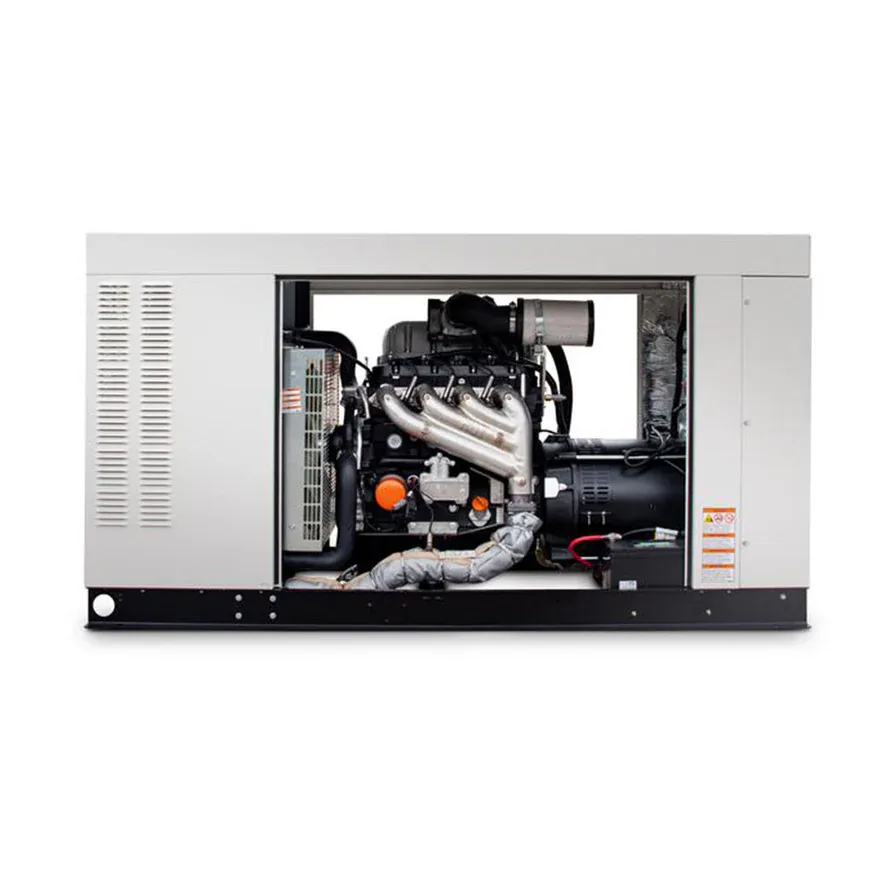

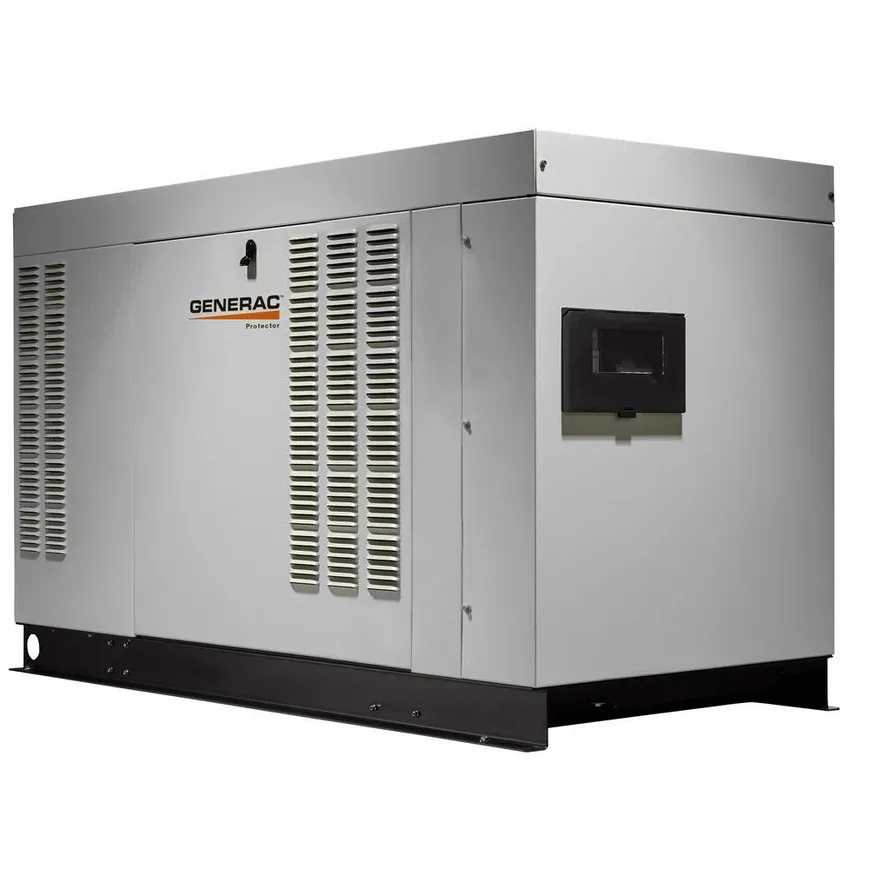

A rugged RhinoCoat aluminum enclosure shields internal components from high-velocity wind, driving rain, and corrosive atmospheres. The 4.5L industrial engine features an overhead valve configuration, automotive-style water pump, and full-flow spin-on oil filter. Dry weight measures 1960 lbs across exterior dimensions of 82.2 inches long by 35 inches wide by 46.1 inches high. This Generac 48kW three-phase plant operates on continuous municipal natural gas or on-site propane tanks.

Key Features of Generac RG04845GNAX

Food processing plant engineers buy Generac RG04845GNAX commercial power equipment to energize three-phase motor control centers during widespread utility blackouts. Advanced digital governing eliminates frequency hunting when large induction mixers and packaging lines cycle on.

- 48kW three-phase output feeds commercial reach-in chillers and prep tables without voltage drop.
- 120/208V three-phase layout interfaces directly with standard commercial distribution boards.
- 4.5L liquid-cooled engine delivers continuous high mechanical torque during intensive commercial workloads.
- RhinoCoat aluminum cabinet withstands coastal salt air and severe outdoor weather.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- Evolution controller tracks battery charge, line voltage, and automated exercise schedules on this RG04845GNAX commercial generator.
- Electronic isochronous governor holds line frequency within 0.25 percent under sudden load changes.

Three Phase Low Speed Electrical Dynamics

Delivering utility-grade electrical power, this RG04845GNAX commercial generator caps total harmonic distortion beneath 5 percent across all load stages. Acoustic output remains at 65 dB(A) during quiet test exercise and registers 72 dB(A) at 23 feet under full continuous load. Digital governor controls respond in milliseconds to large inductive motor starts, dampening line sags so that walk-in cooler compressors and exhaust fans start without tripping secondary branch breakers.

Subpanel Transfer Interlock Clearances Bounds

Position the unit outdoors on a concrete slab maintaining at least 18 inches of clearance from building walls and 5 feet from operable windows, doors, and vent openings. Route gas supply lines through an approved shutoff valve and sediment trap. Wire the power outputs to a dedicated double-throw transfer switch using certified copper conductors.

Hands Free Exercise Operational Boundaries

The Evolution digital controller automates weekly self-tests without human intervention, eliminating physical starting strain. This stationary emergency generator is NOT engineered for mobile vehicle mounting, enclosed indoor basements, or running on standard pump gasoline.

- Check engine lubrication level and clear enclosure louvers of leaves every 50 runtime hours.
- Drain engine crankcase oil and replace the spin-on oil filter every 100 runtime hours.
- Inspect fuel pipe connections for seal integrity every 250 runtime hours.

Commercial Warranty Carton Manifest Specifics

This Generac 48kW three-phase plant comes backed by a 5-Year limited commercial warranty covering the engine, alternator, and digital control system. The shipping pallet holds the generator unit, flexible fuel connection hose, enclosure keys, and certified factory testing reports.
