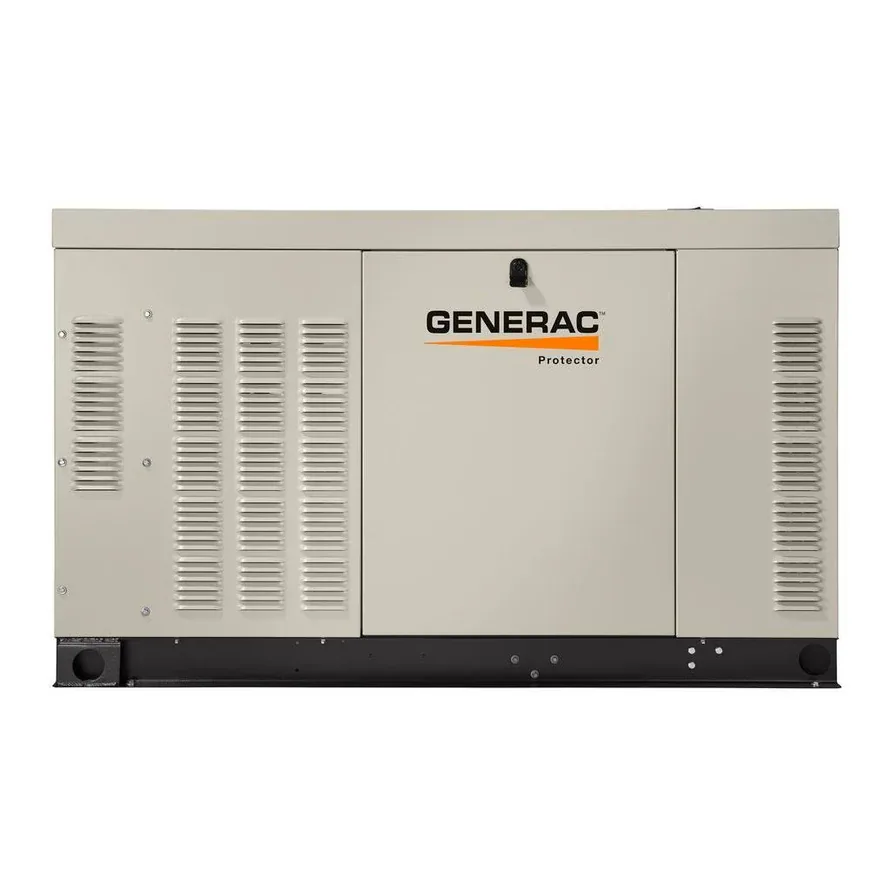

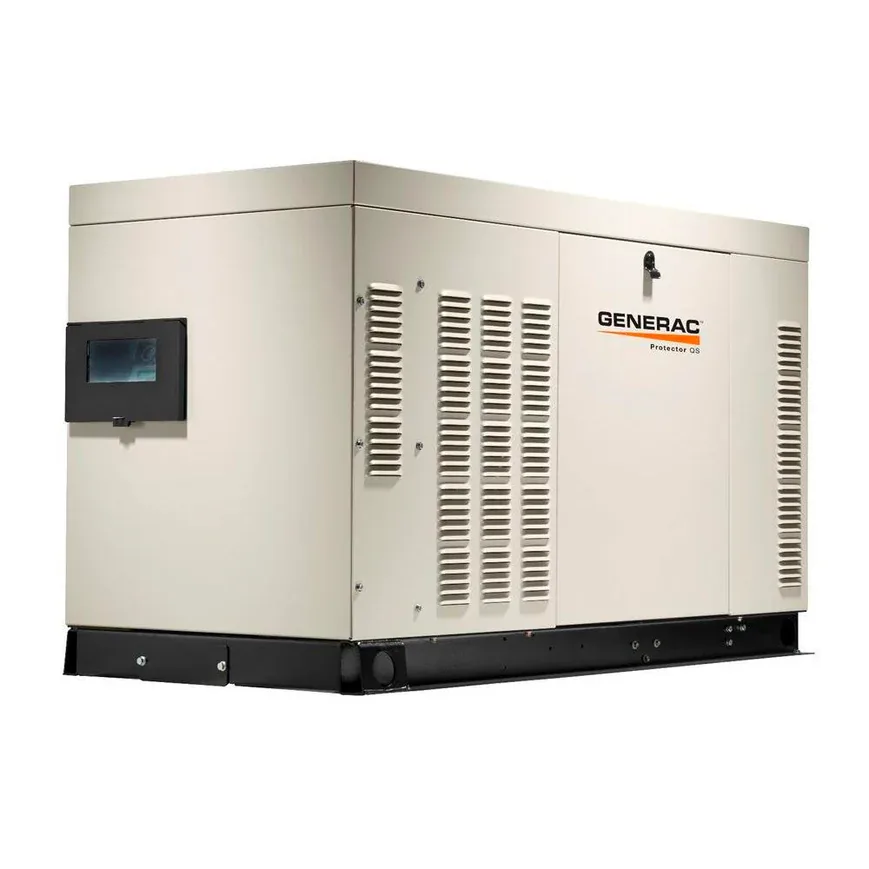

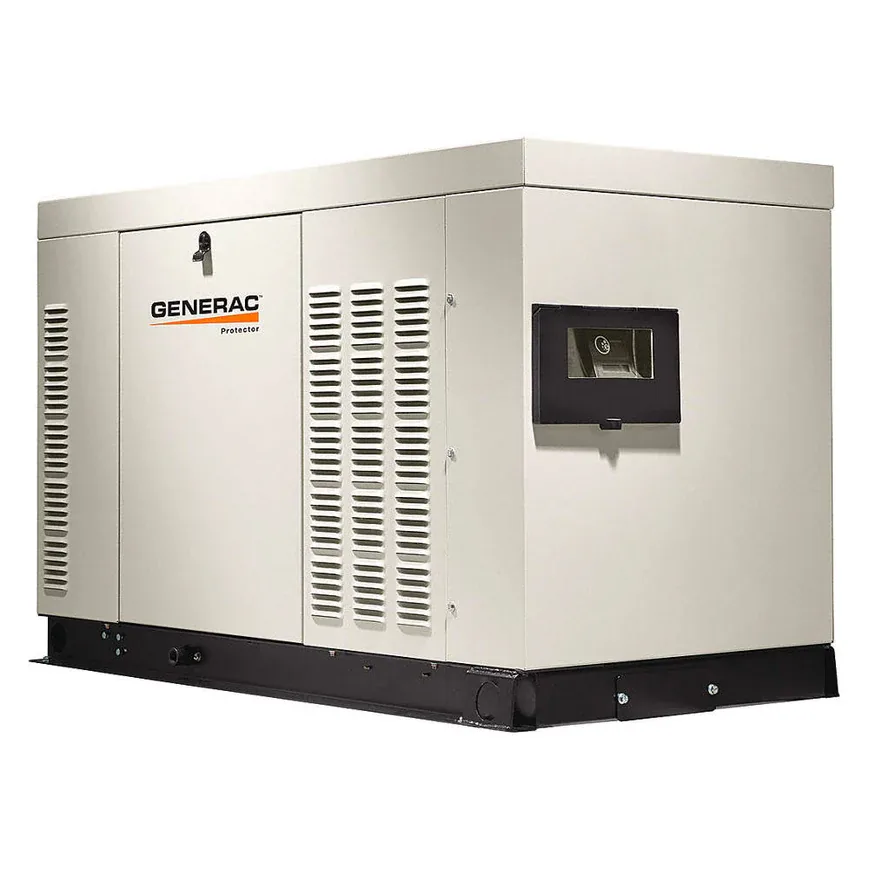

Generac RG03015GNAX 30kW Standby Generator

Sudden three-phase feeder dropouts paralyze commercial refrigeration, making the Generac RG03015GNAX Standby Generator essential for supermarkets, cold-chain distributors, and commercial commissaries. Running a liquid-cooled 1.5L four-cylinder engine, this unit delivers 30kW continuous 120V and 208V three-phase current. It sustains heavy walk-in compressor banks through municipal blackouts without phase imbalance or motor thermal trip-outs.

A durable RhinoCoat aluminum housing shields internal electrical assemblies from driving rain and airborne corrosion. The 1.5L liquid-cooled engine incorporates full-pressure lubrication, spin-on oil filtration, and cast-iron cylinder walls for extended service intervals under continuous load. Dry weight measures 930 lbs across external dimensions of 62.2 inches long by 29.5 inches wide by 36.3 inches high. This Generac three-phase generator connects straight to continuous natural gas or bulk propane fuel tanks.

Key Features of Generac RG03015GNAX

Commercial building operators buy Generac RG03015GNAX commercial power equipment to safeguard mission-critical three-phase infrastructure against utility grid collapse. Precision digital governor electronics prevent phase angle distortion under unbalanced branch circuit loading.

- 30kW continuous output energizes three-phase commercial refrigeration racks and air handlers simultaneously.
- 120/208V three-phase configuration matches standard commercial kitchen distribution panels without transformers.
- 1.5L liquid-cooled engine operates at 1800 RPM for prolonged mechanical lifespan and quiet running.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- RhinoCoat aluminum enclosure resists weather corrosion and jobsite abrasion in damp environments.
- Evolution controller displays line status, battery voltage, and automated exercise schedules for this RG03015GNAX standby system.
- Integrated block heater maintains optimal starting temperatures in harsh sub-zero winter climates.

Three Phase Alternator Voltage Regulation

Equipped with a revolving-field copper alternator, this RG03015GNAX standby system maintains consistent 60 Hz electrical output across shifting commercial loads. Sound levels measure 60 dB(A) during exercise and 71 dB(A) at 23 feet under full continuous load. Digital voltage regulation responds in milliseconds to large inductive motor starts, dampening line sags so that walk-in cooler compressors and exhaust fans start without tripping secondary branch breakers.

Commercial Setback Transfer Switch Fitment

Install the generator outside on an engineered concrete slab maintaining at least 18 inches of clearance from non-combustible walls and 5 feet from doors, windows, and ventilation louvers. Connect fuel piping through an approved flexible connector and manual shutoff valve. Wire the output leads into a three-phase automatic transfer switch using certified copper conductors.

Automated Controller Usability Servicing Steps

An integrated Evolution digital controller manages automatic weekly exercise cycles, cutting operator physical tasks to zero. This stationary generator is NOT engineered for portable vehicle towing, unventilated indoor mechanical basements, or running on liquid gasoline fuel.

- Inspect engine oil level and clear enclosure louvers of windblown debris every 50 runtime hours.
- Replace crankcase motor oil and the spin-on oil filter every 100 runtime hours.
- Clean and regap spark plugs to factory specifications every 250 runtime hours.

Equipment Warranty Pallet Package Manifest

This Generac three-phase generator carries a 5-Year limited warranty covering electrical modules and mechanical parts. The heavy wooden shipping pallet holds the generator unit, flexible fuel connection line, installation base hardware, and complete technical documentation.
