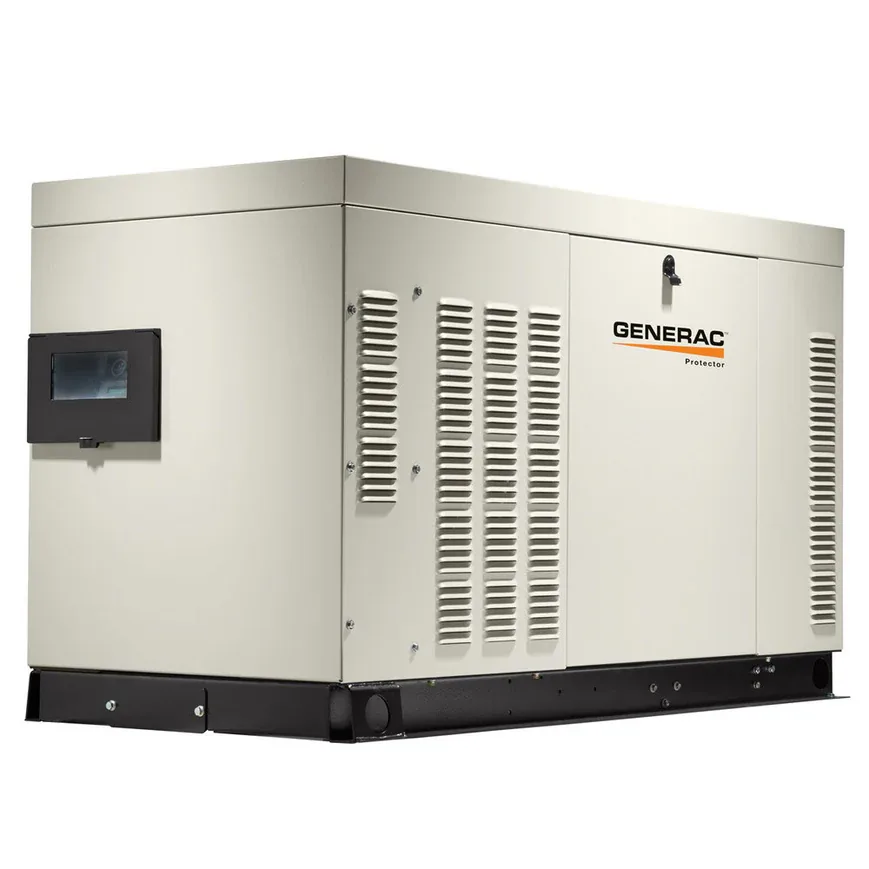

Generac RG02515ANAX 25kW Standby Generator

Eliminate utility grid failure risks using the Generac RG02515ANAX Standby Generator, delivering 25kW continuous single-phase 120V and 240V power for commercial kitchens and cold-storage facilities. Powered by a liquid-cooled 1.5L four-cylinder engine operating at 1800 RPM, it feeds essential panels. It maintains cold-food safety through extended outages while handling high motor inrush loads without frequency drift.

An engineered RhinoCoat aluminum housing provides impact resistance and weather defense in harsh outdoor environments. The 1.5L automotive-grade engine utilizes cast-iron cylinder liners, closed-loop liquid cooling, and full-pressure lubrication for extended service intervals under continuous prime draw. Dry weight measures 891 lbs across enclosure dimensions of 62.2 inches long by 29.5 inches wide by 36.3 inches high. This Generac 25kW commercial generator links straight into municipal natural gas lines or on-site liquid propane tanks.

Key Features of Generac RG02515ANAX

Facility operations managers buy Generac RG02515ANAX commercial power equipment to protect refrigeration inventory from catastrophic line collapses. An eighteen-hundred RPM liquid-cooled engine cuts mechanical wear while delivering stable excitation across deep load steps.

- 25kW continuous output drives commercial reach-in chillers and prep tables without voltage drop.
- 1.5L four-cylinder engine maintains continuous high torque output across prolonged emergency deployments.
- 1800 RPM low-speed operation reduces mechanical stress and acoustic emissions compared to high-speed alternators.
- RhinoCoat aluminum cabinet withstands coastal salt air and severe outdoor weather.
- Clean electrical output keeps harmonic distortion beneath 5 percent to safeguard microchip controls.
- Evolution controller tracks battery charge, line voltage, and automated exercise schedules on this RG02515ANAX commercial generator.
- Automatic transfer switch compatibility enables automated building changeover during utility dropouts.

Low Speed Engine Alternator Dynamics

Operating at an eighteen-hundred RPM shaft speed, this RG02515ANAX commercial generator maintains precise 60 Hz line frequency under fluctuating inductive loads. Acoustic emissions register at 59 dB(A) during low-speed exercise and 70 dB(A) at 23 feet under full continuous load. The electronic governor monitors shaft rotation, adjusting throttle position in milliseconds to counter sudden refrigeration compressor inrush spikes. This prevents severe voltage drops, keeping commercial freezers, exhaust blowers, and kitchen computers running without circuit interruptions.

Permanent Concrete Pad Placement Guidelines

Mount this generator on a reinforced concrete pad maintaining at least 18 inches of clearance from building exterior walls and 5 feet from operable windows, doors, and building air intakes. Connect the fuel port to a certified gas regulator delivering correct water-column pressure. Route output conductors into a dedicated automatic transfer switch panel using heavy-gauge copper wiring.

Automated Controller Usability Servicing Steps

The Evolution digital controller automates weekly exercise cycles without operator intervention, eliminating manual starting strain. This stationary emergency generator is NOT engineered for portable vehicle towing, enclosed indoor mechanical basements, or running on liquid gasoline fuel.

- Check coolant level and engine lubrication level every 24 hours of continuous service.
- Replace engine crankcase oil and the spin-on filter every 100 runtime hours.
- Inspect cooling radiator hoses and gas connection fittings every 250 runtime hours.

Factory Commercial Warranty Carton Contents

This Generac 25kW commercial generator includes a 5-Year limited commercial warranty covering the engine, alternator, and digital control modules. The crated container holds the standby generator unit, flexible fuel line, enclosure door keys, battery cables, and certified factory test documentation.
