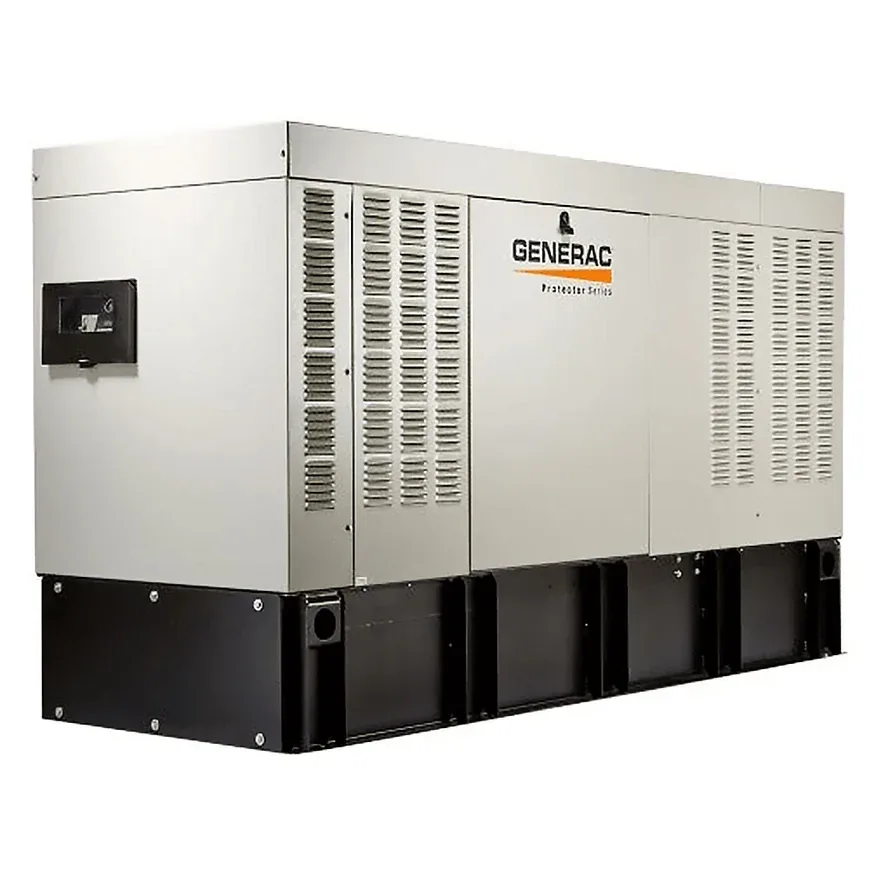

Generac RD02025ADAE 20kW Standby Generator – Diesel

Start multiple three-ton walk-in refrigeration units through the Generac RD02025ADAE Diesel Standby Generator, built for severe weather commercial resilience and uninterrupted power delivery. Delivering 20000 running watts and 20 kW prime continuous power at 120V and 240V 1-Phase 60Hz, this stationary diesel generator protects grocery inventory, commercial kitchen cooklines, and data networks during extended power outages.

A water-cooled 2.5L four-cylinder diesel engine running at a durable 1800 RPM drives the heavy-duty brushless alternator, which incorporates 100 percent copper windings for maximum thermal capacity. Stator assemblies utilize Class H insulation to resist thermal degradation under continuous peak loading. Incorporating a 34-gallon integrated sub-base fuel tank, the 1225-lb stationary chassis measures 62.2 inches long by 30.6 inches wide by 38.6 inches high.

Key Features of Generac RD02025ADAE

Facility engineers who buy Generac RD02025ADAE diesel standby generator systems obtain industrial commercial power equipment capable of handling massive electrical surges. The digital Evolution controller synchronizes with automatic transfer switches to restore commercial building power within seconds of grid failure.

- 20 kW continuous electrical capacity energizes entire restaurant kitchens, POS checkouts, and HVAC blowers at once.
- Low-speed 1800 RPM engine operation extends operational service life and lowers noise emissions on property lines.
- Evolution digital controller features an illuminated multi-lingual LCD screen displaying operating metrics and codes.
- Integrated 34-gallon double-wall base fuel tank delivers 20 hours of continuous electrical generation at half load.
- RD02025ADAE RhinoCoat corrosion protection prevents rust on galvannealed steel enclosures exposed to coastal air.
- Isochronous electronic governor maintains exact 60 Hz frequency across sudden electrical load additions.
- Class H stator insulation ensures alternator longevity during high-temperature summer emergency runs.
- Low-oil pressure and high-coolant temperature automatic shutdowns prevent catastrophic mechanical motor failure.

Waveform Integrity Industrial Decibel Ratings

Emitting 65 dB(A) at 23 feet inside its acoustic sound-attenuated enclosure, this stationary standby unit meets strict municipal property line noise codes. Total harmonic distortion remains under 5 percent at 60 Hz, holding line frequency steady within 0.15 Hz during sudden 15 kW step loads. The diesel engine burns 1.69 GPH at 50 percent load, providing high fuel efficiency across prolonged multi-day blackouts.

Pad Placement Automatic Switch Connections

Secure the machine to a structural concrete foundation at least 5 feet away from commercial windows, doors, and flammable exterior building walls. The generator output terminals connect to automatic transfer switch lugs using copper conductors, maintaining an unbonded floating neutral system grounded at the main building electrical service entrance.

Stationary Handling Preventative Maintenance Schedule

At 1225 lbs dry weight, maneuvering into position requires certified rigging straps and forklift equipment. This stationary diesel generator is not engineered for mobile food truck installations, indoor rooms lacking forced-draft radiator ventilation ducting, or three-phase 480V industrial equipment circuits.

- Check coolant level in recovery bottles and inspect oil before each shift.
- Replace engine lube oil, oil filter elements, and fuel filters every 200 runtime hours.
- Inspect air cleaner elements and measure battery specific gravity every 12 months.

Manufacturer Warranty Freight Delivery Manifest

Generac protects your investment with a 5-Year limited commercial warranty covering the 2.5L engine, alternator windings, and electronic controls. The crate package delivers the Generac RD02025ADAE generator, weather-protective enclosure, sub-base fuel tank, battery cables, owner manual, and factory startup inspection sheets.
