Generac 7171 Portable Generator

Seeking automated emergency backup for refrigeration banks? The Generac 7171 Portable Generator provides 10000W peak surge on propane and 9000W continuous output on natural gas for commercial businesses. Powered by a 460cc G-Force engine, it feeds critical circuit panels. It prevents expensive inventory loss during grid collapse without requiring fuel storage or manual engine cranking.

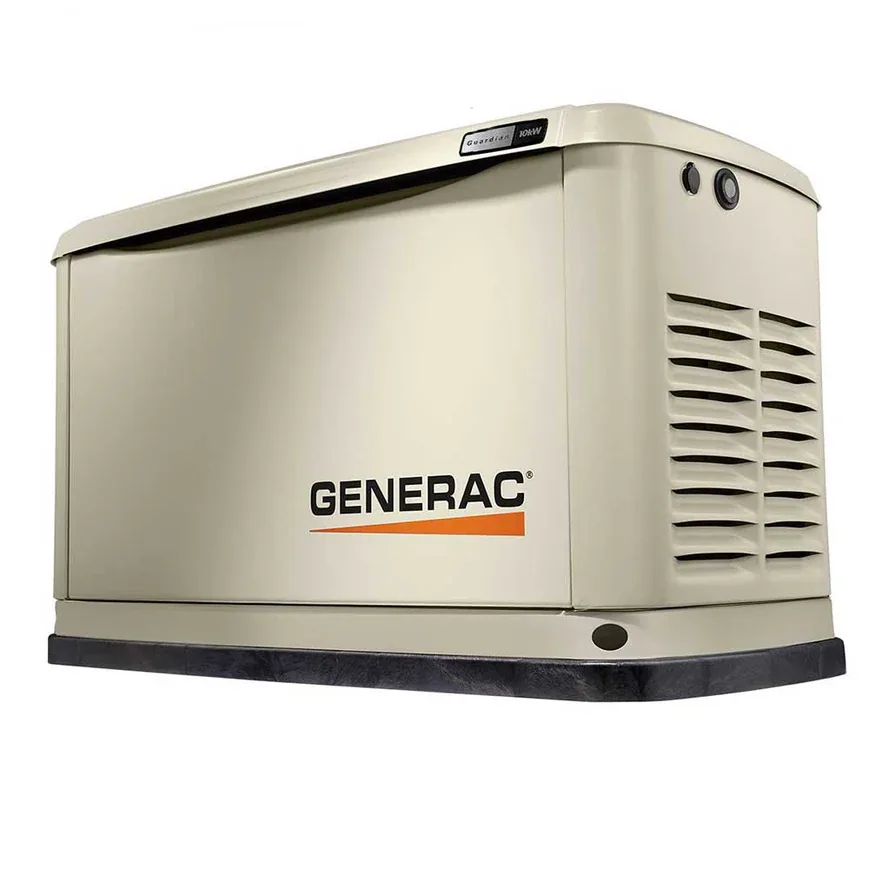

A weatherproof RhinoCoat aluminum housing shields the engine and alternator from corrosive coastal air and driving sleet. The 460cc G-Force engine features full-pressure oil lubrication, an external spin-on filter, and cast-iron cylinder walls for extended service intervals under load. Total unit weight measures 348 lbs within enclosure perimeter dimensions of 36 inches long by 27 inches wide by 25 inches high. This Generac automated backup generator operates on continuous municipal natural gas or on-site propane tanks.

Key Features of Generac 7171

Commercial building operators buy Generac 7171 commercial power equipment to safeguard walk-in freezers against prolonged municipal blackout conditions. Precision frequency governing protects electronic commercial cooking controls from damaging phase drift.

- 10000W propane capacity runs multiple commercial walk-in refrigeration units and water heaters simultaneously.
- 9000W natural gas output provides continuous emergency generation without fuel delivery delays.
- 460cc G-Force commercial OHV engine provides persistent mechanical torque through severe work shifts.
- True Power electrical architecture holds total harmonic distortion beneath 5 percent for clean power.
- RhinoCoat aluminum enclosure resists weather corrosion and jobsite abrasion in damp environments.

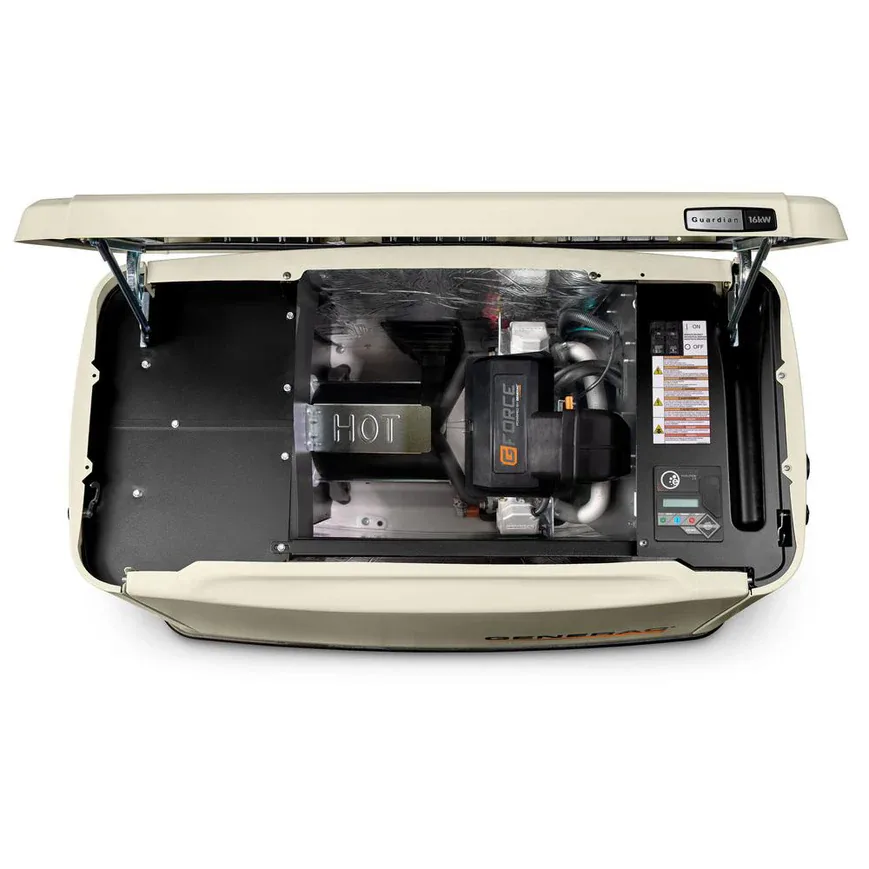

- Evolution controller tracks battery charge, line voltage, and automated exercise schedules.
- Mobile Link Wi-Fi connectivity enables remote equipment status tracking on mobile devices.

Alternator Regulation Inductive Load Performance

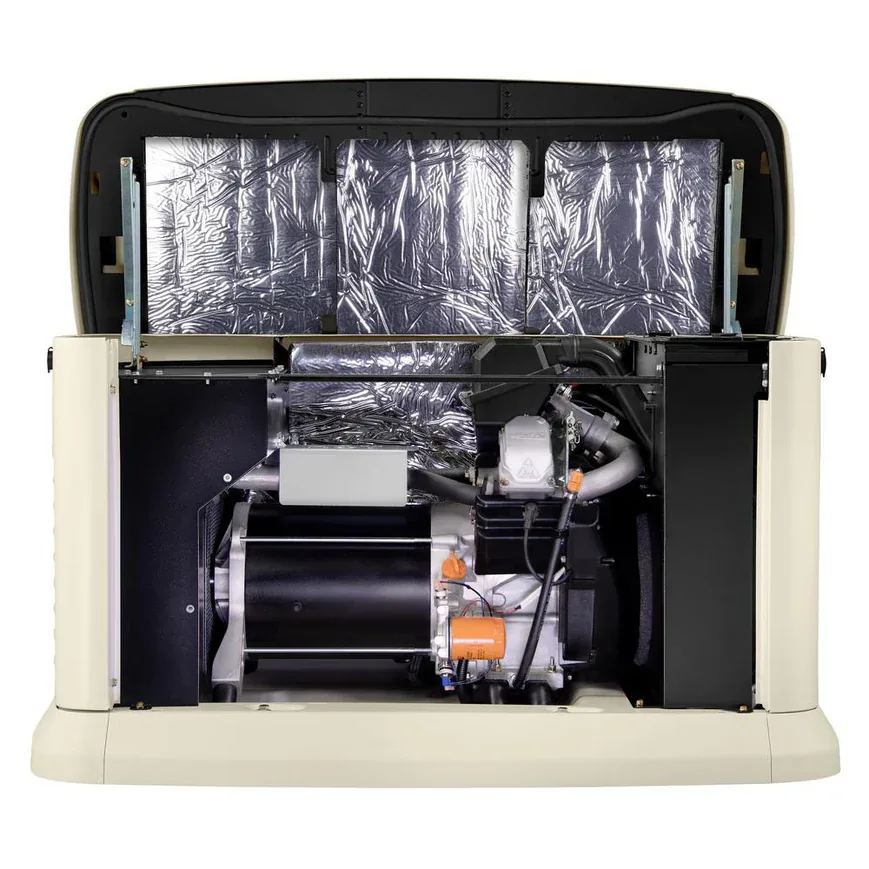

Equipped with a revolving-field copper alternator, this 7171 commercial generator supplies balanced 120V and 240V electricity to critical distribution circuits. Acoustic output remains at 63 dB(A) during weekly quiet exercise and measures 72 dB(A) at 23 feet under full continuous load. Automatic voltage regulation responds in milliseconds to inductive compressor startup spikes, suppressing voltage sags that can cause reach-in cooler motors to stall.

Site Pad Clearances Utility Piping Rules

Install the unit outdoors on an approved level base maintaining at least 18 inches of clearance from building walls and 5 feet from operable windows, doors, and vent openings. Route fuel lines through an approved shutoff valve and sediment trap. Wire the power outputs to a dedicated double-throw transfer switch using certified copper conductors.

Automated Controller Usability Servicing Steps

Automatic transfer electronics eliminate manual pull cords or key cranking, ensuring seamless hands-free emergency activation. This standby generator is NOT engineered for portable vehicle towing, unventilated indoor mechanical basements, or running on liquid gasoline fuel.

- Check oil level and clear exterior cooling slots of dust every 50 runtime hours.
- Replace crankcase motor oil and the spin-on oil filter every 100 runtime hours.
- Inspect spark plug electrode gap and wiring terminals every 250 runtime hours.

Commercial Warranty Pallet Package Specifics

This Generac automated backup generator carries a 5-Year limited warranty covering electrical modules and mechanical parts. The shipping pallet holds the generator unit, flexible fuel connection line, enclosure keys, oil funnel, and complete manufacturer service manuals.
