Generac 70432 22000W Peak Portable Generator

Secure total commercial kitchen continuity through the Generac 70432 Portable Generator, generating 22000W peak surge on propane and 19500W continuous output on natural gas for heavy commercial service. Running a 999cc G-Force engine, this unit feeds primary facility breaker panels. It eliminates costly food spoilage while handling simultaneous multi-compressor startup loads without voltage sag.

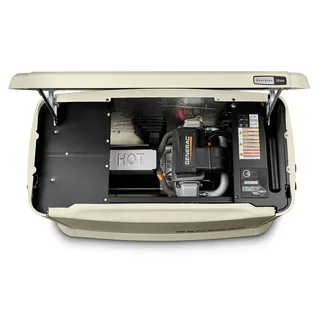

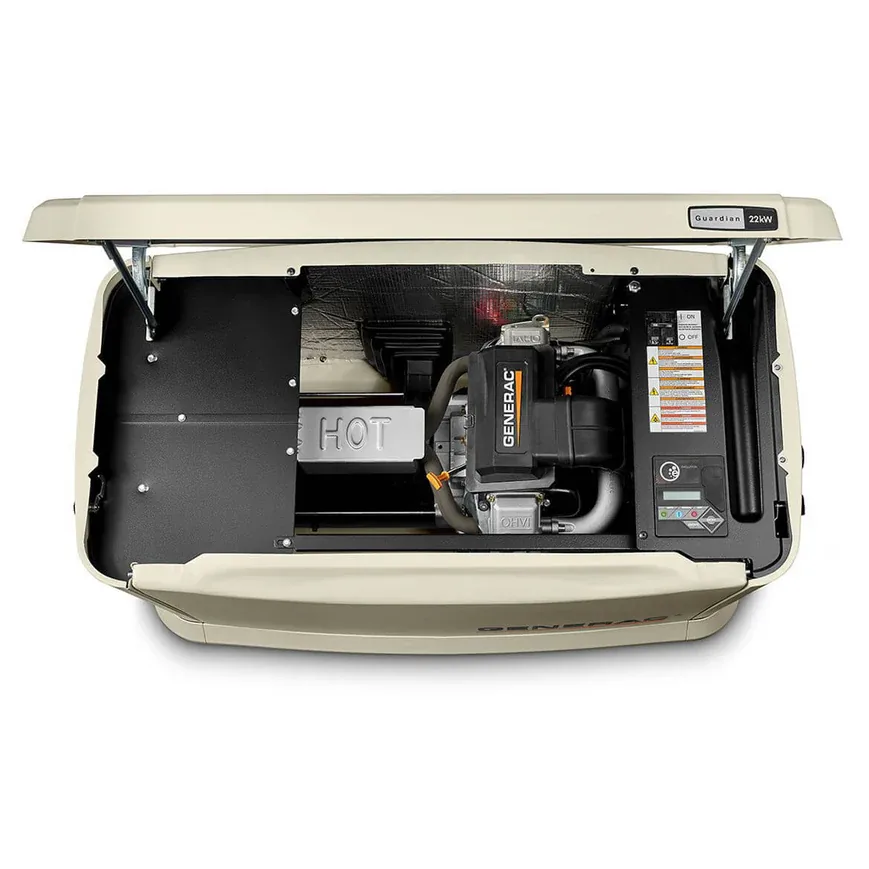

A durable aluminum RhinoCoat sound enclosure protects internal electrical assemblies against wind-driven rain and jobsite corrosion. The 999cc Generac G-Force dual-cylinder engine features automotive-grade pressure lubrication, spin-on oil filtration, and cast-iron cylinder walls for extended service intervals. Total unit weight measures 466 lbs within protective enclosure dimensions of 48 inches long by 25 inches wide by 29 inches high. This Generac heavy standby machine connects straight to continuous natural gas or propane sources.

Key Features of Generac 70432

Supermarket and warehouse managers buy Generac 70432 commercial power equipment to safeguard mission-critical cold storage facilities against regional grid failure. Precision digital governing holds engine speed steady under abrupt large-amperage electrical steps.

- 22000W propane continuous rating feeds commercial reach-in chillers and prep tables without voltage drop.
- 19500W natural gas output provides continuous emergency generation without fuel delivery delays.
- 999cc G-Force V-Twin engine delivers heavy commercial torque under continuous peak loads.
- True Power technology limits total harmonic distortion under 5 percent to protect kitchen POS displays.
- Mobile Link remote Wi-Fi monitoring reports generator status and operational alerts to smart devices.
- Corrosion-resistant aluminum cabinet withstands coastal salt air and severe outdoor weather.
- Electric push-button and automatic transfer capability ensure immediate emergency engagement.

Electrical Waveform True Power Performance

Delivering utility-grade electrical power, this 70432 commercial generator caps total harmonic distortion beneath 5 percent across all load stages. Acoustic output remains at 67 dB(A) during quiet test exercise and registers 72 dB(A) at 23 feet under full continuous load. Digital governor controls respond in milliseconds to large inductive motor starts, dampening line sags so that walk-in cooler compressors and exhaust fans start without tripping secondary branch breakers.

Concrete Pad Setback Transfer Integration

Position the unit outdoors on a compacted gravel or concrete pad maintaining at least 18 inches of clearance from building walls and 5 feet from operable windows, doors, and vent openings. Route gas supply lines through an approved shutoff valve and sediment trap. Wire the power outputs to a dedicated double-throw transfer switch using certified copper conductors.

Automatic Exercise Scheduled Maintenance Procedures

An integrated Evolution digital controller manages automatic weekly exercise cycles, cutting operator physical tasks to zero. This stationary generator is NOT engineered for portable vehicle towing, unventilated indoor mechanical basements, or running on liquid gasoline fuel.

- Inspect engine oil level and clear enclosure louvers of windblown debris every 50 runtime hours.
- Replace crankcase motor oil and the spin-on oil filter every 100 runtime hours.
- Clean and regap spark plugs to factory specifications every 250 runtime hours.

Verified Warranty Enclosure Package Inventory

This Generac heavy standby machine includes a 5-Year limited warranty covering mechanical and electrical components. The protective shipping pallet holds the generator unit, flexible fuel connection hose, composite mounting pad hardware, and verified factory inspection test certificates.
