Generac 70422 19500W Peak Portable Generator

Protect cold food distribution centers with the Generac 70422 Portable Generator, delivering 22000W peak surge on propane and 19500W continuous power on natural gas for heavy commercial backup. Powered by a 999cc G-Force V-Twin engine, it feeds whole-building electrical subpanels. It prevents catastrophic inventory loss during prolonged municipal utility grid failures without requiring manual mid-storm refueling.

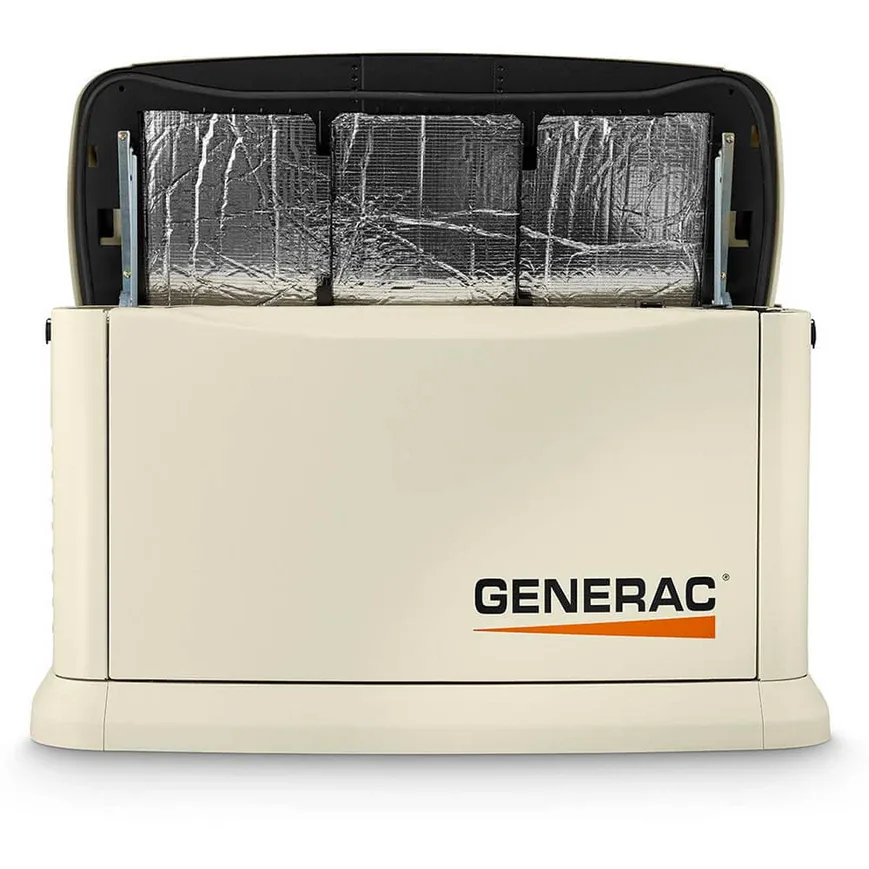

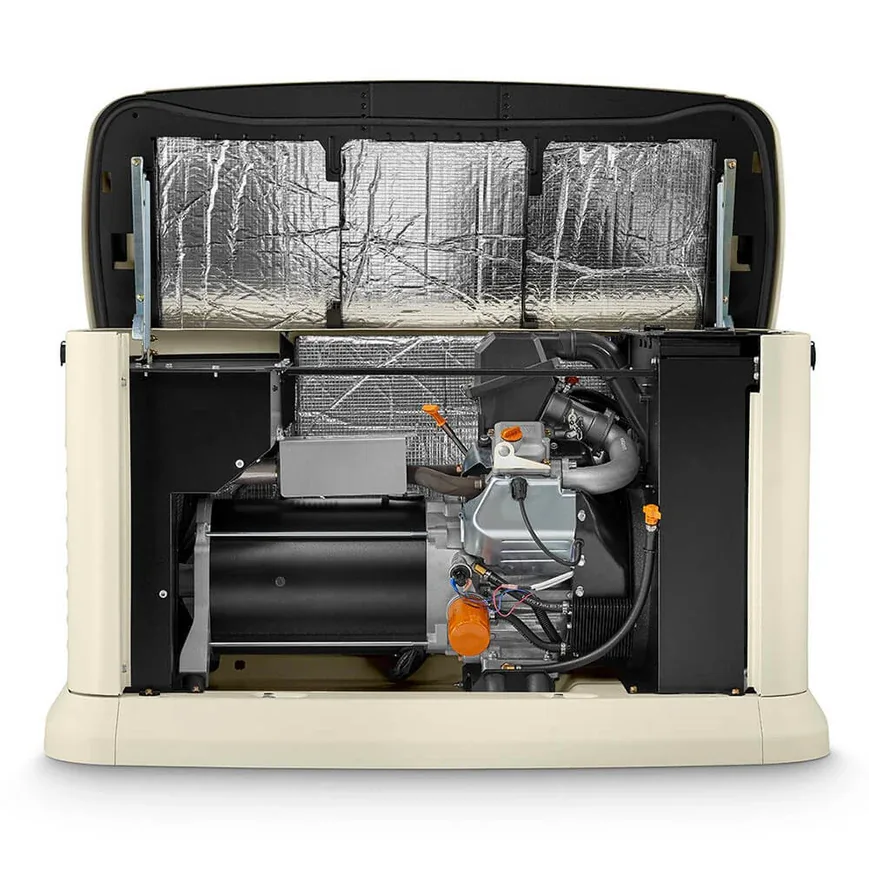

A corrosion-resistant aluminum RhinoCoat enclosure encases the powertrain, resisting salt air and harsh weather exposure. The 999cc Generac G-Force V-Twin engine features full-pressure lubrication, plateau-honed cast-iron cylinders, and dual-bearing alternators for high prime reliability. Unladen weight measures 466 lbs within protective enclosure dimensions of 48 inches long by 25 inches wide by 29 inches high. This Generac commercial standby generator connects straight to municipal natural gas lines or on-site liquid propane tanks.

Key Features of Generac 70422

Commercial building operators buy Generac 70422 commercial power equipment to establish automated emergency generation for whole-facility refrigeration banks. Advanced True Power electrical technology caps harmonic distortion to protect sensitive refrigeration controllers and computers.

- 22000W propane capacity runs multiple commercial walk-in refrigeration units and water heaters simultaneously.
- 19500W natural gas output provides continuous emergency generation without fuel delivery delays.
- 999cc G-Force V-Twin engine provides steady industrial mechanical torque through extended emergency operations.
- True Power technology limits total harmonic distortion under 5 percent to safeguard microchip controls.
- RhinoCoat aluminum enclosure resists weather corrosion and jobsite abrasion in damp environments.
- Mobile Link remote monitoring tracks unit status, battery charge, and scheduled maintenance alerts.
- Automatic transfer capability coordinates with external switches for hands-off blackout response.

Harmonic Distortion Motor Starting Dynamics

Operating through a revolving-field copper alternator, this 70422 emergency generator maintains strict 60 Hz electrical output with harmonic distortion suppressed below 5 percent total harmonic distortion. Operating sound measures 67 dB(A) at 23 feet under normal exercise and 72 dB(A) under full continuous load. Solid-state voltage regulation dampens inductive compressor startup spikes, allowing commercial walk-in freezers and ventilation blowers to activate without line sags.

Permanent Pad Mounting Setback Parameters

Install this generator outdoors on a level concrete or composite pad maintaining at least 18 inches of clearance from building walls and 5 feet from doors, windows, and fresh air intakes. Connect fuel piping to a certified high-volume gas regulator delivering adequate water-column pressure. Route output conductors into an approved automatic transfer switch panel using heavy copper cables.

Automated Usability Scheduled Servicing Protocols

The automated internal controller executes weekly self-test cycles without operator intervention, eliminating manual starting effort. This stationary power unit is NOT engineered for mobile trailer mounting, unventilated indoor mechanical rooms, or raw gasoline fuel sources.

- Check engine oil level and clear enclosure intake louvers every 24 hours of continuous operation.
- Change engine crankcase oil and replace the spin-on oil filter every 100 runtime hours.
- Inspect spark plug gaps and battery terminal connections every 250 runtime hours.

Factory Commercial Warranty Carton Contents

This Generac commercial standby generator includes a 5-Year limited commercial warranty covering the G-Force engine, alternator, and electronic controllers. The heavy wooden shipping pallet holds the generator unit, flexible fuel connection line, installation base hardware, and complete technical documentation.
