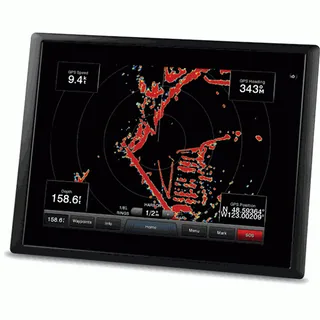

GARMIN GPSMAP 8015 MULTIFUNC TOUCH DISP SYS. W/ GPS ANT, CARD READER

Flexible Mounting Options

The 8015 MFD is compatible with the low-profile flush mount. For the ultimate in custom appearance, check the the exclusive flat-mount glass helm option.

What’s In the Box:

- GPSMAP 8015
- GPS 19x NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
- Garmin card reader
- Protective cover
- Flush mount gasket and hardware
- Power cable
- NMEA 0183 cable
- NMEA 2000 2 m backbone/drop cable
- NMEA 2000 10 m backbone cable
- NMEA 2000 power cable
- NMEA 2000 T-connector and terminator kit
- Manual case with documentation

Technical Specifications

Physical & Performance

- Unit dimensions, WxHxD: 15.9″ x 12.2″ x 3.7″ (40.2 x 30.6 x 9.4 cm)
- Display size, WxH: 12″ x 9″, 15″ diagonal (30.5 x 22.9 cm, 38.1 cm diagonal)
- Display resolution, WxH: 1024 x 768 pixels
- Display type: Touchscreen XGA display (anti-glare finish)
- Weight: 16.8 lb (7.62 kg)
- Waterproof: Yes (IPX7)
- Receiver: 10Hz High Sensitivity
- Antenna: External only
- Mounting options: Flat, or Flush

Power consumption

- Max power usage at 10 Vdc: 47 W
- Typical current draw at 12 Vdc: 2.5 A
- Max current draw at 12 Vdc: 4.7 A
