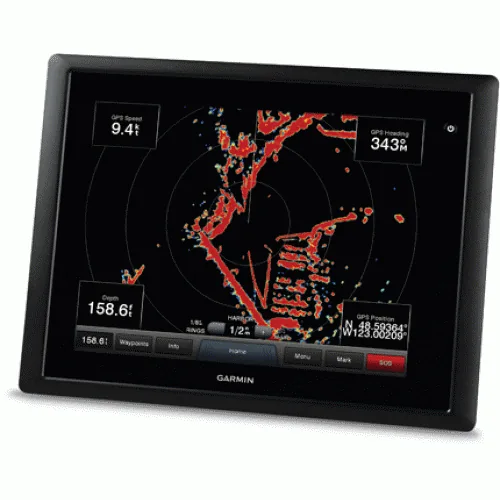

GARMIN GPSMAP 8012 MULTIFUNC TOUCH DISP SYS. W/ GPS ANT, CARD READER

Flexible Mounting Options

The 8012 MFD is compatible with the traditional bail mount, or you can step up to the low-profile flush mount. For the ultimate in custom appearance, check the the exclusive flat-mount glass helm option.

What’s In the Box:

- GPSMAP 8012
- Bail mount and knobs
- GPS 19x NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
- Garmin card reader
- Protective cover
- Flush mount gasket and hardware
- Power cable
- NMEA 0183 cable
- NMEA 2000 2 m backbone/drop cable
- NMEA 2000 10 m backbone cable
- NMEA 2000 power cable
- NMEA 2000 T-connector and terminator kit
- Manual case with documentation

Technical Specifications

Physical & Performance

- Unit dimensions, WxHxD: 13.1″ x 9.7″ x 3.8″ (33.2 x 24.7 x 9.6 cm)
- Display size, WxH: 9.7″ x 7.3″, 12.1″ diagonal (24.6 x 18.4 cm, 30.7 cm diagonal)
- Display resolution, WxH: 1024 x 768 pixels
- Display type: Touchscreen XGA display (anti-glare finish)
- Weight: 11.4 lb (5.2 kg)
- Waterproof: Yes (IPX7)
- Receiver: 10Hz High Sensitivity
- Antenna: External only
- Mounting options: Bail, Flat, or Flush

Power consumption

- Max power usage at 10 Vdc: 35 W
- Typical current draw at 12 Vdc: 1.6 A
- Max current draw at 12 Vdc: 3.5 A
