FURUNO NX300 NAVTEX RECEIVER

Furuno NX300 Navtex Receiver Standard Features:

- Digital Navtex Receiver- No paper required
- 518 kHz and 490 kHz reception- 200-400nm Range from Coast Station*
- 132 Message (Avg.)/28,000 Character Memory Storage Capacity
- Optimum Station Selection based upon position (*L/L Required)
- GPS NMEA 0183 L/L Position/SOG/COG/BTW Data Repeater
- RS-232 Data output to personal computer and printer
- H-Field Antenna for enhanced reception (No ground required)
- 3 Modes: Message Selection, Message Display, Nav Data Display
- 15 Message Categories- User Selectable/Customized
- Low power consumption and memory back-up with lithium battery
- NX300 is for recreational and non-compliant commercial use only- for IMO-SOLAS Navtex compliance, please refer to the NX700 and NX700P

Shipping Information

- 11 Lbs., 1 Carton

Power Requirements

- 12-24 VDC, 70-250mA (3W max)

Notes

- L/L Data Input Required
- *490 kHz=local language broadcast

Furuno NX300 Navtex Receiver

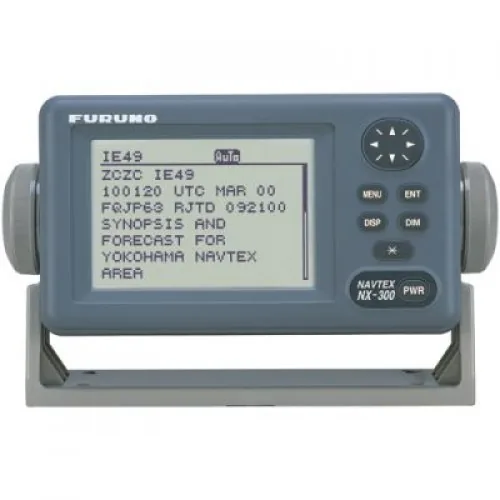

Furuno’s NX300 paperless Navtex receiver is the most economical way of monitoring navigational warnings, meteorological warnings, search and rescue information and other data for ships sailing within 200-400 n.m. of shore. Every incoming message is identified and new messages are read from the high-contrast 4.5″ LCD display, no paper is required. However, you can print out the message via a PC.

The NX300 consists of the compact, waterproof display and an H-Field Loop antenna. You can also use the NX300 as a nav repeater, by using its NMEA0183 port to connect it to your GPS or DGPS receiver.
