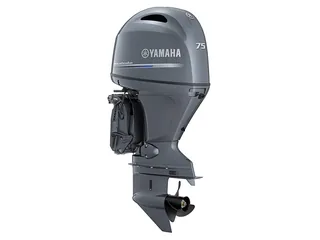

F75LB Yamaha 4 Stroke 75hp Long Shaft EFI OUTBOARD FOR SALE

The new F75 fills an important place within the Australian lineup, delivering the perfect power option for the huge number of Aussie-built boats rated to a maximum of 75 horsepower. Not only does this engine sit in a popular part of the market, but it also delivers many new advantages that make F75 quite exceptional.

The F75 is equipped with a four-cylinder 16-valve in-line SOHC 1.8L engine, with bigger displacement than the previous generation 1.5L engine it replaces. Most impressively the bigger F75 weighs close to 10kgs lighter than the old engine. This remarkable achievement means improved performance, and better balance when fitted on hulls in this category.

The F75 is based on the F115B’s four-cylinder power unit. The F75’s reduction in weight and improved compactness are achieved by adopting a single overhead camshaft design (SOHC), actuating four valves per cylinder. This unique valve train design was first seen in Yamaha’s award-winning F70A, one of the most popular engines in Australia. This design allows the F75 to achieve the weight savings of a single camshaft while still achieving the smooth and efficient performance only seen in 16 valves, a four-cylinder engine of this size.

This lightweight powerhead configuration, refined shaping of the combustion chamber, and lean fuel burn technology utilized at mid-range speeds allow the F75 to deliver exceptional fuel efficiency.

The new F75 delivers a 10% improvement in fuel economy compared with the previous generation engine. The F75 is not only extremely fuel efficient it’s also exceptionally smooth and quiet. Noise has been reduced through improved engine unit rigidity, muffler redesigns as well as the addition of an intake silencer.
The F75 is compatible with Yamaha’s comprehensive range of command link digital gauges, with options for both basic back-lit LCD and premium full-color displays. The engine is also NMEA2000 compatible allowing the F75 to share information with third-party multi-function displays, GPS, and fish finders.

The amount of engine development and innovation that can be found in Yamaha’s mid-range outboards is truly unique, and the new F75 strengthens Yamaha’s product offering across this range. Yamaha has not resorted to a “one size fits all” style engine platform to minimize production costs. Not only does Yamaha have a class-leading outboard motor in each horsepower category, but Yamaha also produces the most diverse range of engine platforms within these horsepower categories. This reflects Yamaha’s focus on delivering customer-driven innovation to the marine marketplace. Each engine platform has been tailor-made to satisfy the individual requirements of customers and their boats. Within Yamaha’s range, there is no need for Australian skippers to compromise when it comes to selecting a power option.

The all-new F75 neatly shares the same installation mounting holes as other outboards of similar sizes, making for an easy switch from a two-stroke, or other brands to the latest generation Yamaha four-stroke engine.

F75LB Yamaha 4 Stroke 75hp Long Shaft EFI OUTBOARD FOR SALE

Available in:

- F75LB – Electric Start, Tilt System – Electric Start, Transom height – Long
- Tiller – 6X4 Multi-Function Tiller Handle(contact for details)

(NOTE: The F75 is only available in long shaft length.)

General Features and highlights:

- Compact size and very lightweight – 162kg(long shaft & 166kg(extra–long shaft)
- Massive 1832cc displacement for just a 75hp
- Highly efficient 16 valves Single Over Head Camshaft (SOHC) system
- ECU is controlled with a knock sensor which gives efficient performance
- High Output Alternator – a massive 35amp, generating 28amp at 1000rpm
- Variable Trolling Speed (set speeds between 550rmp to 1000rpm)
- Compatible with Command Link Digital gauges, including the full-color option
- 5mm Offset Crankshaft for improved efficiency and performance
- 60mm Throttle and Intake Silencer, improve performance and reduce noise
- Labyrinth Exhaust System, muffles exhaust noise and improves efficiency

Price includes:

- Outboard
- Water test
- Free prop exchange

Price does not include:

- Yamaha STS Alloy Prop
- Yamaha 703 Side Control Box and Yamaha looms/wiring
- 2x Yamaha multi-function digital gauges(Tacho and Speedo, Fuel level, Battery level, Trim, Hours, Warnings, etc)
- Battery, Steering, Fuel filter, Fuel tank
- Fitting(dependent on boat configuration – as a guide $500 to $750 for a single outboard of this size)
- Trim limiter(if required)

F75LB Yamaha 4 Stroke 75hp Long Shaft EFI OUTBOARD FOR SALE

SPECIFICATIONS

Engine Type 4-stroke, 4-cylinder, 16-valves, SOHC

Displacement 1832cc

Bore x Stroke 81.0 x 88.9mm

Recommended Max RPM 6100RPM

Lubrication System Wet-sump

Fuel Management EFI

Ignition TCI Microcomputer

Starter System Electric

Alternator Output 35 Amp

Trim & Tilt Method Power trim & tilt

Digital Gauges Standard

Digital Network Gauges with Fuel Management Optional

Gear Ratio 2.15: 1

Engine Oil Capacity 3.2L / 3.0L with/without oil filter exchange

Fuel Type Regular Unleaded

Scavenging Single Over Head Camshaft

Previous model/code New model!

DIMENSIONS

Transom Length

- F75LB: 516 mm (20.3 in)

Weight

- F75LB: 162 kg

PRICE :

PRICE BASE :

BRAND : Yamaha

MODEL : F75LB

LENGTH : 0.00 Feet

YEAR : 2022

CATEGORY : Boat Engines and Outboards

HULL TYPE :

HULL STYLE :

POWER TYPE :

TYPE OF SALES : Dealer

ENGINE MAKE :

ENGINE TYPE :

CONDITION : New

STATE : Queensland

SUBURB : BURPENGARY

REGISTRATION NUMBER : –
